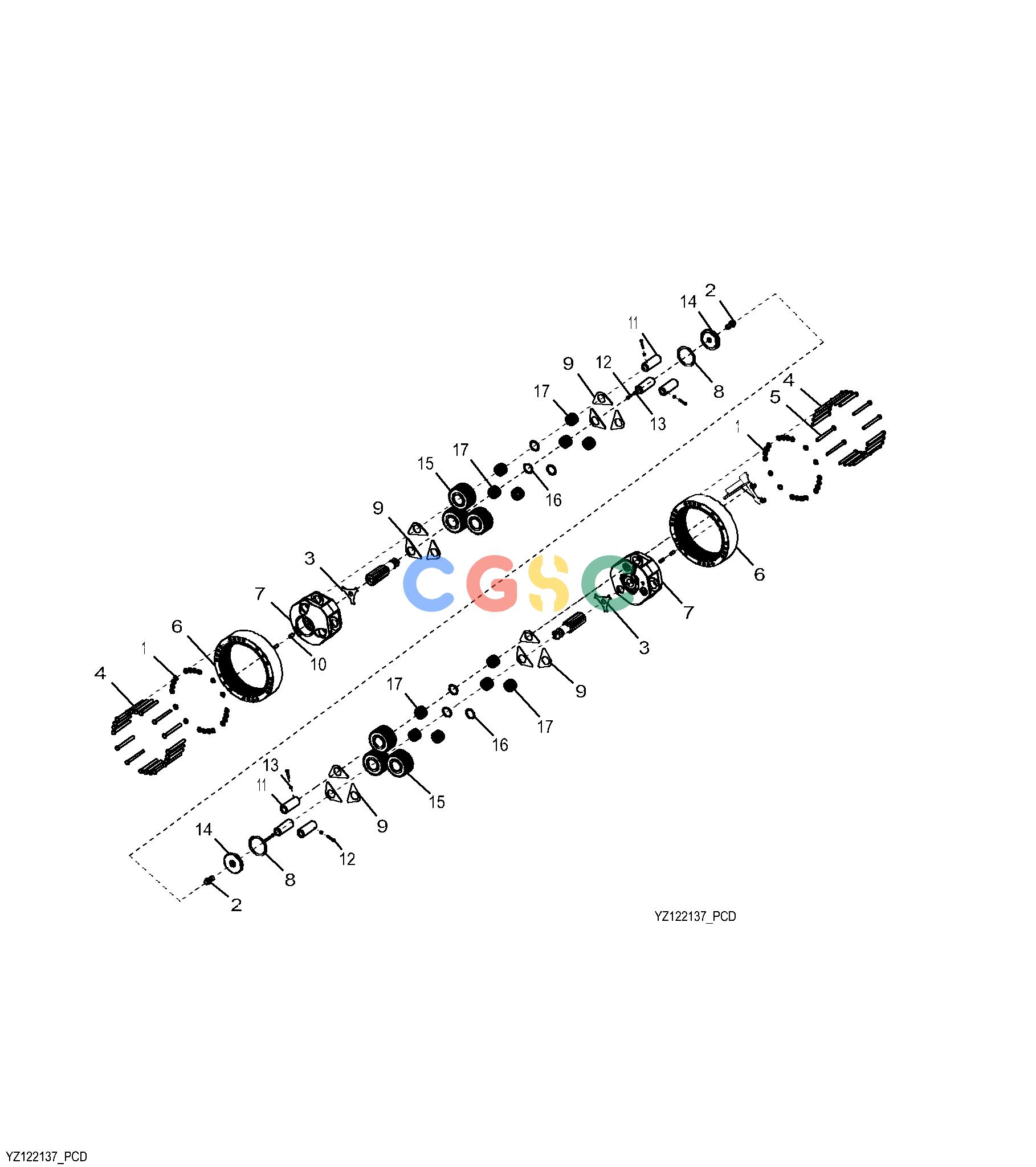

约翰迪尔零件查询643K - FELLER BUNCHER YZ122137 Planetary AssemblyEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
847 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R135543
|
[40] |
Washer
|
|
| 2. |
YZ120470
|
[2] |
Screw
|
|
| 3. |
YZ121121
|
[2] |
Lock Plate
|
|
| 4. |
19M8677
|
[38] |
Cap Screw
|
|
| 5. |
19M8190
|
[2] |
Cap Screw
|
|
| 6. |
R165474
|
[2] |
Ring Gear
|
|
| 7. |
YZ122478
|
[1] |
Planet Pinion Carrier
|
|
| 8. |
R63237
|
[1] |
Shim
|
|
| 9. |
R112079
|
[6] |
Thrust Washer
|
|
| 9. |
YZ122480
|
[6] |
Thrust Washer
|
|
| 10. |
R54380
|
[4] |
Dowel Pin
|
|
| 11. |
R134086
|
[3] |
Shaft
|
|
| 11. |
YZ121877
|
[3] |
Shaft
|
|
| 12. |
R182695
|
[3] |
Bolt
|
|
| 13. |
14M7452
|
[3] |
Lock Nut
|
|
| 14. |
R165987
|
[1] |
Spacer
|
|
| 15. |
YZ121238
|
[1] |
Pinion
|
|
| 16. |
R71929
|
[1] |
Spacer
|
|
| 17. |
R63575
|
[48] |
Needle Roller
|
|
