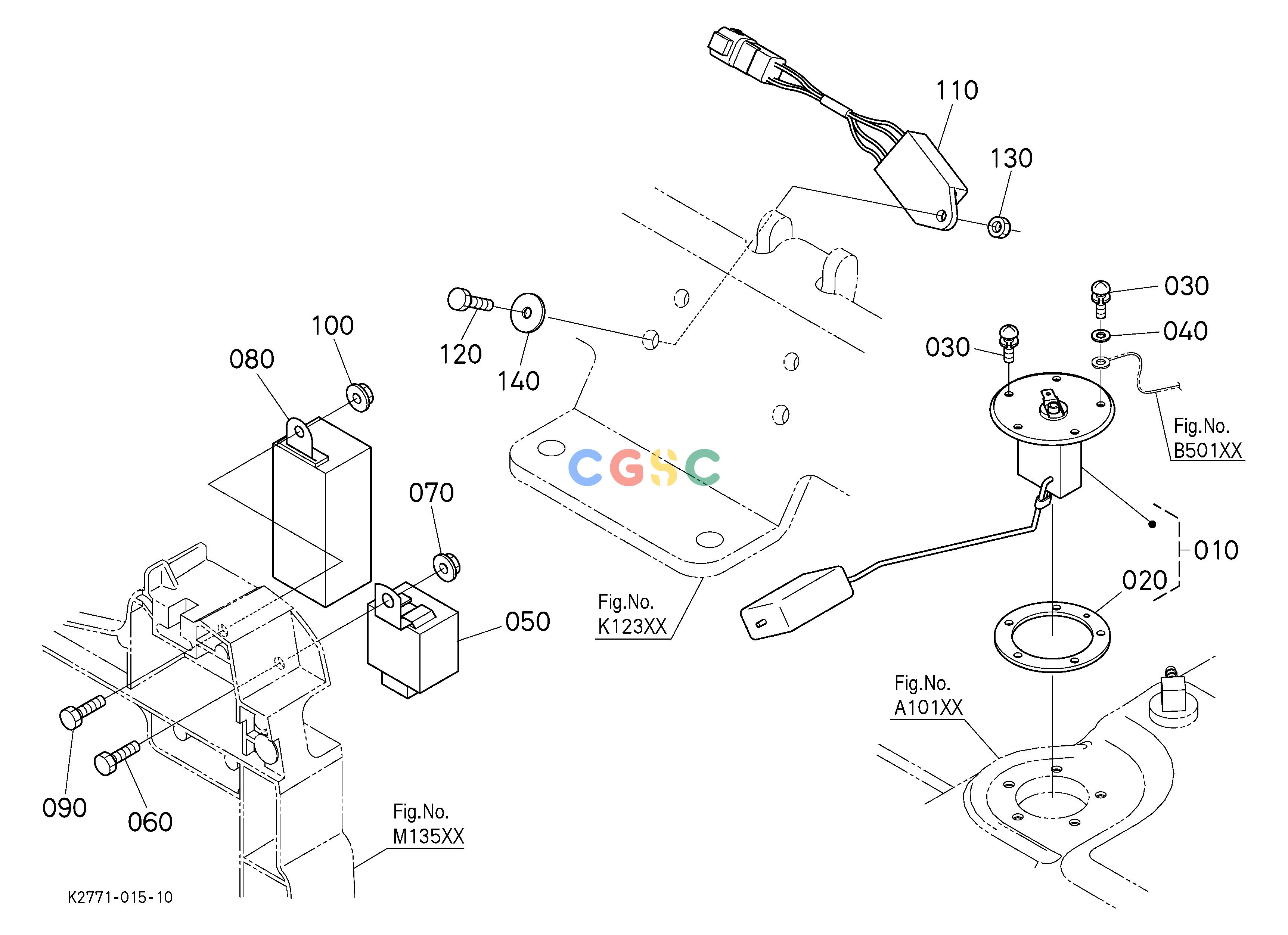

久保田零件查询B21300 SENSOR AND RELAY ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258161370
|
[1] |
SENSOR,FUEL
|
0.2750(lbs); 0.125
|
| 020. |
6A10054790
|
[1] |
SEAL(FUEL SENSOR)
|
0.0220(lbs); 0.010
|
| 030. |
0302450516
|
[5] |
SCREW,SEMS(PAN HEAD)
|
0.0088(lbs); 0.004
|
| 040. |
0401350050
|
[1] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 050. |
T007031410
|
[1] |
TIMER,KEY STOP
|
0.1430(lbs); 0.065
|
| 060. |
0105350625
|
[1] |
HEX.BOLT
|
0.0154(lbs); 0.007
|
| 070. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 080. |
3F24075430
|
[1] |
UNIT,FLASHER
|
0.1320(lbs); 0.060
|
| 090. |
0105350625
|
[1] |
HEX.BOLT
|
0.0154(lbs); 0.007
|
| 100. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 110. |
TD06030500
|
[1] |
TIMER,OPC
|
0.0880(lbs); 0.040
|
| 120. |
0105350625
|
[1] |
HEX.BOLT
|
0.0154(lbs); 0.007
|
| 130. |
0255250060
|
[1] |
NUT,LOCKING
|
0.0044(lbs); 0.002
|
| 140. |
0401550060
|
[1] |
WASHER,PLAIN
|
0.0132(lbs); 0.006
|
