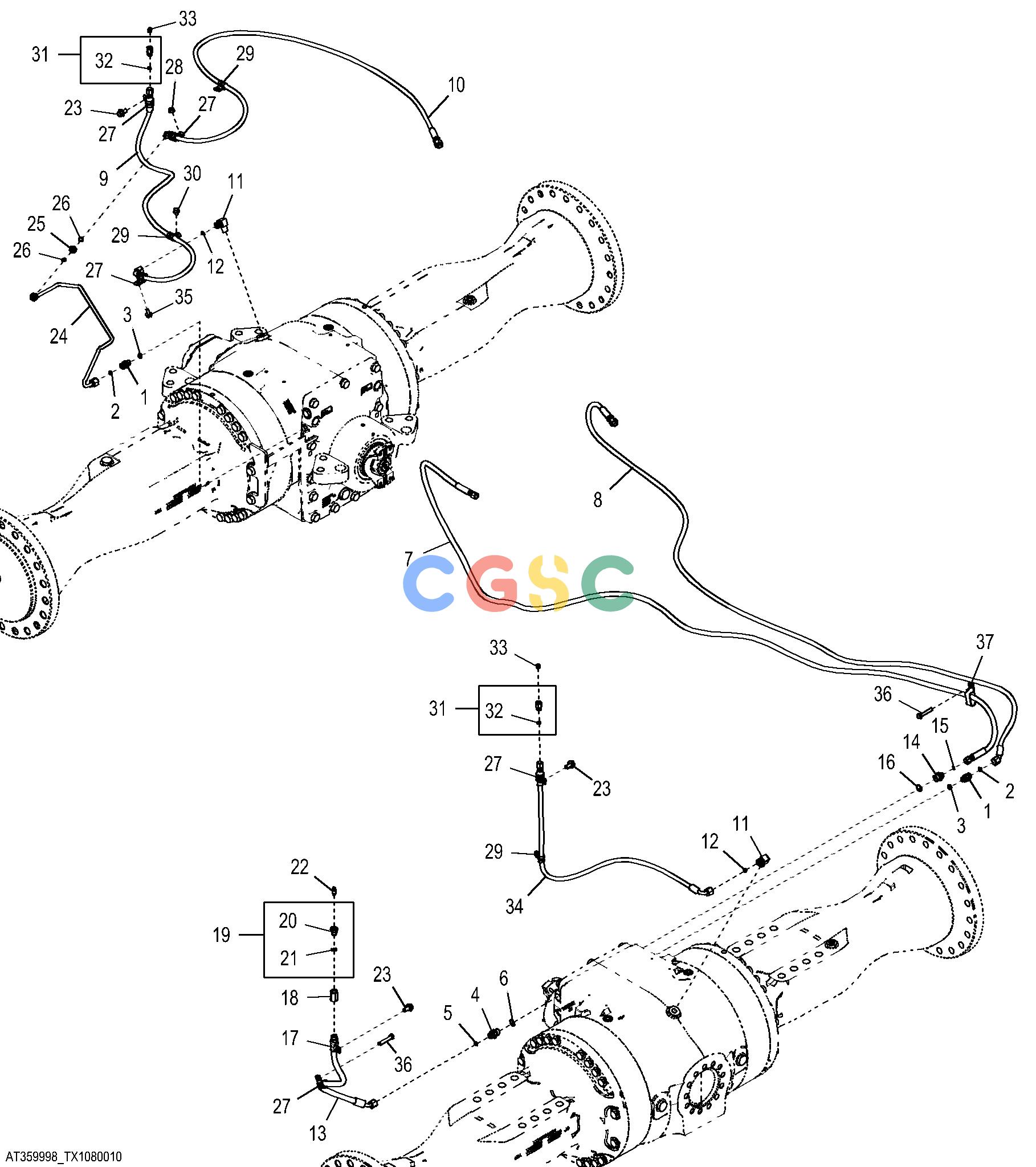

约翰迪尔零件查询643K - FELLER BUNCHER Axle PlumbingEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
396 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
38H1160
|
[1] |
Adapter Fitting
|
|
| 2. |
T77613
|
[1] |
O-Ring
|
|
| 3. |
R26448
|
[1] |
O-Ring
|
|
| 4. |
38H1171
|
[1] |
Adapter Fitting
|
|
| 5. |
T77613
|
[1] |
O-Ring
|
|
| 6. |
R26375
|
[1] |
O-Ring
|
|
| 7. |
AT360994
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 8. |
AT360953
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 9. |
AT367164
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 10. |
AT367165
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 11. |
R87907
|
[1] |
Elbow Fitting
|
|
| 12. |
T77613
|
[1] |
O-Ring
|
|
| 13. |
AT361137
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 14. |
38H1445
|
[1] |
Adapter Fitting
|
|
| 15. |
T77814
|
[1] |
O-Ring
|
|
| 16. |
R26375
|
[1] |
O-Ring
|
|
| 17. |
T74416
|
[1] |
Clamp
|
|
| 18. |
T187589
|
[1] |
Elbow Fitting
|
|
| 19. |
AT351099
|
[1] |
Adapter Fitting
|
|
| 20. |
R106789
|
[1] |
Pipe Bushing
|
|
| 21. |
R26448
|
[1] |
O-Ring
|
|
| 22. |
R21612
|
[1] |
Bleed Valve
|
|
| 23. |
19M7784
|
[3] |
Screw
|
|
| 24. |
AT375793
|
[1] |
Oil Line
|
|
| 25. |
38H1278
|
[1] |
Union Fitting
|
|
| 26. |
T77613
|
[2] |
O-Ring
|
|
| 27. |
T76252
|
[5] |
Clamp
|
|
| 28. |
14M7298
|
[1] |
Flange Nut
|
|
| 29. |
T74412
|
[3] |
Clamp
|
|
| 30. |
19M7864
|
[1] |
Screw
|
|
| 31. |
AT354490
|
[2] |
Adapter Fitting
|
|
| 32. |
T77814
|
[1] |
O-Ring
|
|
| 33. |
E14814
|
[2] |
Pressure Relief Fitting
|
|
| 34. |
AT368655
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 35. |
19M7866
|
[1] |
Screw
|
|
| 36. |
19H3065
|
[2] |
Cap Screw
|
|
| 37. |
R56171
|
[1] |
Clip
|
|
