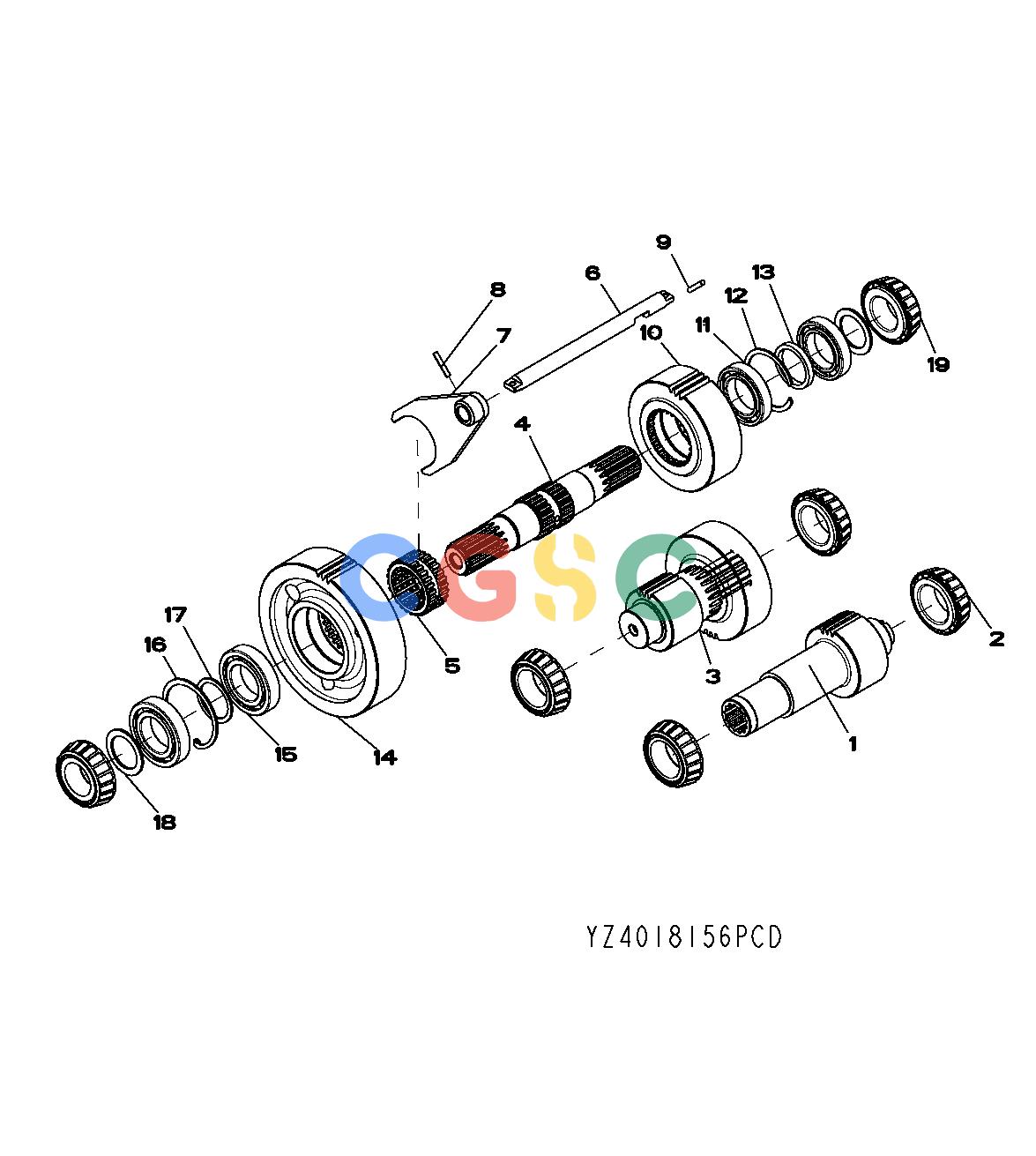

约翰迪尔零件查询643K - FELLER BUNCHER YZ4018156 GEAR RATIO GROUPEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
642 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
YZ4018109
|
[1] |
Shaft
|
|
| 2. |
JD8140
|
[4] |
Bearing Cone
|
|
| 3. |
YZ4018037
|
[1] |
Gear
|
|
| 4. |
YZ4018229
|
[1] |
Shaft
|
|
| 5. |
YZ4018201
|
[1] |
Shift Collar
|
|
| 6. |
YZ4018113
|
[1] |
Shaft
|
|
| 7. |
YZ4018233
|
[1] |
Fork
|
|
| 8. |
F7125024HBK
|
[1] |
Pin
|
|
| 9. |
F2710224
|
[1] |
Dowel Pin
|
|
| 10. |
YZ4018154
|
[1] |
Gear
|
|
| 11. |
F40111
|
[2] |
Ball Bearing
|
|
| 12. |
F39000354
|
[1] |
Snap Ring
|
|
| 13. |
YZ4018016
|
[1] |
Spacer
|
|
| 14. |
YZ4018155
|
[1] |
Gear
|
|
| 15. |
F41211
|
[2] |
Ball Bearing
|
|
| 16. |
F39000393
|
[1] |
Snap Ring
|
|
| 17. |
YZ4018010
|
[1] |
Spacer
|
|
| 18. |
F5553244
|
[2] |
Thrust Bearing Race
|
|
| 19. |
JD8138
|
[2] |
Bearing Cone
|
|
