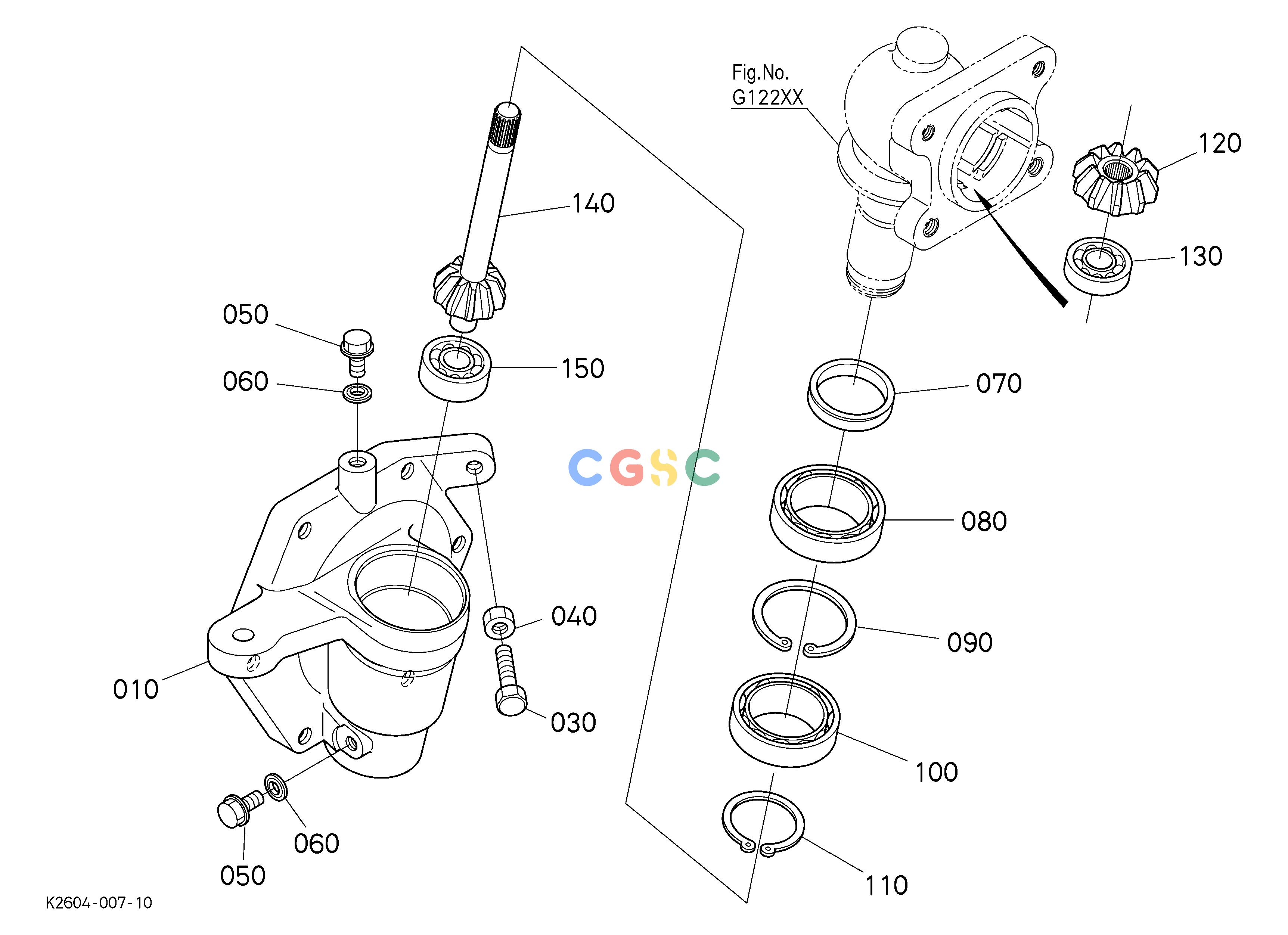

久保田零件查询G12701 FRONT AXLE CASE RH FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
974 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K251115424
|
[1] |
CASE,FRONT GEAR,RH
|
8.3380(lbs); 3.790
|
| 030. |
6671113320
|
[1] |
BOLT(ADJUSTING)
|
0.0616(lbs); 0.028
|
| 040. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 050. |
0177451010
|
[2] |
BOLT,FLANGE
|
0.0374(lbs); 0.017
|
| 060. |
0471701000
|
[2] |
WASHER,SEAL
|
0.0022(lbs); 0.001
|
| 070. |
K251115290
|
[1] |
SEAL,OIL GEAR CASE
|
0.1650(lbs); 0.075
|
| 080. |
0810106908
|
[1] |
BEARING,BALL
|
0.2420(lbs); 0.110
|
| 090. |
0461100550
|
[1] |
SAFETY RING IN ASSY
|
0.0220(lbs); 0.010
|
| 100. |
0810106907
|
[1] |
BEARING,BALL
|
0.1606(lbs); 0.073
|
| 110. |
0461200350
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0220(lbs); 0.010
|
| 120. |
K251116280
|
[1] |
BEVEL GEAR,13 F
|
0.3960(lbs); 0.180
|
| 130. |
0810106203
|
[1] |
BEARING,BALL
|
0.1386(lbs); 0.063
|
| 140. |
K251116310
|
[1] |
SHAFT,BEVEL GEAR 9 F
|
0.8580(lbs); 0.390
|
| 150. |
0810106303
|
[1] |
BEARING,BALL
|
0.2464(lbs); 0.112
|
