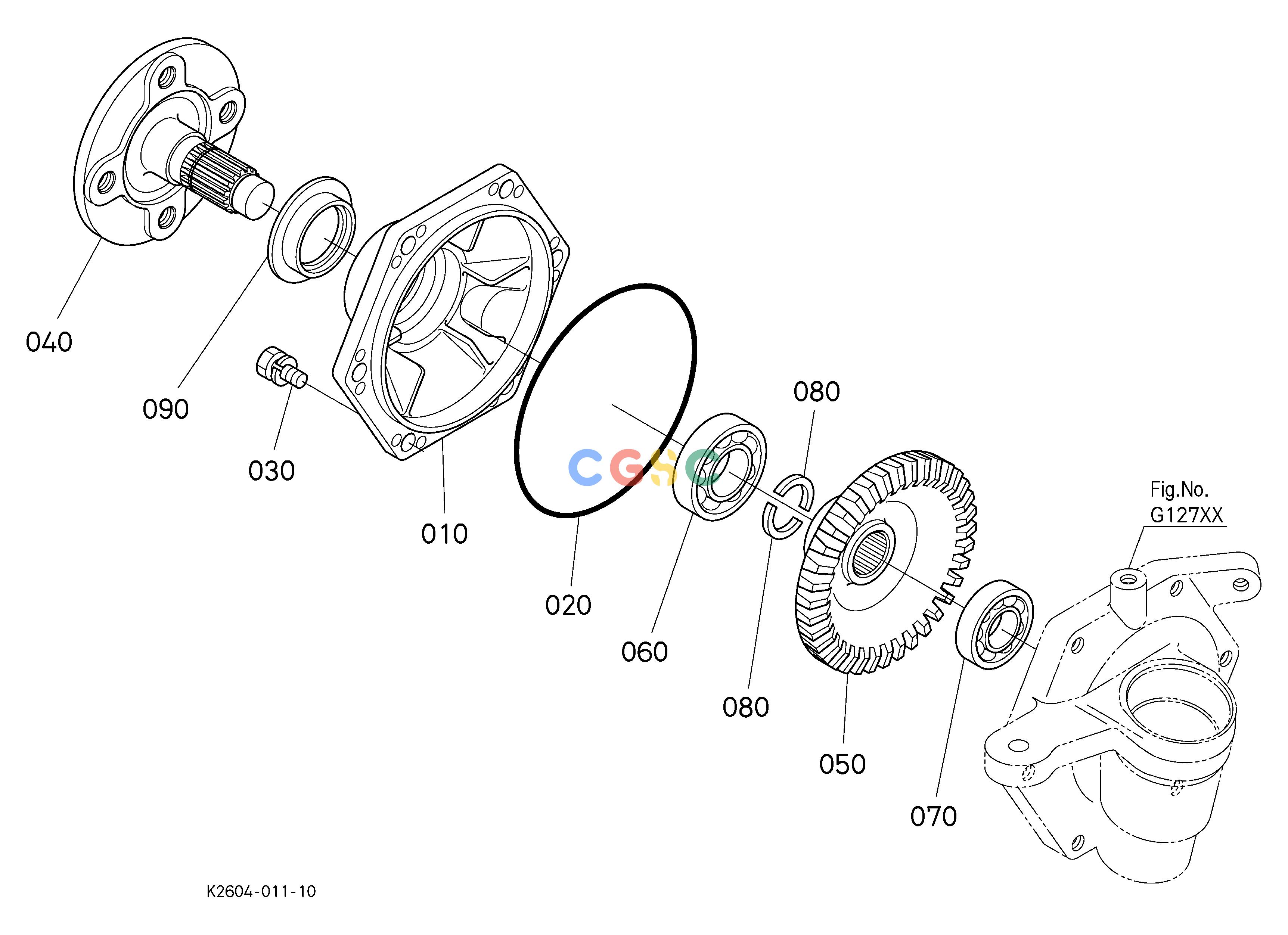

久保田零件查询G13201 FRONT AXLE RH FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
831 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K251115480
|
[1] |
COVER,GEAR CASE
|
1.2980(lbs); 0.590
|
| 020. |
0481151450
|
[1] |
RING
|
0.0110(lbs); 0.005
|
| 030. |
0113351030
|
[6] |
BOLT,SEMS
|
0.0550(lbs); 0.025
|
| 040. |
K251116412
|
[1] |
SHAFT,FRONT AXLE
|
3.1680(lbs); 1.440
|
| 050. |
K251116320
|
[1] |
BEVEL GEAR,36 F
|
3.1020(lbs); 1.410
|
| 060. |
0810106206
|
[1] |
BEARING,BALL
|
0.4290(lbs); 0.195
|
| 070. |
0810106205
|
[1] |
BEARING,BALL
|
0.2640(lbs); 0.120
|
| 080. |
6715656820
|
[2] |
COLLAR,SET
|
0.0088(lbs); 0.004
|
| 090. |
6E04057340
|
[1] |
SEAL,OIL
|
0.0880(lbs); 0.040
|
