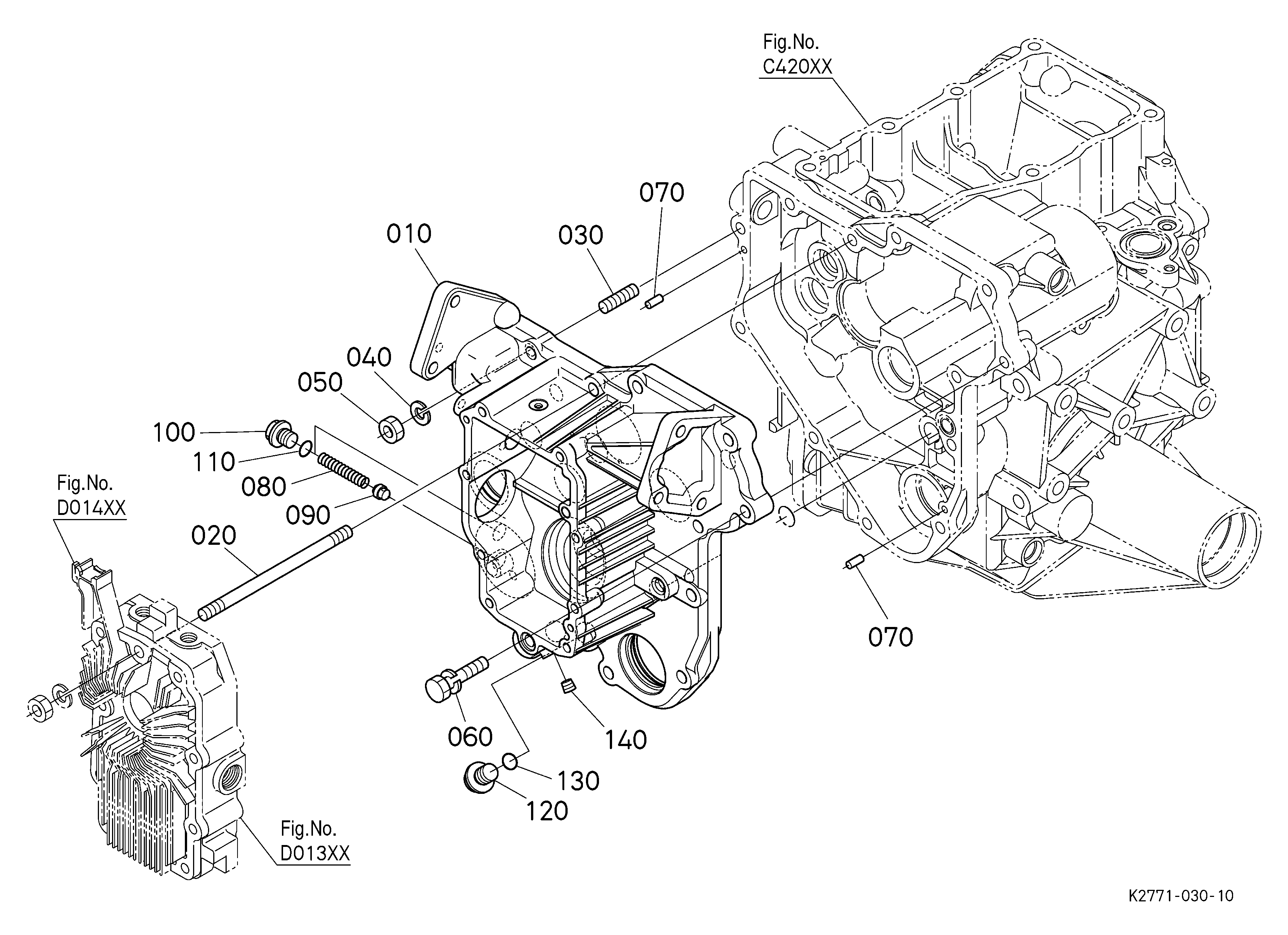

久保田零件查询C42100 TRANSMISSION CASE COVER TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
425 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258111110
|
[1] |
COVER,HST FRONT
|
10.0100(lbs); 4.550
|
| 020. |
K258111170
|
[1] |
STUD
|
0.2200(lbs); 0.100
|
| 030. |
0155551035
|
[1] |
BOLT,STUD
|
0.0638(lbs); 0.029
|
| 040. |
0451250100
|
[1] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 050. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 060. |
0112351045
|
[10] |
BOLT,SEMS
|
0.0704(lbs); 0.032
|
| 070. |
0501200614
|
[2] |
PIN,STRAIGHT
|
0.0088(lbs); 0.004
|
| 080. |
K258111182
|
[1] |
SPRING,PTO
|
0.0110(lbs); 0.005
|
| 090. |
K258111192
|
[1] |
POPPET
|
0.0110(lbs); 0.005
|
| 100. |
0631125020
|
[2] |
PLUG
|
0.0704(lbs); 0.032
|
| 110. |
0481700110
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
0631125030
|
[1] |
PLUG
|
0.1122(lbs); 0.051
|
| 130. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
3135137160
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
