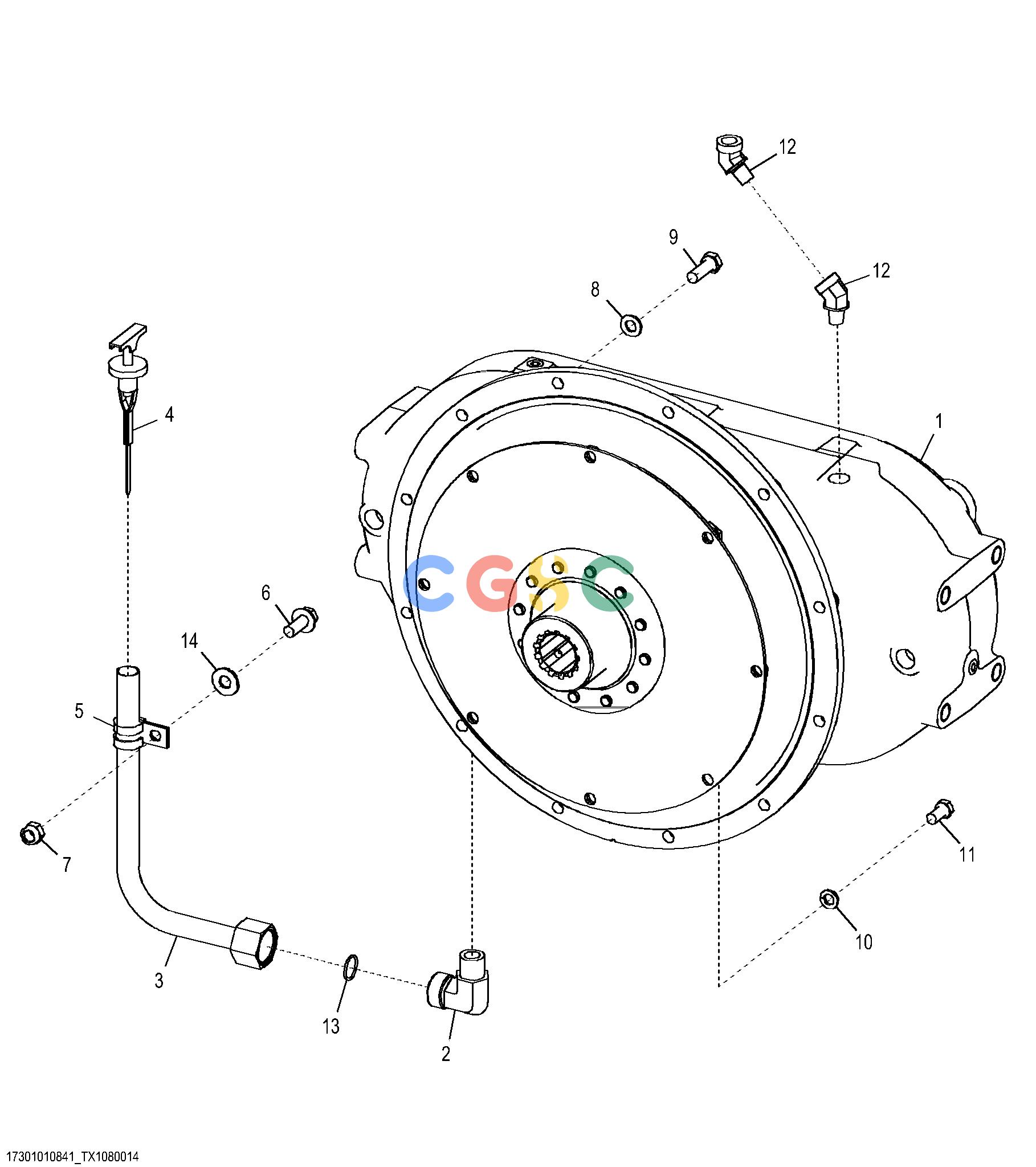

约翰迪尔零件查询643K - FELLER BUNCHER Hydraulic Pump Drive and DipstickEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
YZ19219
|
[1] |
Transmission
|
|
| 2. |
AT174928
|
[1] |
Elbow Fitting
|
|
| 3. |
AT174927
|
[1] |
Structural Tubing
|
|
| 4. |
AT174926
|
[1] |
Dipstick
|
|
| 5. |
T74416
|
[1] |
Clamp
|
|
| 6. |
19M7785
|
[1] |
Screw
|
|
| 7. |
14M7517
|
[1] |
Lock Nut
|
|
| 8. |
24M7433
|
[11] |
Washer
|
|
| 9. |
19M7662
|
[1] |
Cap Screw
|
|
| 10. |
12H304
|
[8] |
Lock Washer
|
|
| 11. |
19H1648
|
[1] |
Cap Screw
|
|
| 12. |
810244000
|
[2] |
Elbow Fitting
|
|
| 13. |
T77858
|
[1] |
O-Ring
|
|
| 14. |
T105740
|
[1] |
Washer
|
|
