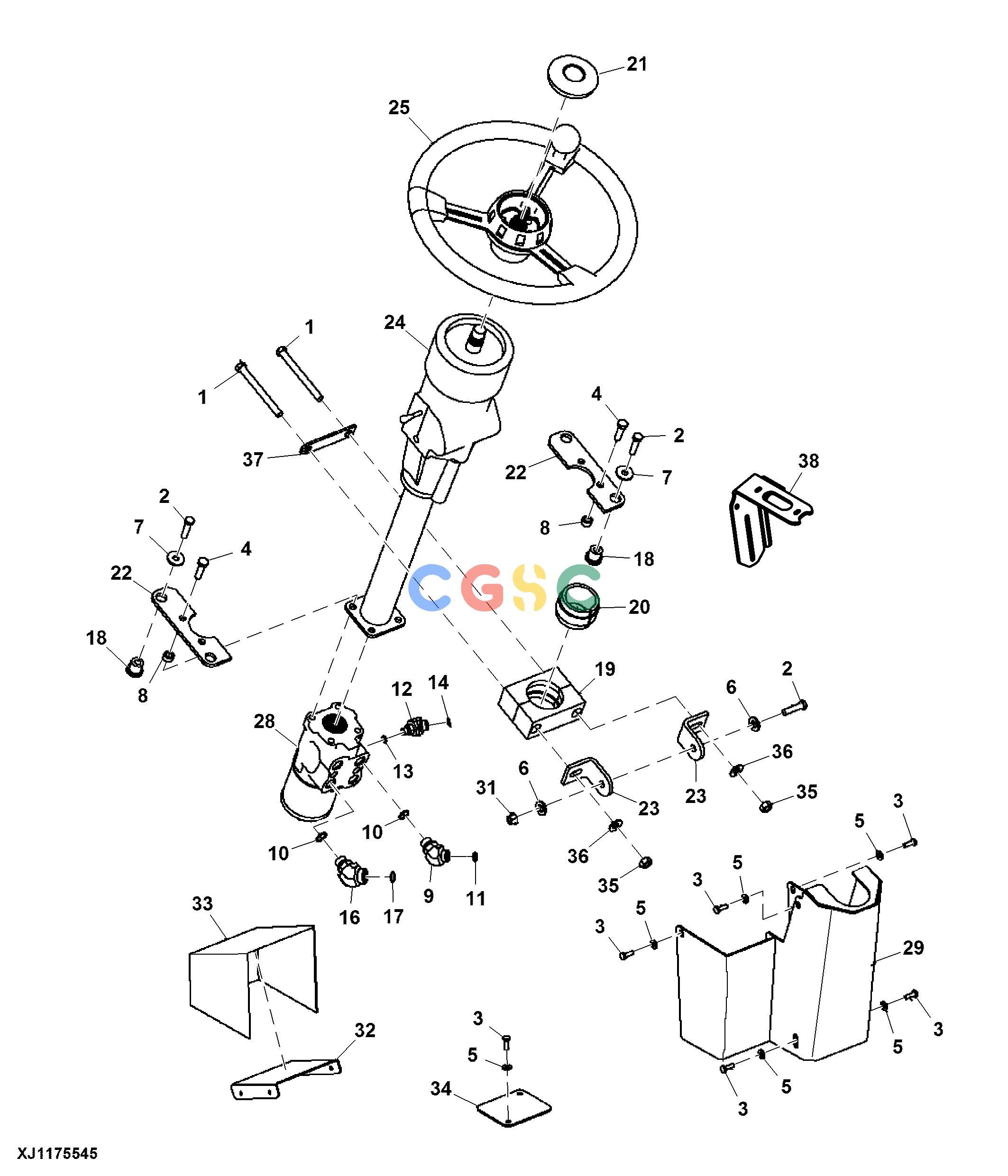

约翰迪尔零件查询643K - FELLER BUNCHER Steering Wheel and Steering Column, HydraulicsEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 259 次

Pos.	Part No	Qty	Parts name	Comments
1.	19H2324	[2]	Cap Screw	7/16" X 4-1/2"
2.	19H2633	[5]	Cap Screw	3/8" X 1-1/2"
3.	19H3869	[8]	Cap Screw	1/4" X 3/4"
4.	19M7550	[4]	Cap Screw	M10 X 35
5.	24H1287	[8]	Washer	9/32" X 5/8" X 0.065"
6.	24M7240	[2]	Washer	13 X 25 X 3 MM
7.	24M7296	[4]	Washer	10.500 X 30 X 2.500 MM
8.	28H860	[4]	Washer	0.423" X 0.675" X 3/8"
9.	38H1046	[2]	Elbow Fitting
10.	R26375	[4]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
11.	T77857	[4]	O-Ring
12.	38H1435	[1]	Elbow Fitting
13.	R28782	[1]	O-Ring
14.	T77613	[1]	O-Ring
16.	38H1602	[2]	Elbow Fitting
17.	T77932	[1]	O-Ring	15.596 X 1.778 MM (0.614" X 0.070")
18.	AT116162	[4]	Isolator
19.	AT175638	[1]	Clamp
20.	AT175645	[1]	Insert
21.	AT175649	[1]	Cap
22.	AT181617	[2]	Plate
23.	AT181618	[2]	Angle
24.	AT190996	[1]	Steering Column
25.	AT192654	[1]	Wheel Kit
25.	AT175650	[1]	Knob	KNOB
28.	AT339155	[1]	Control Valve
29.	AT340472	[1]	Cover
31.	E59406	[1]	Flange Nut
32.	F125809	[1]	Plate
33.	F125820	[1]	Cover
34.	F380752	[1]	Plate
35.	K40006	[2]	Lock Nut
36.	T105740	[2]	Washer
37.	T151859	[1]	Strap
38.	T358635	[1]	Bracket	ARM REST
