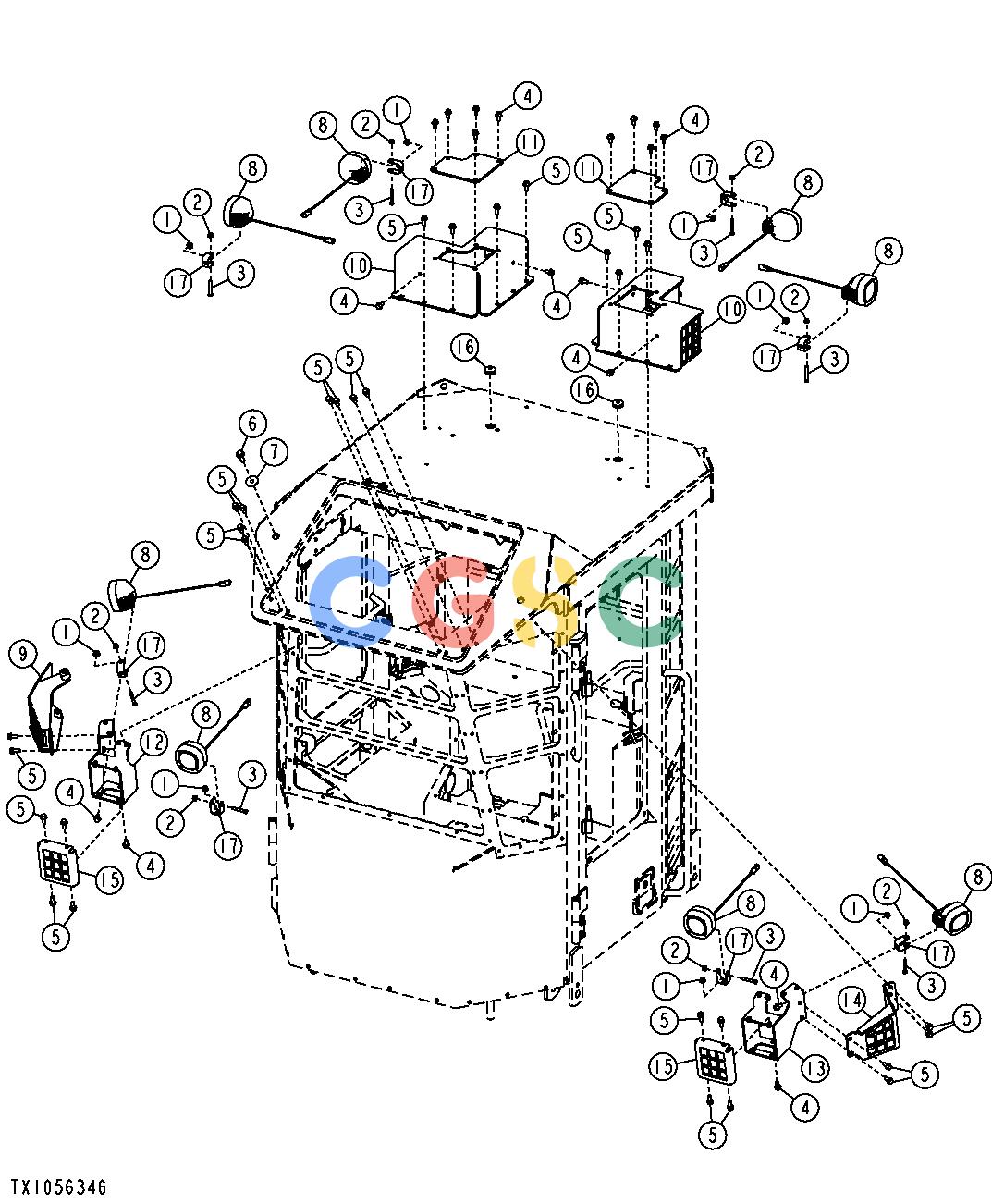

约翰迪尔零件查询643K - FELLER BUNCHER Work Lights - 4 Front and 4 RearEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
959 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7296
|
[8] |
Flange Nut
|
|
| 2. |
14M7573
|
[8] |
Flange Nut
|
|
| 3. |
19M7165
|
[8] |
Cap Screw
|
|
| 4. |
19M7784
|
[20] |
Screw
|
|
| 5. |
19M7785
|
[30] |
Screw
|
|
| 6. |
19M7791
|
[1] |
Bolt
|
|
| 7. |
24H1346
|
[1] |
Washer
|
|
| 8. |
AT323301
|
[8] |
Floodlamp
|
|
| 8. |
AT130104
|
[8] |
Bulb
|
|
| 9. |
AT341743
|
[1] |
Cover
|
|
| 10. |
AT394493
|
[2] |
Light Kit
|
|
| 11. |
F391614
|
[2] |
Cover
|
|
| 12. |
F391617
|
[1] |
Frame
|
|
| 13. |
F391626
|
[1] |
Frame
|
|
| 14. |
F391627
|
[1] |
Guard
|
|
| 15. |
F391629
|
[2] |
Guard
|
|
| 16. |
R74362
|
[2] |
Grommet
|
|
| 17. |
T216731
|
[8] |
Bracket
|
|
