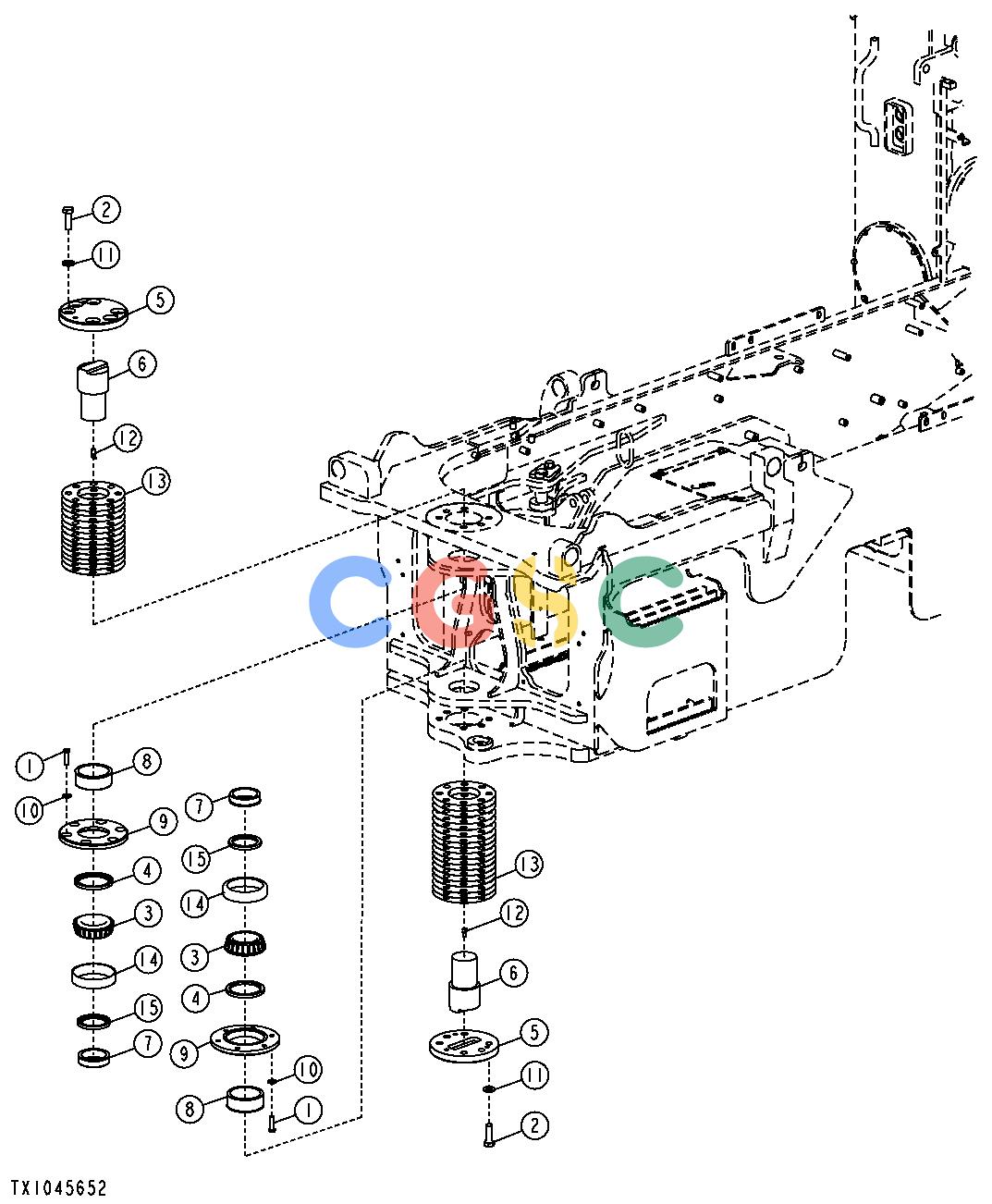

约翰迪尔零件查询643K - FELLER BUNCHER ARTICULATION JOINTEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M8011
|
[12] |
Cap Screw
|
|
| 2. |
19M8224
|
[12] |
Cap Screw
|
|
| 3. |
AT220933
|
[2] |
Bearing Cone
|
|
| 4. |
AT262143
|
[2] |
Seal
|
|
| 5. |
T268435
|
[2] |
Retainer
|
|
| 6. |
AT262157
|
[2] |
Pin Fastener
|
|
| 7. |
AT262158
|
[2] |
Bushing
|
|
| 8. |
AT262159
|
[2] |
Bushing
|
|
| 9. |
T268788
|
[2] |
Plate
|
|
| 10. |
24M7240
|
[12] |
Washer
|
|
| 11. |
F123564
|
[12] |
Washer
|
|
| 12. |
F121657
|
[2] |
Fitting
|
|
| 13. |
........
|
[AR] |
Shim
|
|
| 13. |
........
|
[AR] |
Shim
|
|
| 13. |
........
|
[AR] |
Shim
|
|
| 13. |
........
|
[AR] |
Shim
|
|
| 13. |
........
|
[AR] |
Shim
|
|
| 14. |
T176586
|
[2] |
Bearing Cup
|
|
| 15. |
R36423
|
[2] |
Seal
|
|
