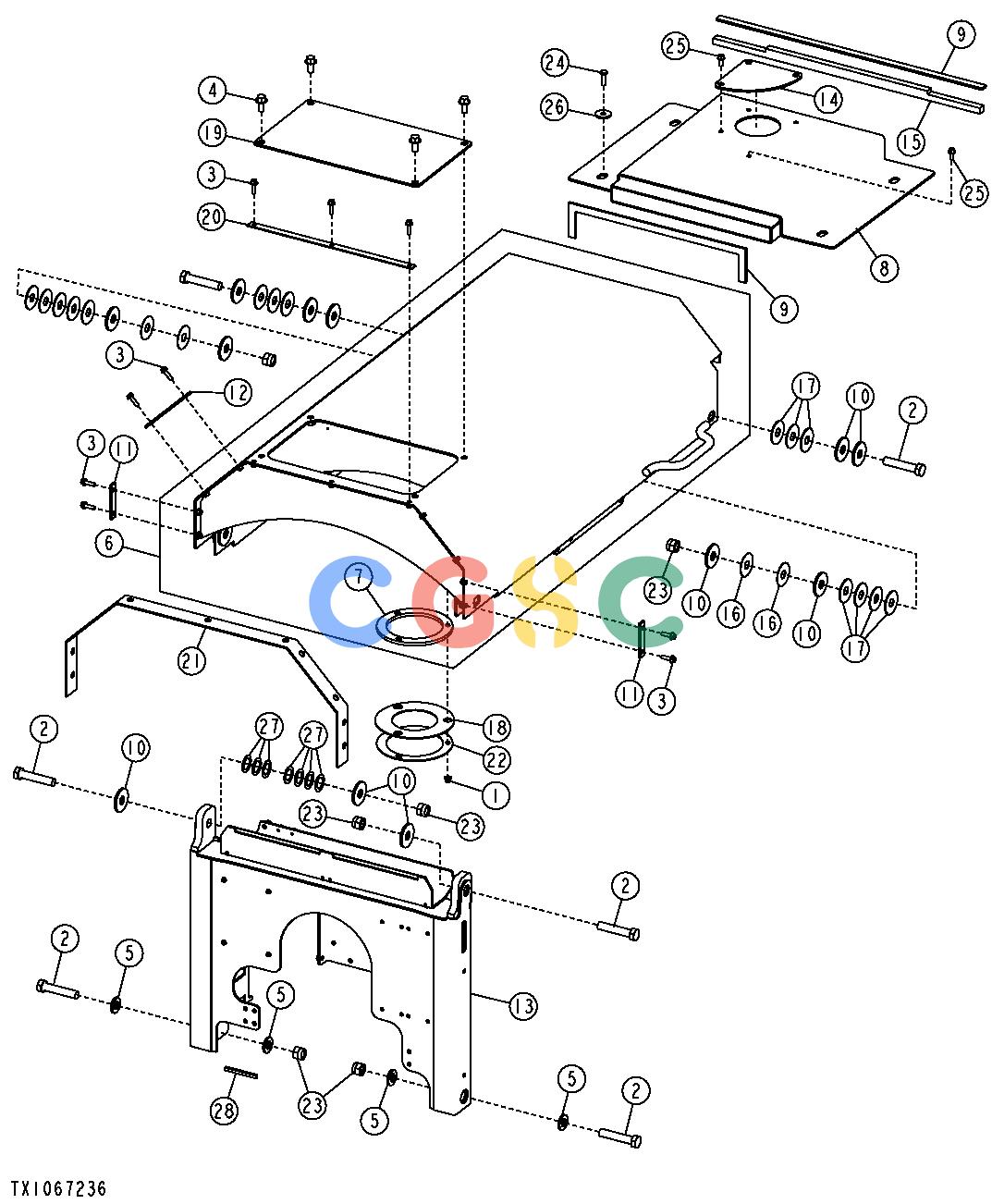

约翰迪尔零件查询643K - FELLER BUNCHER Engine HoodEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
516 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7400
|
[3] |
Lock Nut
|
|
| 2. |
19M7903
|
[6] |
Cap Screw
|
|
| 3. |
19M7835
|
[11] |
Screw
|
|
| 4. |
19M7843
|
[4] |
Screw
|
|
| 5. |
24M7243
|
[4] |
Washer
|
|
| 6. |
AT360519
|
[1] |
Hood
|
|
| 7. |
T241033
|
[1] |
Plate
|
|
| 8. |
AT362610
|
[1] |
Cover
|
|
| 9. |
T59937
|
[AR] |
Isolator
|
|
| 10. |
F123371
|
[17] |
Washer
|
|
| 11. |
F391233
|
[2] |
Retainer
|
|
| 12. |
F391234
|
[2] |
Retainer
|
|
| 13. |
AT367735
|
[1] |
Support
|
|
| 13. |
AT400832
|
[1] |
Support
|
|
| 14. |
F393266
|
[1] |
Plate
|
|
| 15. |
F393025
|
[1] |
Seal
|
|
| 16. |
T112447
|
[4] |
Washer
|
|
| 17. |
T112448
|
[15] |
Washer
|
|
| 18. |
T241032
|
[1] |
Seal
|
|
| 19. |
T254462
|
[1] |
Cover
|
|
| 20. |
T256704
|
[1] |
Strap
|
|
| 21. |
T257207
|
[1] |
Isolator
|
|
| 22. |
T257644
|
[1] |
Plate
|
|
| 23. |
14M7413
|
[6] |
Lock Nut
|
|
| 24. |
19H2993
|
[4] |
Cap Screw
|
|
| 25. |
19M7785
|
[4] |
Screw
|
|
| 26. |
24H1347
|
[4] |
Washer
|
|
| 27. |
827358000
|
[13] |
Solid Shim
|
|
| 28. |
T58056
|
[AR] |
Isolator
|
|
