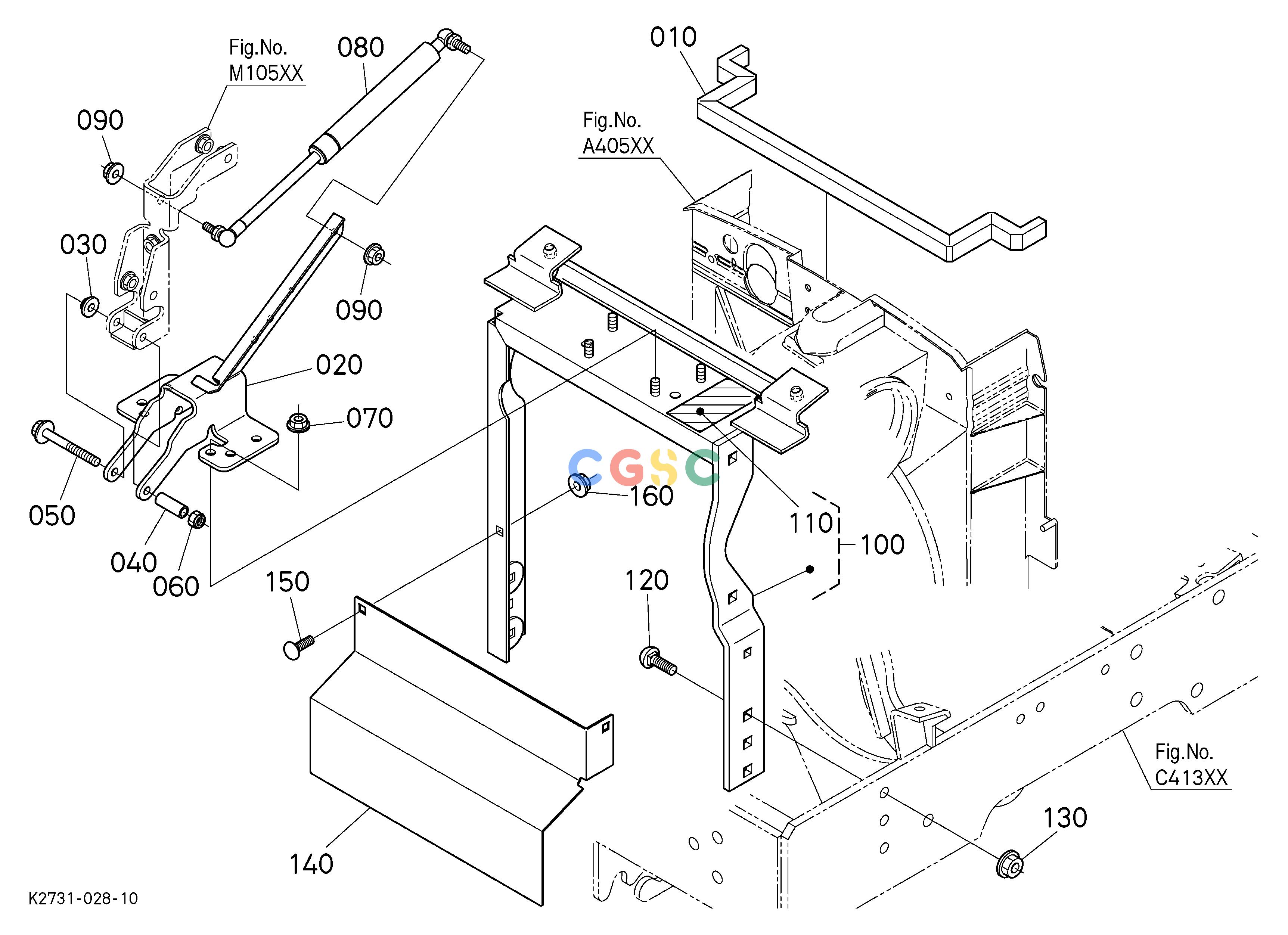

久保田零件查询M10301 BONNET POST HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K250157270
|
[1] |
SPONGE,UPPER
|
0.0220(lbs); 0.010
|
| 020. |
K265154242
|
[1] |
POST,BONNET UPPER
|
1.9360(lbs); 0.880
|
| 030. |
K258154250
|
[1] |
COLLOR,PIVOT
|
0.0220(lbs); 0.010
|
| 040. |
K265154260
|
[1] |
COLLAR,PIVOT 2
|
0.0132(lbs); 0.006
|
| 050. |
0175450870
|
[1] |
BOLT,FLANGE
|
0.0616(lbs); 0.028
|
| 060. |
0255250080
|
[1] |
NUT,LOCKING
|
0.0110(lbs); 0.005
|
| 070. |
0275150080
|
[4] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 080. |
K265154270
|
[1] |
DAMPER,BONNET OPEN
|
0.0000(lbs); 0.000
|
| 090. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
K265195410
|
[1] |
KIT,POST BONNET
|
0.0000(lbs); 0.000
|
| 110. |
99999-99999
|
[1] |
LABEL,HOT CAUTION
|
0.0000(lbs); 0.000
|
| 120. |
K258154872
|
[4] |
BOLT(SQ.NECK,M10X1.5-25)
|
0.0528(lbs); 0.024
|
| 120. |
K258154862
|
[4] |
BOLT(SQ.NECK,M10X1.5-35)
|
0.0616(lbs); 0.028
|
| 130. |
K112291962
|
[4] |
NUT(FLANGE,M10 1.5)
|
0.0264(lbs); 0.012
|
| 140. |
K250154450
|
[1] |
COVER,FLYWHEEL
|
0.0000(lbs); 0.000
|
| 150. |
K112291332
|
[2] |
BOLT(SHORT SQ. NECK,M8 1.25)
|
0.0330(lbs); 0.015
|
| 160. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
