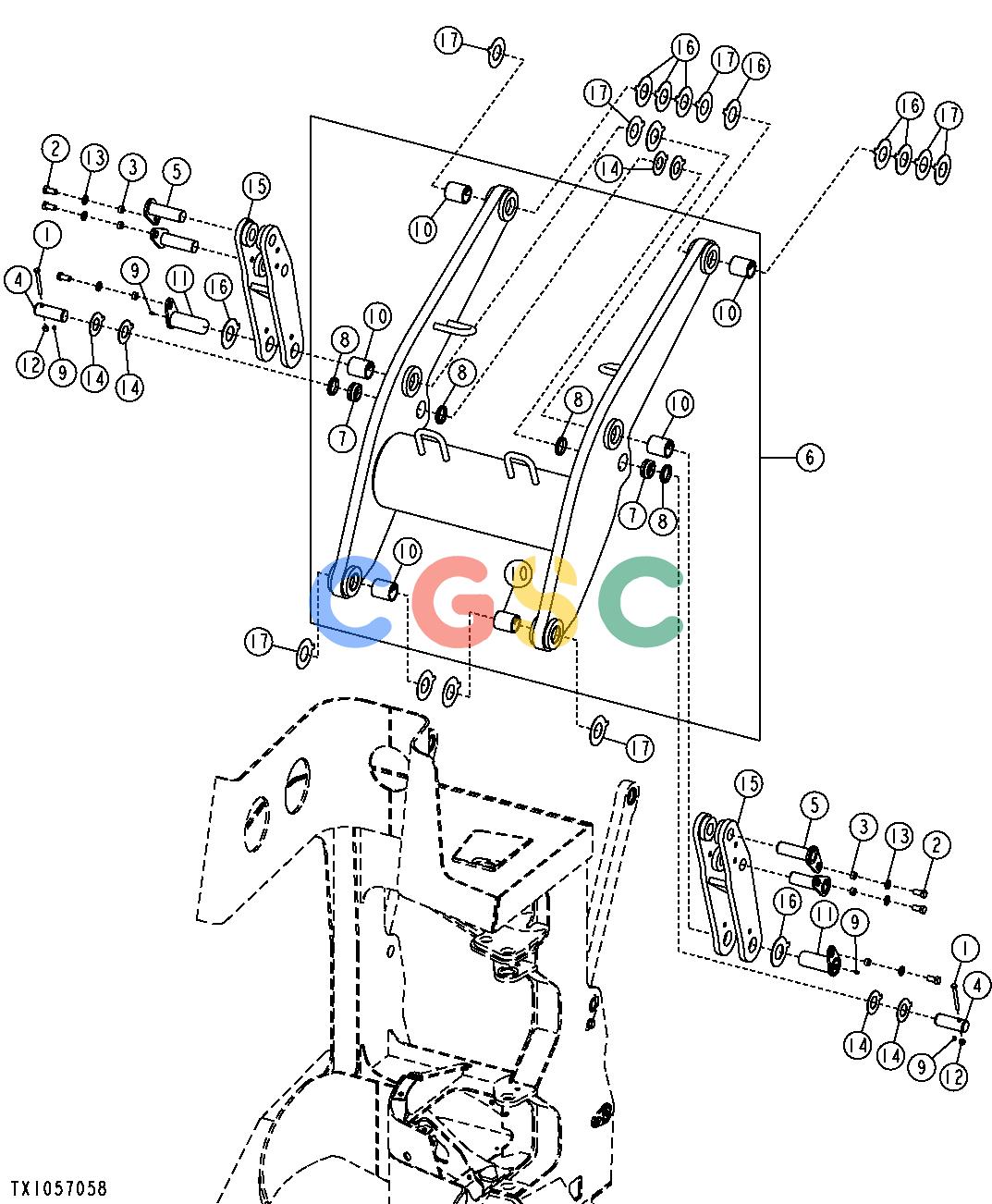

约翰迪尔零件查询643K - FELLER BUNCHER Lift Arm FrameEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19H3597
|
[2] |
Cap Screw
|
|
| 2. |
19M7946
|
[6] |
Cap Screw
|
|
| 3. |
700041400
|
[6] |
Spacer
|
|
| 4. |
AT262176
|
[2] |
Pin
|
|
| 5. |
AT345946
|
[4] |
Pin
|
|
| 6. |
AT360474
|
[1] |
Lift Arm
|
|
| 7. |
AT128773
|
[2] |
Self-Aligning Bushing
|
|
| 8. |
AT262168
|
[4] |
Stop
|
|
| 9. |
JD7759
|
[2] |
Lubrication Fitting
|
|
| 10. |
T257570
|
[6] |
Sleeve
|
|
| 11. |
AT369439
|
[2] |
Pin
|
|
| 12. |
BP12214
|
[2] |
Lock Nut
|
|
| 13. |
F123564
|
[6] |
Washer
|
|
| 14. |
F380806
|
[6] |
Shim
|
|
| 15. |
F393356
|
[2] |
Bellcrank
|
|
| 16. |
T257926
|
[8] |
Shim
|
|
| 17. |
T257927
|
[10] |
Shim
|
|
