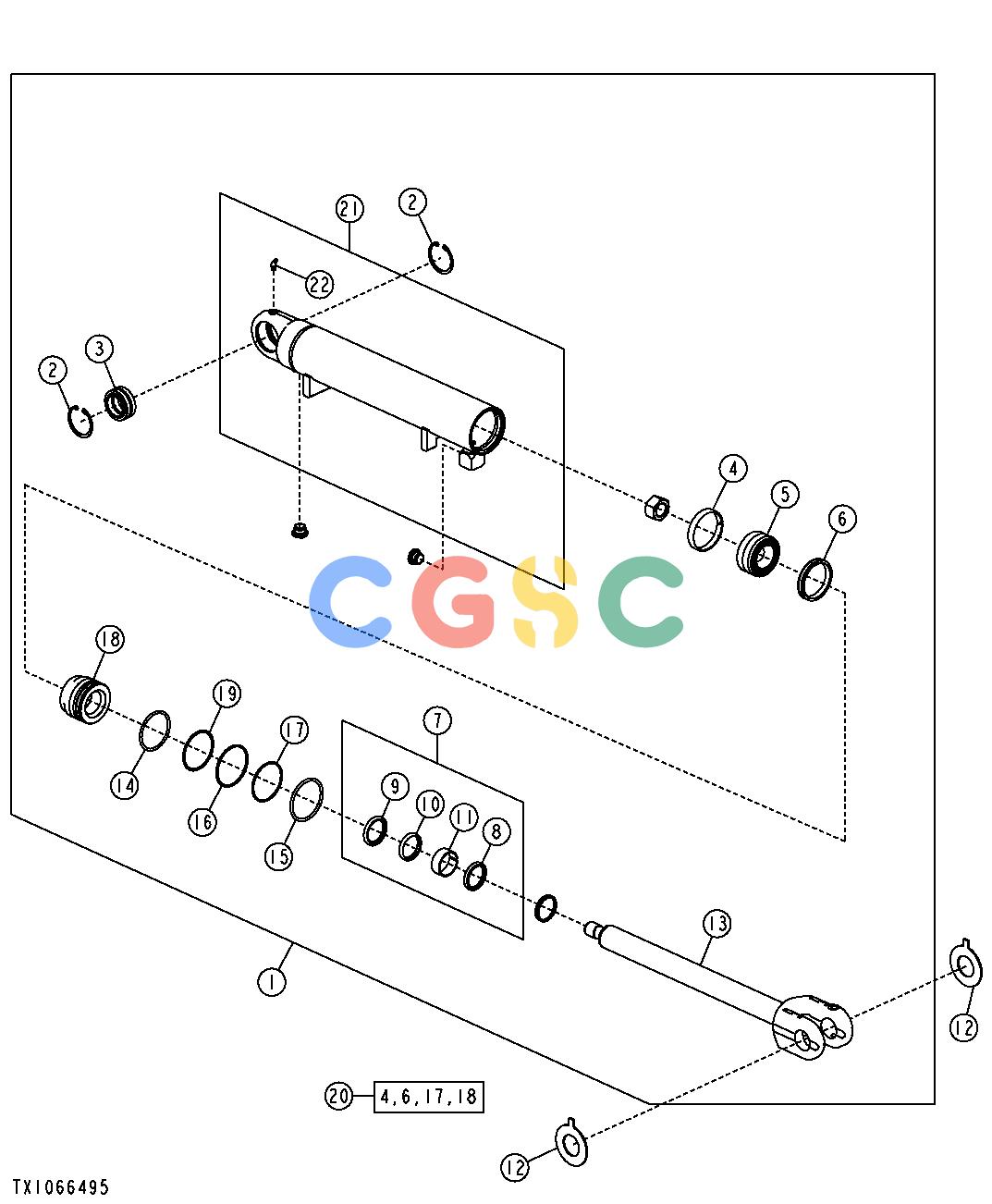

约翰迪尔零件查询643K - FELLER BUNCHER Boom Cylinder, LiftEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
342 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AH216337
|
[1] |
Hydraulic Cylinder
|
|
| 2. |
40M5099
|
[2] |
Snap Ring
|
|
| 3. |
AH150341
|
[1] |
Bushing
|
|
| 4. |
R81775
|
[1] |
Wear Ring
|
|
| 5. |
R93028
|
[1] |
Piston
|
|
| 6. |
RE20343
|
[1] |
Seal
|
|
| 7. |
AH149814
|
[1] |
Hydraulic Cylinder Kit
|
|
| 8. |
AH146558
|
[2] |
Seal
|
|
| 9. |
AH146562
|
[2] |
Seal
|
|
| 10. |
H152204
|
[2] |
Seal
|
|
| 11. |
H152795
|
[2] |
Wear Ring
|
|
| 12. |
F380806
|
[12] |
Shim
|
|
| 13. |
AH168965
|
[1] |
Hydraulic Cylinder Rod
|
|
| 14. |
R83577
|
[1] |
O-Ring
|
|
| 15. |
H180080
|
[1] |
Snap Ring
|
|
| 16. |
H180094
|
[1] |
Snap Ring
|
|
| 17. |
H210686
|
[1] |
O-Ring
|
|
| 18. |
H210826
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 19. |
R81862
|
[1] |
Back-Up Ring
|
|
| 20. |
AH212101
|
[1] |
Hydraulic Cylinder Kit
|
|
| 21. |
AH216332
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 22. |
JD7847
|
[1] |
Lubrication Fitting
|
|
