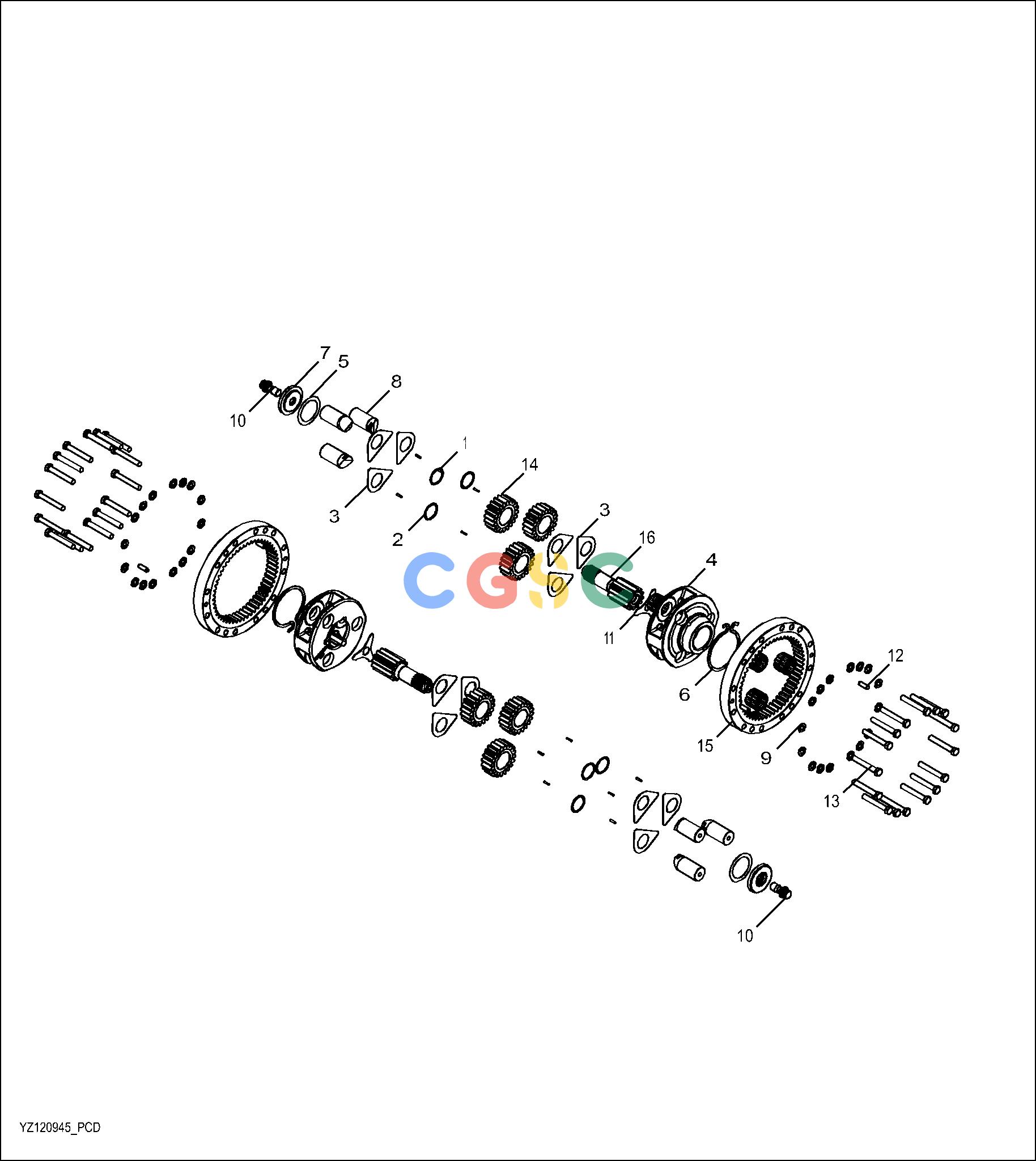

约翰迪尔零件查询524K - LOADER, FOUR-WHEEL DRIVE YZ120945 Final DriveEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
691 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R109123
|
[186] |
Needle Roller
|
|
| 2. |
R109124
|
[3] |
Washer
|
|
| 3. |
R112078
|
[6] |
Thrust Washer
|
|
| 4. |
R109128
|
[1] |
Planet Pinion Carrier
|
|
| 5. |
F2253R
|
[1] |
Shim
|
|
| 6. |
T28832
|
[1] |
Snap Ring
|
|
| 7. |
R93173
|
[1] |
Spacer
|
|
| 8. |
YZ121442
|
[3] |
Pinion Shaft
|
|
| 9. |
R135543
|
[32] |
Washer
|
|
| 10. |
YZ120470
|
[2] |
Screw
|
|
| 11. |
YZ121118
|
[2] |
Lock Plate
|
|
| 12. |
T26565
|
[4] |
Dowel Pin
|
|
| 13. |
19M8620
|
[32] |
Cap Screw
|
|
| 14. |
YZ121126
|
[3] |
Planet Pinion
|
|
| 15. |
YZ120762
|
[2] |
Gear
|
|
| 16. |
YZ120897
|
[2] |
Pinion Shaft
|
|
