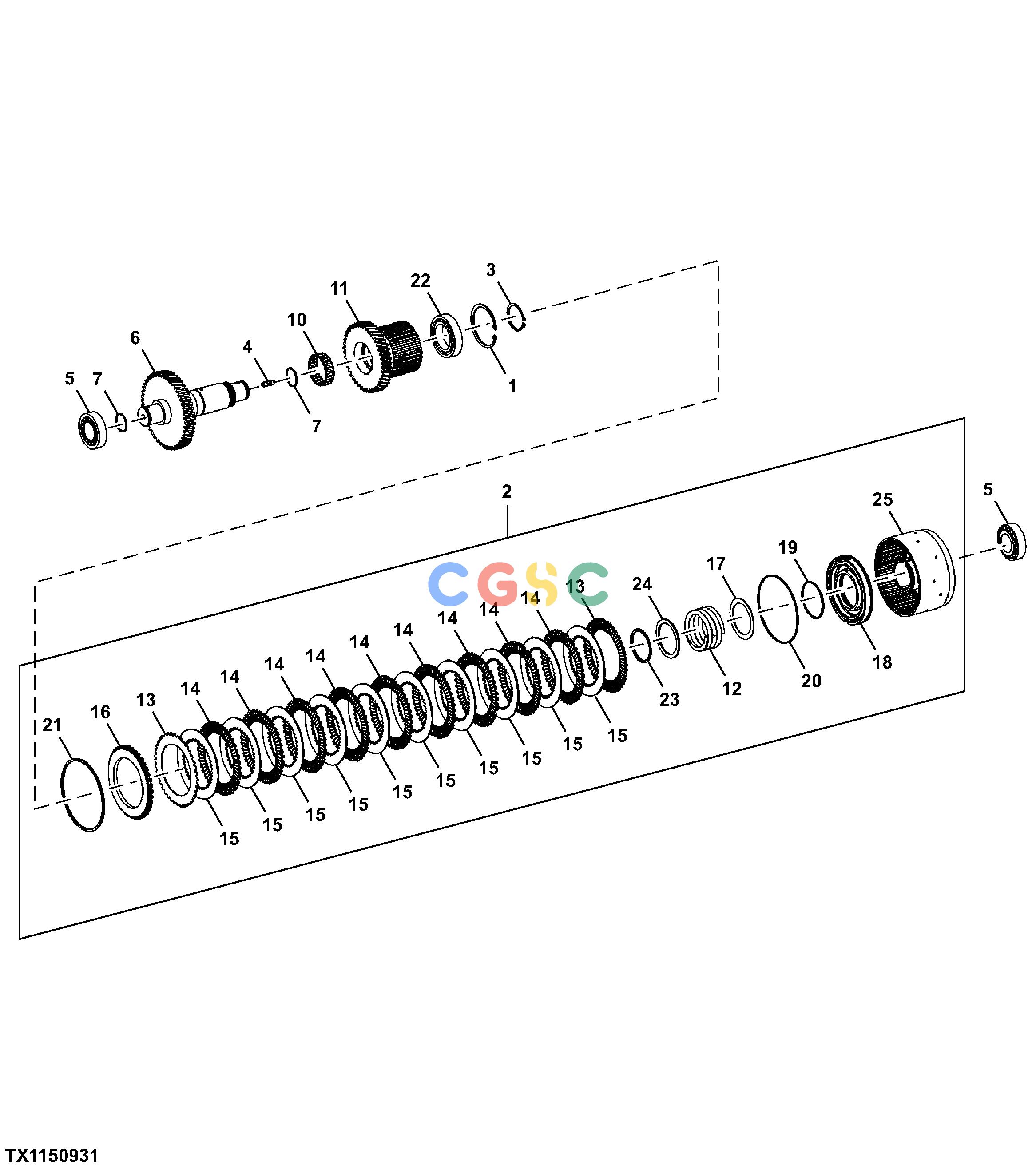

约翰迪尔零件查询524K - LOADER, FOUR-WHEEL DRIVE Reverse Clutch AssemblyEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 723 次

Pos.	Part No	Qty	Parts name	Comments
1.	40M7060	[1]	Snap Ring
2.	AT357744	[1]	Clutch Kit
3.	T159519	[1]	Snap Ring
4.	T171153	[1]	Stud
5.	T294935	[2]	Bearing	SUB FOR T171156 IMPORTANT - HIGH TOLERANCE BEARING REQUIRED IN THIS LOCATION. USE ONLY JOHN DEERE PARTS SOURCED BEARINGS.
6.	T294883	[1]	Pinion Shaft	SUB FOR T171224
7.	T172115	[2]	Piston Ring
10.	T172302	[1]	Needle Bearing
11.	T172817	[1]	Gear
12.	T173065	[1]	Compression Spring
13.	T173636	[2]	Disk With Outer Spline
14.	T173637	[9]	Disk With Outer Spline
15.	T173638	[10]	Disk With Inner Spline
16.	T294876	[1]	Solid Shim	SUB FOR T173639
17.	T173644	[1]	Ring
18.	T173853	[1]	Piston
19.	T173958	[1]	O-Ring
20.	T173960	[1]	O-Ring
21.	T181873	[1]	Snap Ring	2.4 MM
21.	T181874	[1]	Snap Ring	2.7 MM
21.	T181875	[1]	Snap Ring	3.0 MM
21.	T181876	[1]	Snap Ring	3.3 MM
21.	T172247	[1]	Snap Ring	3.6 MM
21.	T172251	[1]	Snap Ring	4.2 MM
22.	T197553	[1]	Ball Bearing
23.	T242449	[1]	Snap Ring
24.	T242456	[1]	Shim
25.	T244801	[1]	Clutch
