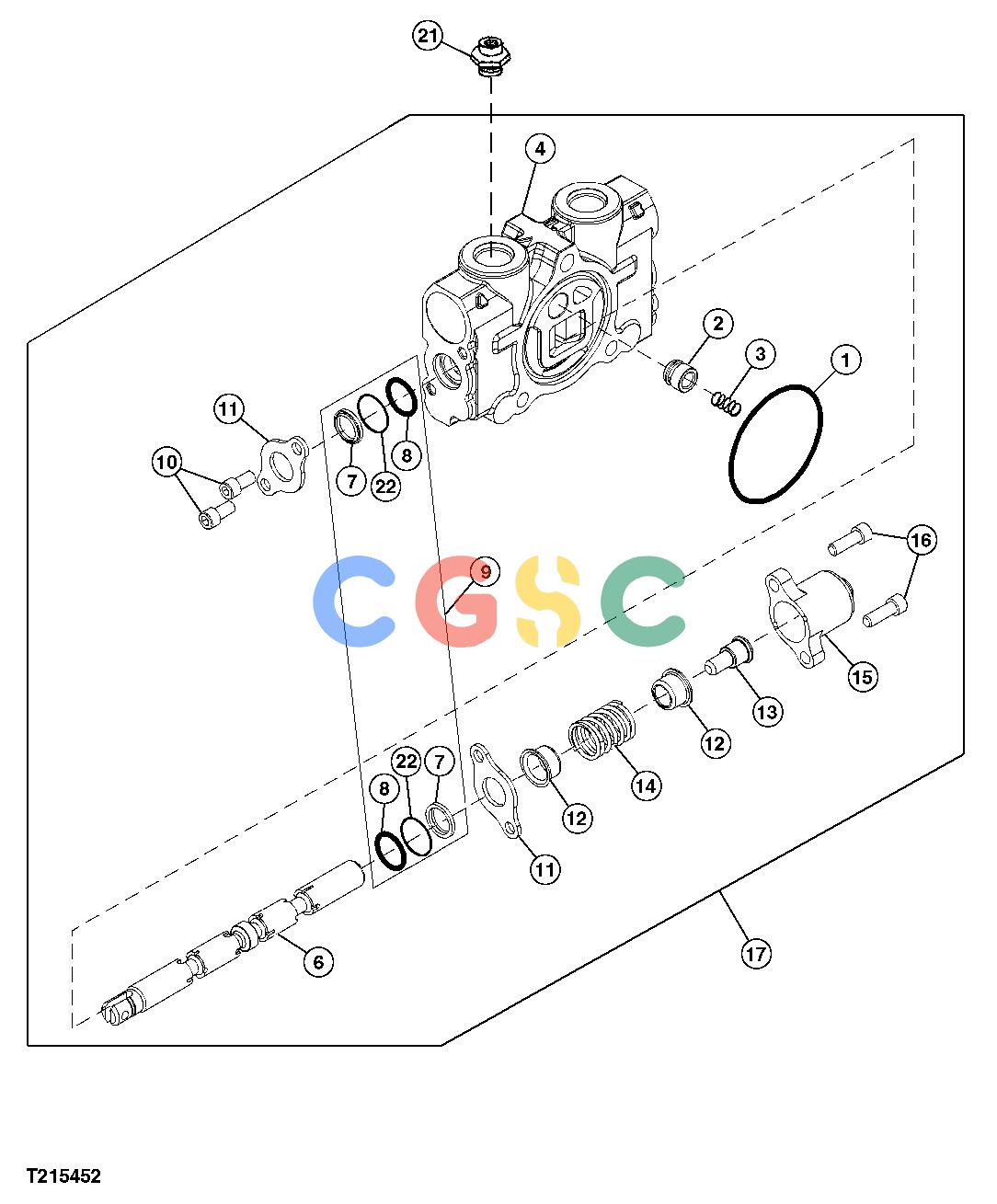

约翰迪尔零件查询850 - BACKHOE Stabilizer Valve SectionEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
L111836
|
[1] |
O-Ring
|
|
| 2. |
T76503
|
[1] |
Poppet
|
|
| 3. |
T76509
|
[1] |
Spring
|
|
| 4. |
........
|
[1] |
Valve
|
|
| 6. |
........
|
[1] |
Spool
|
|
| 7. |
........
|
[2] |
Seal
|
|
| 8. |
........
|
[2] |
O-Ring
|
|
| 9. |
AT326164
|
[1] |
Seal Kit
|
|
| 10. |
21H1352
|
[2] |
Screw
|
|
| 11. |
T76504
|
[2] |
Plate
|
|
| 12. |
T76505
|
[2] |
Round Retainer
|
|
| 13. |
T76507
|
[1] |
Cap Screw
|
|
| 14. |
........
|
[1] |
Spring
|
|
| 15. |
T76508
|
[1] |
Cap
|
|
| 16. |
19H2924
|
[2] |
Screw
|
|
| 17. |
AT327103
|
[2] |
Valve
|
|
| 21. |
LVA13662
|
[1] |
Hydraulic Restrictor
|
|
| 22. |
........
|
[2] |
Back-Up Ring
|
|
