约翰迪尔零件查询850 - BACKHOE Mounting Brackets For 200 and 300 SeriesEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 260 次

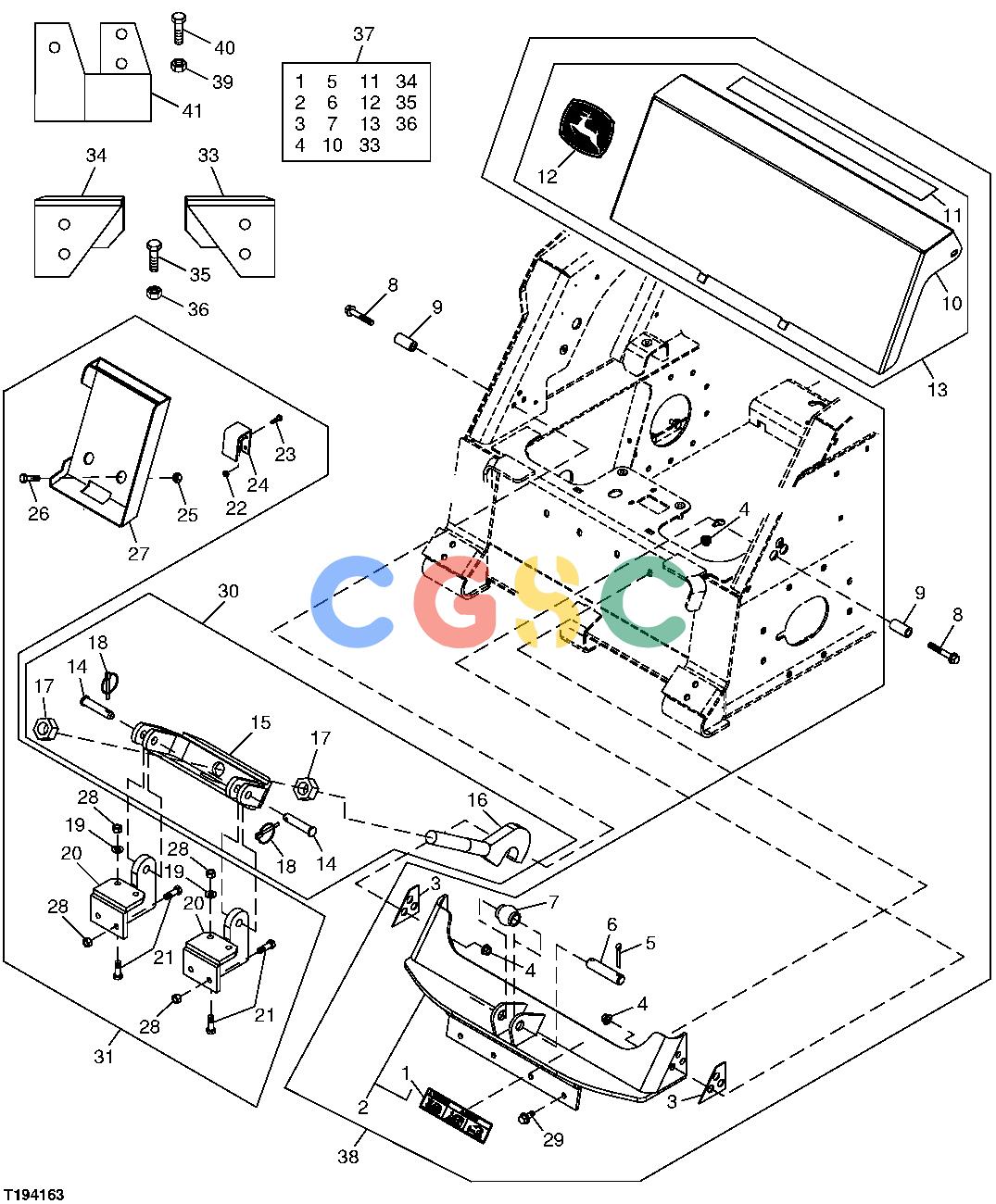

Pos.	Part No	Qty	Parts name	Comments
1.	KV25325	[1]	Label	(C) (D)
2.	KV24470	[1]	Support	(C)
2.	KV22196	[1]	Bracket	(D)
3.	KV16219	[2]	Plate	(C) (D)
4.	14M7299	[10]	Flange Nut	(C) (D) M12
5.	11M7056	[2]	Cotter Pin	(C) (D) 8 X 50 MM
6.	N134600	[1]	Pin Fastener	(C) (D)
7.	F2681R	[1]	Ball	(C) (D)
8.	19M7818	[6]	Screw	(C) (D) M12 X 80 (240, 250, 317, 320, CT322)
9.	KV15371	[6]	Sleeve	(C) (240, 250, 317, 320, CT322)
10.	........	[1]	Guide	TOE (240/250) (ORDER KV15350)
10.	........	[1]	Cover	(D) (260/270 UP TO SN 400000) (ORDER KV15352)
10.	........	[1]	Guide	(C) (D) (260/270/280 ABOVE SN 400000) (ORDER KV23514)
11.	KV10581	[1]	Mat	(C) (D)
12.	JD5646	[1]	Label	(D)
12.	JD5762	[1]	Label	(C) (260, 270, 280 ABOVE SN 400000 , 325, 328, 332, CT332)
13.	KV15350	[1]	Guard	(C) TOE (240, 250, 325, 328, 332, CT332)
13.	KV15352	[1]	Plate	(D) (260/270)
13.	KV23514	[1]	Cover	(D) (260, 270, 280 ABOVE SN 400000 , 325, 328, 332, CT332)
14.	CH11409	[2]	Pin Fastener	(A) (B)
15.	KV17046	[1]	Support	(A) (240, 250, 317, 320, CT322)
15.	........	[1]	Support	(B) (260, 270, 325, 328, 332, CT332)
16.	AL159973	[1]	Link End	(A) (B) (SUB FOR AL78069)
17.	KV17045	[2]	Nut	(A) (B)
18.	AR60372	[2]	Quick Lock Pin	(A) (B)
29.	19M7789	[4]	Screw	(C) (D) M12 X 30
30.	KV16198	[1]	Kit	TIE DOWN YOKE (240, 250, 317, 320, CT322) (WHOLE GOODS) INCLUDES PARTS MARKED (A)
30.	KV16199	[1]	Kit	TIE DOWN YOKE (260, 270, 280, 325, 328, 332, CT332) (WHOLE GOODS) INCLUDES PARTS MARKED (B)
38.	KV24551	[1]	Kit	BRACKET (240, 250, 317, 320, CT322) (WHOLE GOODS) (SUB FOR KV15384) INCLUDES PARTS MARKED (C)
38.	KV22699	[1]	Kit	BRACKET (260/270 UP TO SN 400000) (WHOLE GOODS) (SUB FOR KV15322) INCLUDES PARTS MARKED (D)
39.	14H809	[6]	Nut	1/2"
40.	19H1815	[6]	Cap Screw	1/2" X 1-1/4"
41.	KV26808	[1]	Spacer	(RH)
41.	KV26809	[1]	Spacer	(LH)
