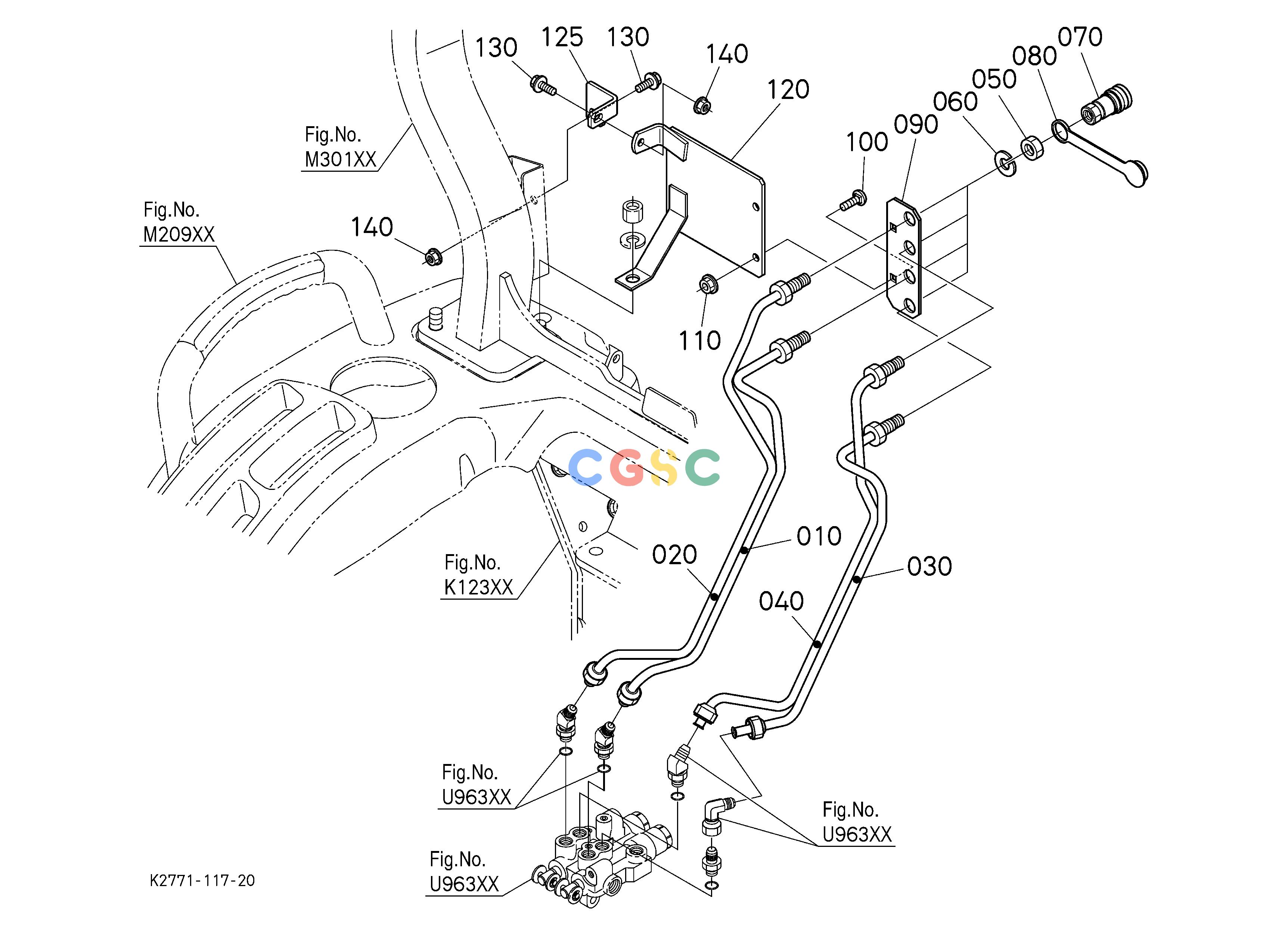

久保田零件查询U96500 REAR CONTROL VALVE KIT (PIPE) (W/G No. BX7376) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
149 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258137610
|
[1] |
PIPE,SA AUX.
|
0.0000(lbs); 0.000
|
| 020. |
K258137620
|
[1] |
PIPE,DA AUX.
|
0.0000(lbs); 0.000
|
| 030. |
K258137630
|
[1] |
PIPE,SB AUX.
|
0.0000(lbs); 0.000
|
| 040. |
K258137640
|
[1] |
PIPE,DB AUX.
|
0.0000(lbs); 0.000
|
| 050. |
0217450160
|
[4] |
HEX.NUT
|
0.0484(lbs); 0.022
|
| 060. |
0451250160
|
[4] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
| 070. |
K258166320
|
[4] |
1/4 COUPLER H2-62
|
0.3080(lbs); 0.140
|
| 080. |
7J24566340
|
[4] |
1/4" PLUG,DUST (PDP-4W)
|
0.0220(lbs); 0.010
|
| 090. |
K258137660
|
[1] |
BRACKET,COUPLER
|
0.0000(lbs); 0.000
|
| 100. |
K112291320
|
[2] |
BOLT,SHORT SQU. NECK(M8 1.25)
|
0.0220(lbs); 0.010
|
| 110. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 120. |
K277137670
|
[1] |
BRACKET(COUPLER 2)
|
0.0000(lbs); 0.000
|
| 125. |
K277137710
|
[1] |
STAY(BX70)
|
0.0000(lbs); 0.000
|
| 130. |
0175450820
|
[2] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
| 140. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
