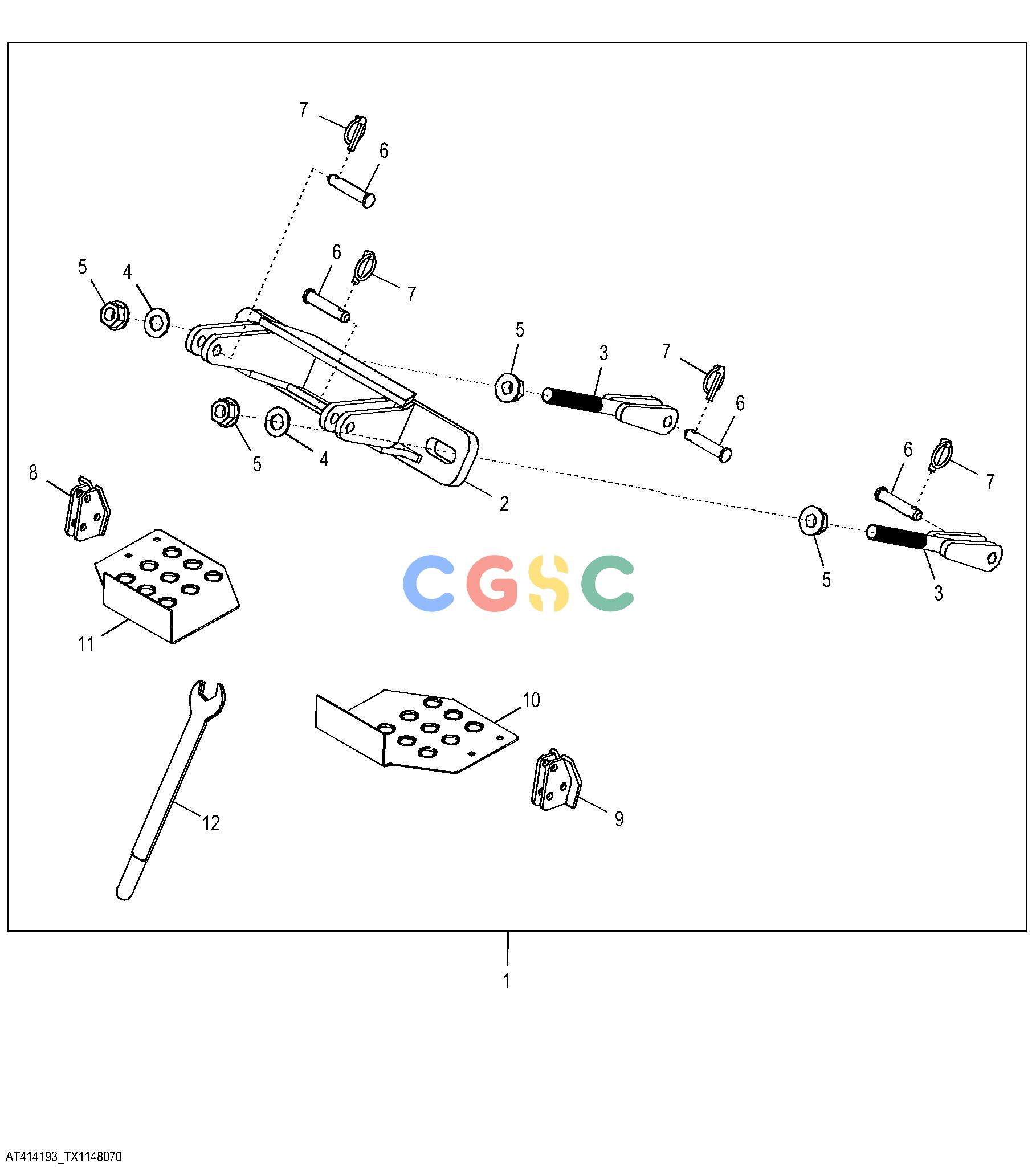

约翰迪尔零件查询850 - BACKHOE Mounting Brackets, 326D, 328D, 329D, 332D, 333D, 326E, 328E, 329E, 332E, 333EEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
611 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT414193
|
[1] |
Mounting Parts
|
|
| 2. |
AT365900
|
[1] |
Bracket
|
|
| 3. |
AT365904
|
[2] |
Link
|
|
| 4. |
24H1138
|
[2] |
Washer
|
|
| 5. |
T146932
|
[4] |
Nut
|
|
| 6. |
CH11409
|
[4] |
Pin Fastener
|
|
| 7. |
AT325129
|
[4] |
Quick Lock Pin
|
|
| 8. |
AT414195
|
[1] |
Bracket
|
|
| 9. |
AT414194
|
[1] |
Bracket
|
|
| 10. |
T274629
|
[1] |
Footrest
|
|
| 11. |
T274628
|
[1] |
Footrest
|
|
| 12. |
AT383612
|
[1] |
Wrench
|
|
| |
F2948R
|
[1] |
Grip
|
|
