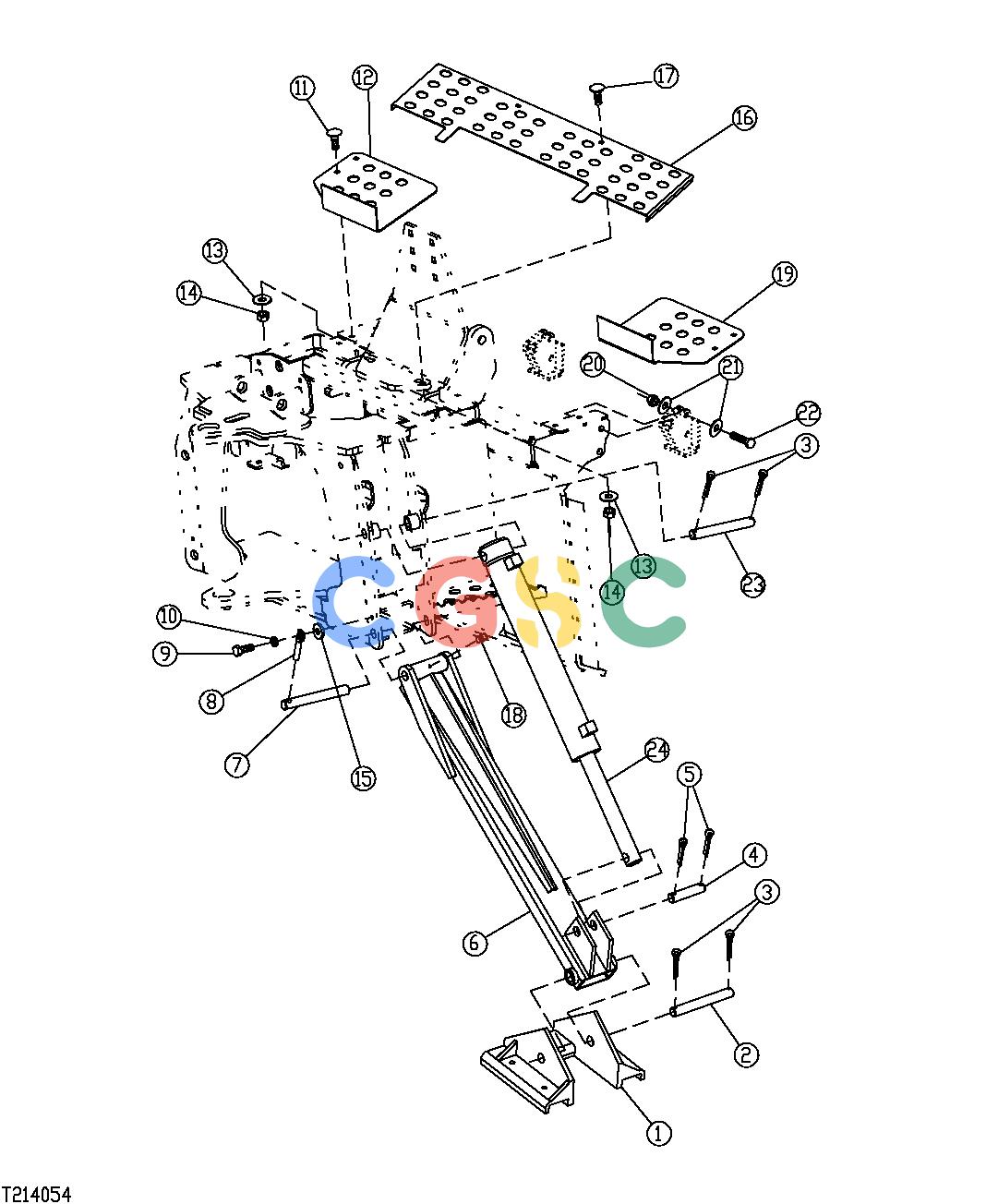

约翰迪尔零件查询850 - BACKHOE Stabilizers and Main Frame Top CoversEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
459 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
KV16827
|
[1] |
Stabilizer Foot
|
|
| 2. |
M118651
|
[1] |
Pin Fastener
|
|
| 3. |
11H218
|
[1] |
Cotter Pin
|
|
| 4. |
PT10453
|
[1] |
Pin Fastener
|
|
| 5. |
11H215
|
[1] |
Cotter Pin
|
|
| 6. |
AT341383
|
[1] |
Leg
|
|
| 7. |
PT14399
|
[1] |
Pin
|
|
| 8. |
M118631
|
[1] |
Retainer
|
|
| 9. |
19H2987
|
[1] |
Cap Screw
|
|
| 10. |
M138057
|
[1] |
Lock Washer
|
|
| 11. |
03H1268
|
[1] |
Bolt
|
|
| 12. |
T218347
|
[1] |
Steel
|
|
| 13. |
24M7055
|
[1] |
Washer
|
|
| 14. |
H76696
|
[1] |
Lock Nut
|
|
| 15. |
PT14382
|
[1] |
Spacer
|
|
| 16. |
T218346
|
[1] |
Plate
|
|
| 17. |
03H1709
|
[1] |
Bolt
|
|
| 18. |
JD7844
|
[1] |
Lubrication Fitting
|
|
| 19. |
T218348
|
[1] |
Steel
|
|
| 20. |
14H865
|
[1] |
Nut
|
|
| 21. |
M143741
|
[1] |
Washer
|
|
| 22. |
19H2441
|
[1] |
Cap Screw
|
|
| 23. |
PT14376
|
[1] |
Pin
|
|
| 24. |
AT326128
|
[1] |
Hydraulic Cylinder
|
|
