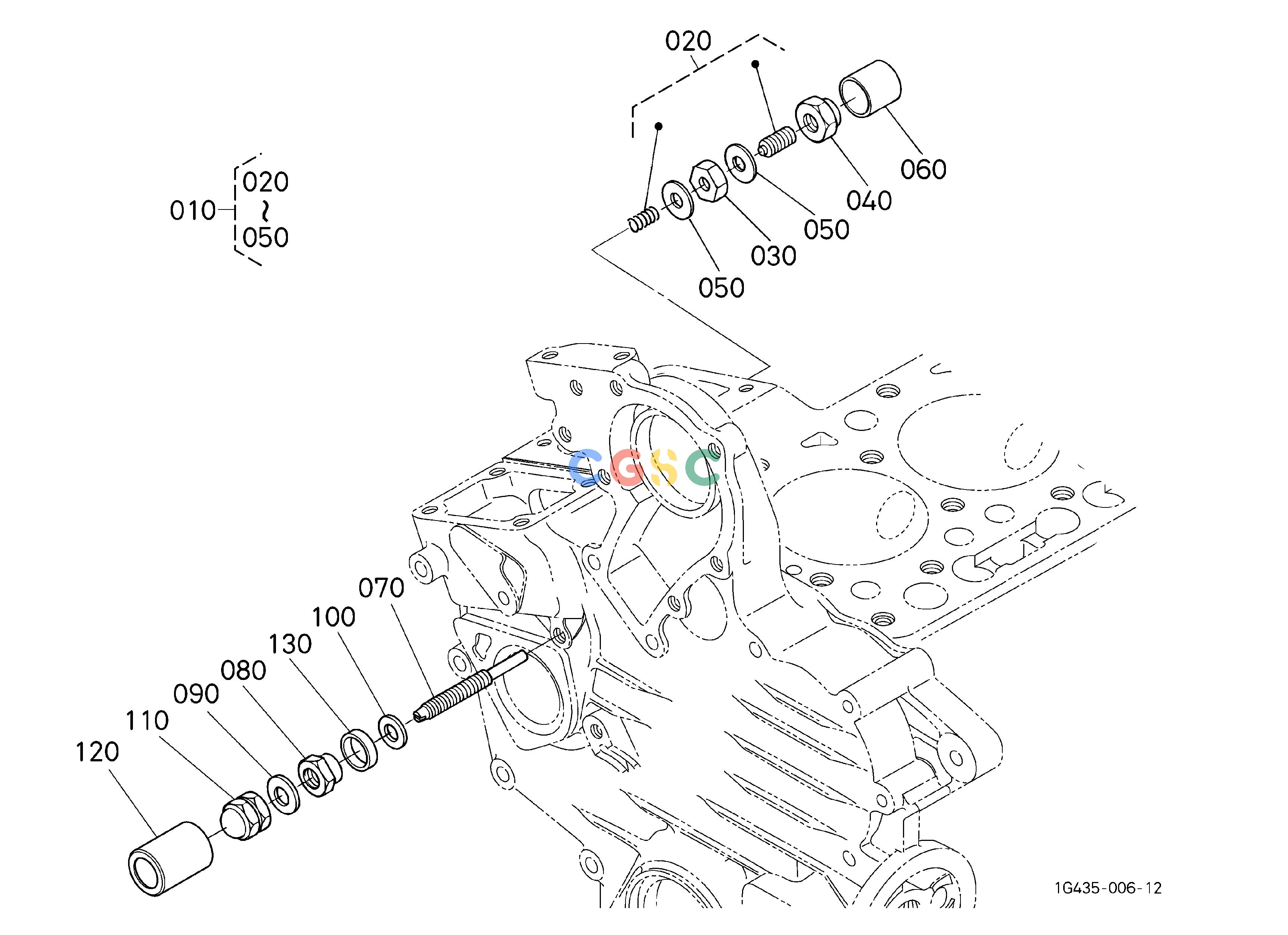

久保田零件查询020001 IDLE APPARATUS ## S.No.<=4GPZ999 S.No.;<=4GPZ999 ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
410 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1584154092
|
[1] |
ASSY APPARATUS,IDLE
|
0.0440(lbs); 0.020
|
| 020. |
1584154100
|
[1] |
ASSY BOLT,ADJUSTING
|
0.0198(lbs); 0.009
|
| 030. |
1526192020
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 040. |
1584154220
|
[1] |
NUT,CAP
|
0.0132(lbs); 0.006
|
| 050. |
1502133660
|
[2] |
PACKING
|
0.0022(lbs); 0.001
|
| 060. |
1584154270
|
[1] |
CAP
|
0.0022(lbs); 0.001
|
| 070. |
1584154123
|
[1] |
BOLT,ADJUSTING
|
0.0176(lbs); 0.008
|
| 080. |
1G03154210
|
[1] |
NUT(LOCK)
|
0.0066(lbs); 0.003
|
| 090. |
1560196650
|
[1] |
PACKING
|
0.0022(lbs); 0.001
|
| 100. |
1G02196650
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 100. |
1560196650
|
[1] |
PACKING
|
0.0022(lbs); 0.001
|
| 110. |
1584192330
|
[1] |
NUT,CAP
|
0.0132(lbs); 0.006
|
| 120. |
- |
[1] |
PIPE(LOCK)
|
0.0000(lbs); 0.000
|
| 130. |
- |
[1] |
COLLAR(LOCK)
|
0.0000(lbs); 0.000
|
