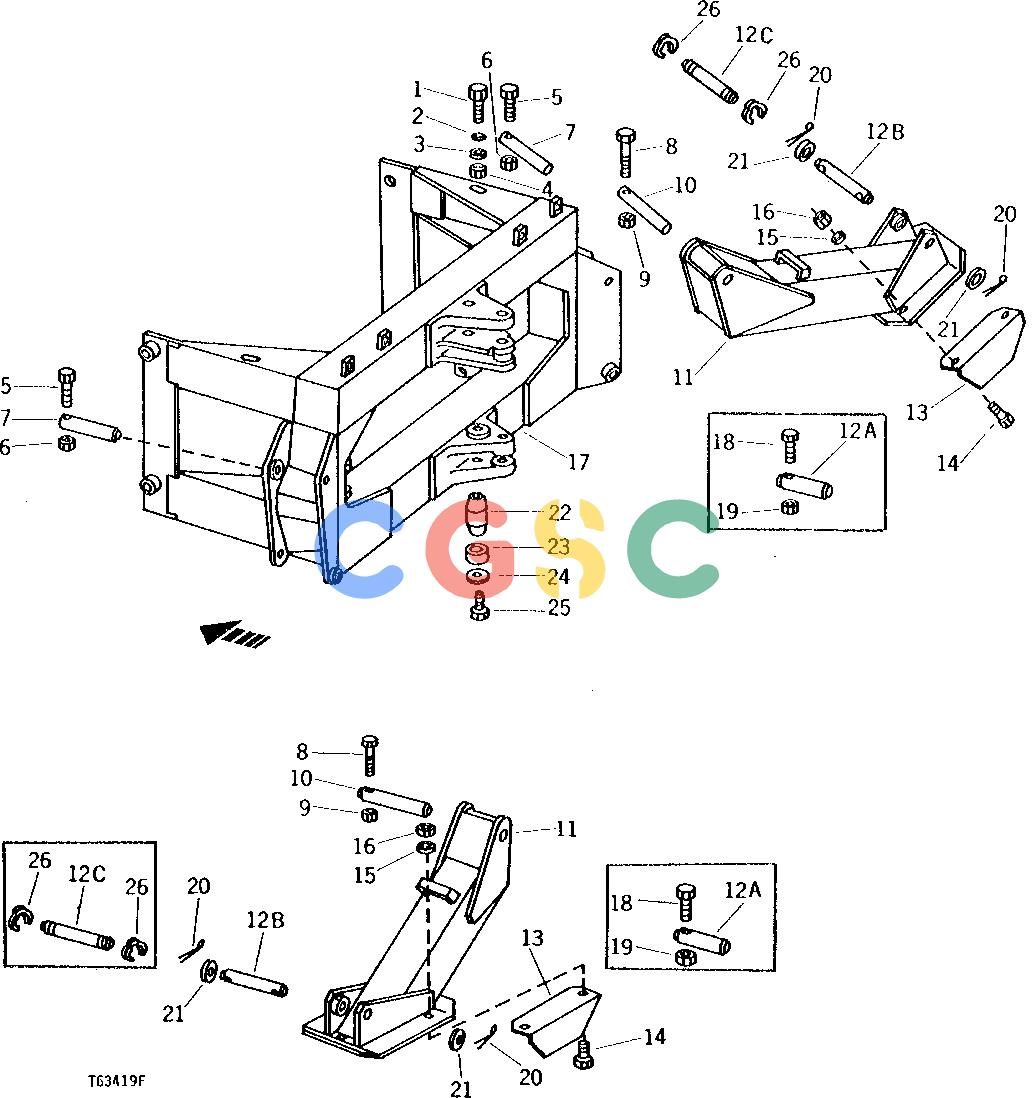

约翰迪尔零件查询92 - BACKHOE MAIN FRAME AND STABILIZERS [A09]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 520 次

Pos.	Part No	Qty	Parts name	Comments
1.	19H3239	[2]	Cap Screw	3/8" X 1-1/4"
2.	12H304	[2]	Lock Washer	3/8"
3.	24H1305	[4]	Washer	13/32" X 13/16" X 0.065"
4.	14H812	[2]	Nut	3/8"
5.	19H3031	[2]	Cap Screw	3/8" X 2-1/2"
6.	T11234	[2]	Lock Nut
7.	U40360	[2]	Pin	UPPER
8.	19H3520	[2]	Cap Screw	1/2" X 3-1/4"
9.	BP12214	[2]	Lock Nut	1/2", (SUB FOR U12622)
10.	U40359	[2]	Pin
11.	AU40390	[2]	Stabilizer
12A.	U40363	[2]	Pin	(SUB T43383, (2) 11M7079 AND (2) 24H1498)
12B.	T43383	[2]	Pin Fastener	(REPLACEMENT PART FOR U40363)
12C.	T59461	[2]	Pin Fastener	(SUB T43383, (2) 11H223 AND (2) 24H1498)
13.	U10940	[2]	Cleat
14.	19H1756	[4]	Cap Screw	5/8" X 1-1/2"
15.	12H294	[4]	Lock Washer	5/8"
16.	14H760	[4]	Nut	5/8"
17.	AU40159	[1]	Frame	(SUB AU42092 IF AVAILABLE)
17.	........	[1]	Main Frame	(ALSO ORDER AT66323) ( AT56437 AND AU41012 NO LONGER AVAILABLE) (SUB AU42092 IF AVAILABLE)
18.	19H1733	[2]	Cap Screw	3/8" X 2-1/2", (USE WITH U40363)
19.	T11234	[2]	Lock Nut	(USE WITH U40363)
20.	11H223	[4]	Cotter Pin	3/8" X 2", (USE WITH T43383)
21.	24H1498	[4]	Washer	1-9/32" X 2-1/8" X 0.120", (USE WITH T43383)
22.	U43210	[2]	Pin Fastener	SWING CYLINDER TO MAIN FRAME (USED WHEN AT56437 HAS BEEN INSTALLED AS A REPLACEMENT PART)
23.	U43182	[2]	Tapered Sleeve	(USED WHEN AT56437 HAS BEEN INSTALLED AS A REPLACEMENT PART)
24.	U43183	[2]	Washer	(USED WHEN AT56437 HAS BEEN INSTALLED AS A REPLACEMENT PART)
25.	19H2710	[2]	Cap Screw	5/8" X 1-3/4"
26.	T59447	[4]	Snap Ring
