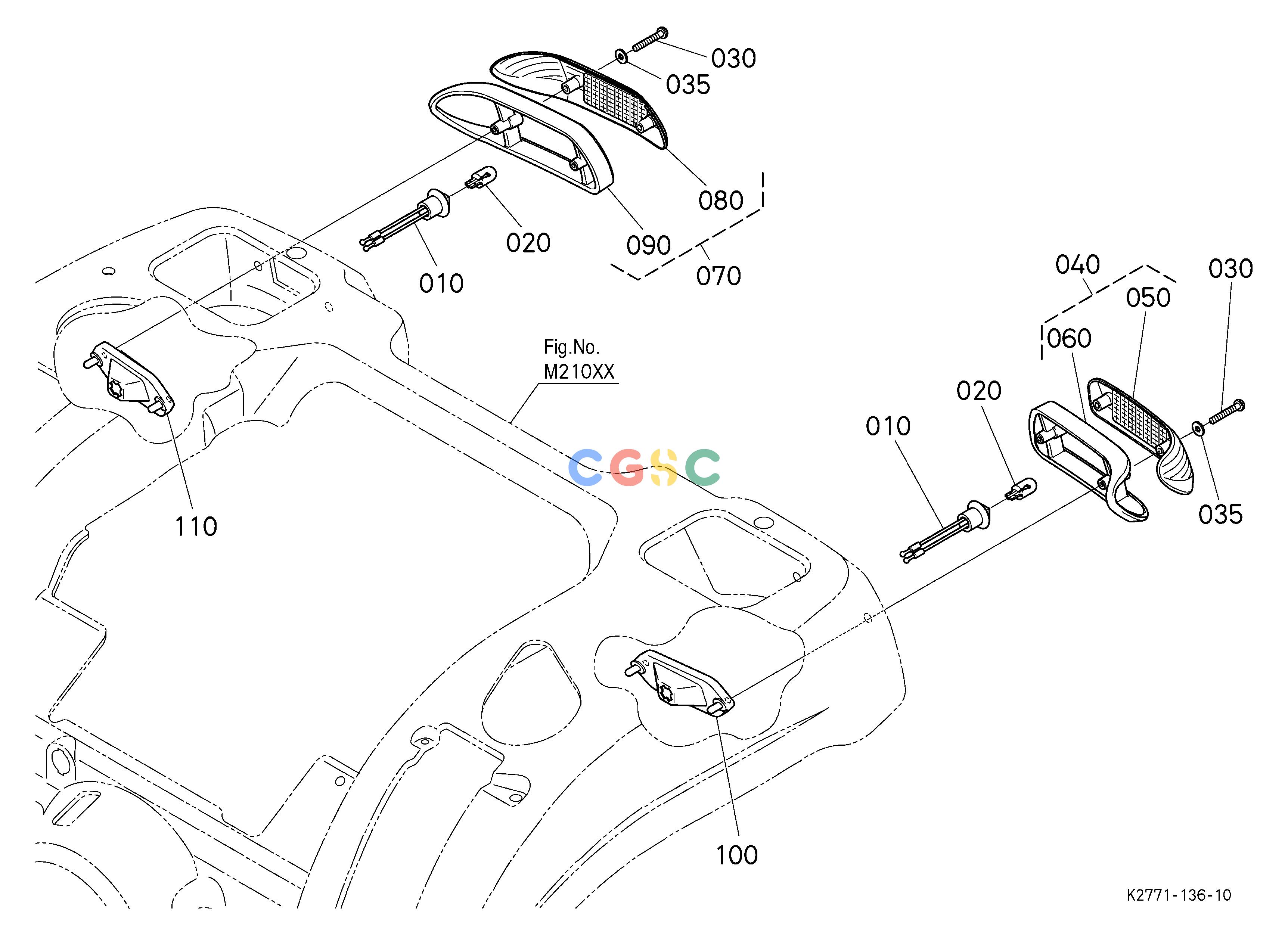

久保田零件查询B30401 TAIL LIGHT ELECTRICAL SYSTEMEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 132 次

Pos.	Part No	Qty	Parts name	Comments
010.	K256162730	[2]	SOCKET,TAIL LAMP	0.0000(lbs); 0.000
020.	K258162740	[2]	BULB,TAIL LAMP #912	12.8W 0.0000(lbs); 0.000
030.	K258162774	[4]	SCREW(TAPPING)	0.0000(lbs); 0.000
035.	K287150960	[4]	WASHER(TAIL LAMP)	; >=26919 0.0000(lbs); 0.000
040.	K258162712	[1]	ASSY,TAIL LAMP LH	0.0000(lbs); 0.000
050.	K258162780	[1]	LENS,TAIL LAMP LH	0.0000(lbs); 0.000
060.	K258162760	[1]	BEZEL,TAIL LAMP LH	0.0000(lbs); 0.000
070.	K258162722	[1]	ASSY,TAIL LAMP RH	0.0000(lbs); 0.000
080.	K258162790	[1]	LENS,TAIL LAMP RH	0.0000(lbs); 0.000
090.	K258162730	[1]	BEZEL,TAIL LAMP RH	0.0000(lbs); 0.000
100.	K265162810	[1]	BODY TAIL LIGHT LH	ORDER BY REF.No.100 NEW PART.; <=26918 0.0000(lbs); 0.000
100.	K265162813	[1]	BODY,TAIL LIGHT LH	; >=26919 0.0000(lbs); 0.000
110.	K265162820	[1]	BODY TAIL LIGHT RH	ORDER BY REF.No.110 NEW PART.; <=26918 0.0000(lbs); 0.000
110.	K265162823	[1]	BODY,TAIL LIGHT RH	; >=26919 0.0000(lbs); 0.000
