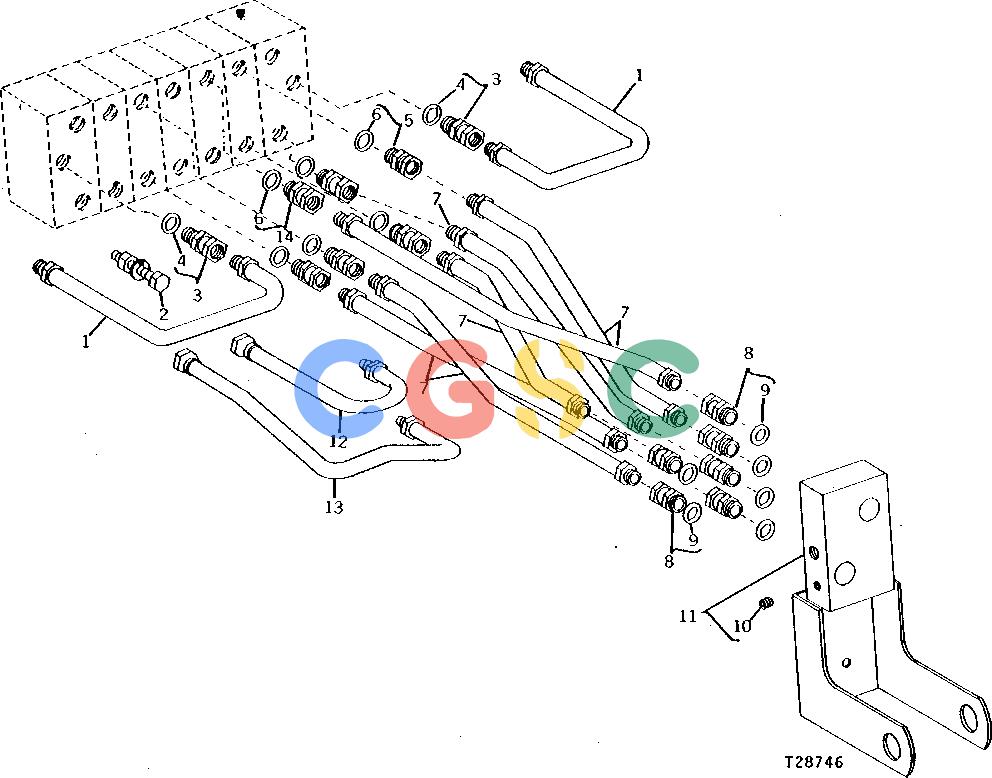

约翰迪尔零件查询92 - BACKHOE OIL LINES AND FITTINGS, CONTROL VALVE TO MANIFOLD [C12]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
959 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AU40427
|
[2] |
Line
|
|
| 2. |
19H3404
|
[3] |
Cap Screw
|
|
| 2. |
12H304
|
[3] |
Lock Washer
|
|
| 2. |
14H812
|
[3] |
Nut
|
|
| 3. |
AU11654
|
[2] |
Fitting
|
|
| 4. |
U12547
|
[2] |
O-Ring
|
|
| 5. |
AW10633
|
[6] |
Adapter
|
|
| 6. |
R26906
|
[6] |
O-Ring
|
|
| 7. |
AU40295
|
[6] |
Hydraulic Hose - Fabricate
|
|
| 8. |
AU11569
|
[6] |
Adapter
|
|
| 9. |
R26375
|
[6] |
O-Ring
|
|
| 10. |
15H666
|
[3] |
Pipe Plug
|
|
| 11. |
AT38904
|
[1] |
Manifold
|
|
| 12. |
AU40718
|
[1] |
Oil Line
|
|
| 13. |
AU40717
|
[1] |
Line
|
|
| 14. |
AT38028
|
[1] |
Adapter
|
|
