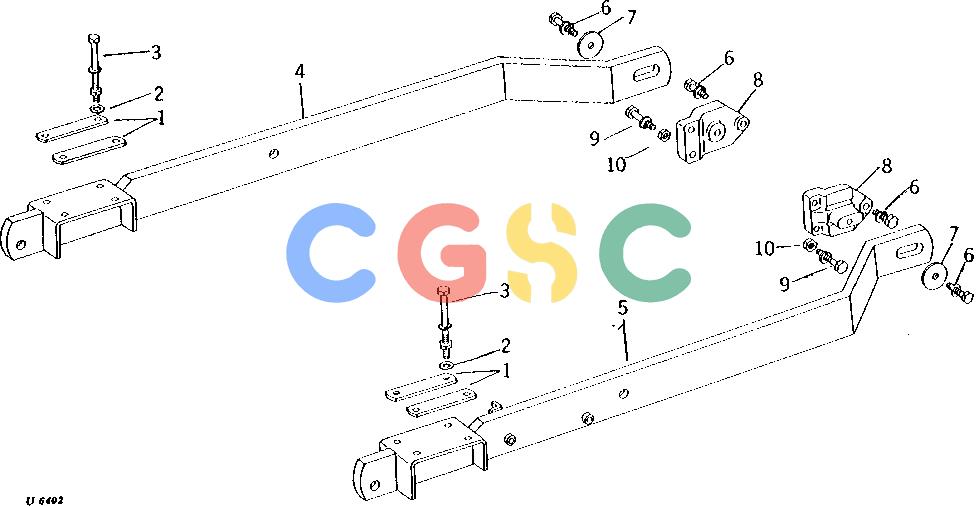

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | U40656 | [4] | Strap | UPPER |
| 2. | 24H1401 | [8] | Washer | 25/32" X 1-3/4" X 0.194" |
| 3. | 08H4309 | [8] | Cap Screw | 3/4" X 8-1/2" |
| 3. | 12H236 | [8] | Lock Washer | 3/4" |
| 3. | 14H794 | [8] | Nut | 3/4" |
| 4. | ........ | [1] | Frame | SIDE, L.H. |
| 5. | ........ | [1] | Frame | SIDE, R.H. |
| 6. | 19H2994 | [4] | Cap Screw | HS, SAE 8, 5/8" X 1-1/2" |
| 6. | 12H294 | [4] | Lock Washer | 5/8" |
| 7. | U12948 | [2] | Washer | |
| 8. | U40559 | [2] | Support | |
| 9. | 19H3168 | [4] | Cap Screw | 5/8" X 3-3/4" |
| 9. | 12H294 | [4] | Lock Washer | 5/8" |
| 10. | 14H760 | [4] | Nut | 5/8" |
