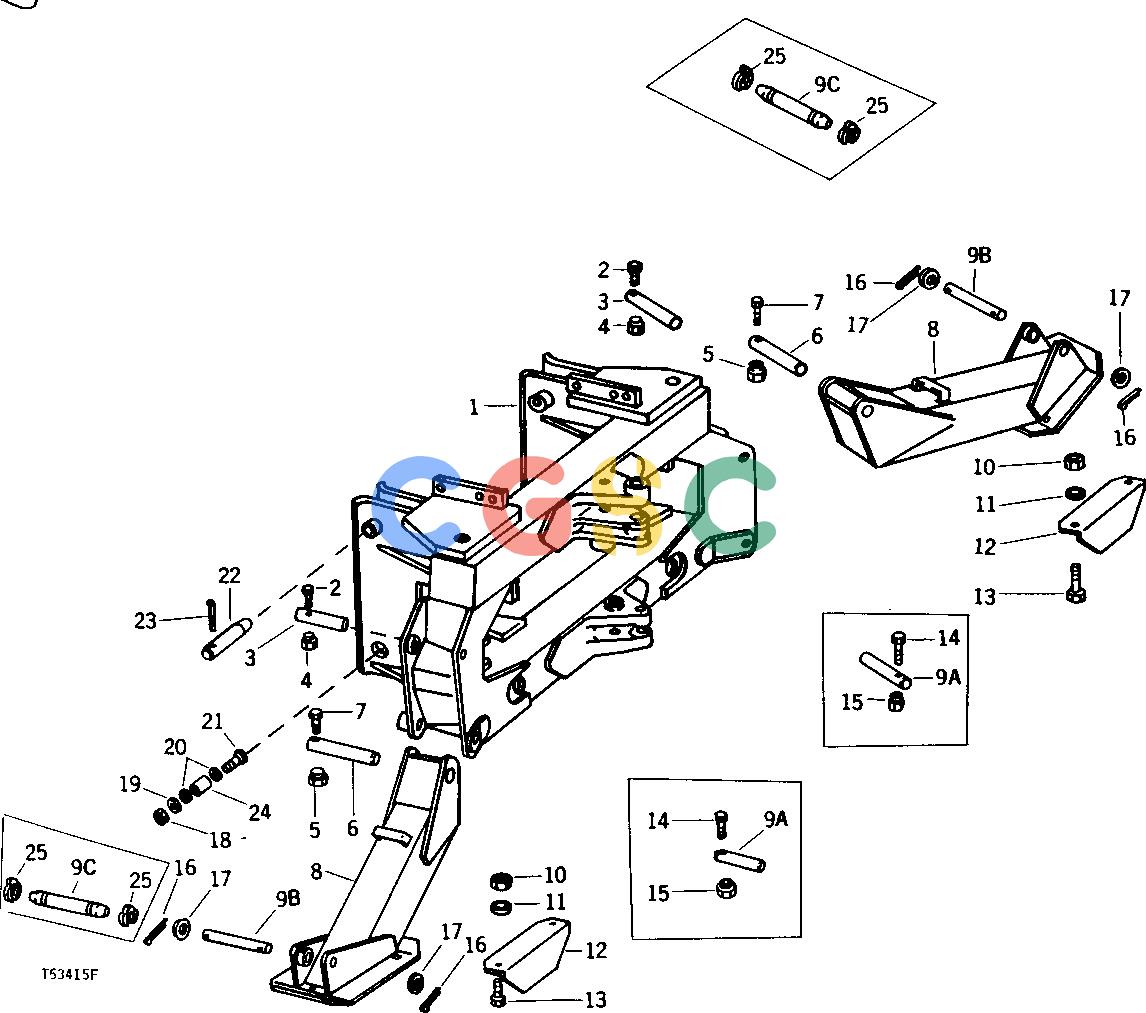

约翰迪尔零件查询9250 - BACKHOE MAIN FRAME AND STABILIZER (JD350-B, JD450-B) [A11]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 982 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT38898	[1]	Frame
2.	19H2855	[2]	Cap Screw	3/8" X 3-1/4"
3.	U40360	[2]	Pin	STABILIZER CYLINDER, UPPER
4.	T11234	[2]	Lock Nut	3/8"
5.	K40014	[2]	Lock Nut	1/2", (SUB FOR U12622 AND BP12214)
6.	U40359	[2]	Pin
7.	19H3520	[2]	Cap Screw	1/2" X 3-1/4"
8.	AU40390	[2]	Stabilizer
9A.	U40363	[2]	Pin Fastener	STABILIZER CYLINDER, LOWER, (SUB T43383, (2) 11H223 AND (2) 24H1498)
9B.	T43383	[2]	Pin Fastener
9C.	T59461	[2]	Pin Fastener	(SUB T43383, (2) 11H223 AND (2) 24H1498)
10.	14H760	[4]	Nut	5/8"
11.	12H294	[4]	Lock Washer	5/8"
12.	T81868	[2]	Angle	STABILIZER, (SUB FOR U10940)
13.	19H1708	[4]	Cap Screw	5/8" X 1-3/4"
14.	19H3031	[2]	Cap Screw	3/8" X 2-1/2"
15.	T11234	[2]	Lock Nut	3/8"
16.	11H223	[4]	Cotter Pin	3/8" X 2"
17.	24H1498	[4]	Washer	1-9/32" X 2-1/8" X 0.120"
18.	14H794	[2]	Nut	3/4"
19.	12H236	[2]	Lock Washer	3/4"
20.	24H1236	[4]	Washer	13/16" X 2" X 0.149"
21.	19H3196	[2]	Cap Screw	3/4" X 4"
22.	U16055	[2]	Pin	SIDE, PLATE
23.	11H277	[2]	Cotter Pin	1/2" X 4"
24.	U16401	[2]	Bushing
25.	T59447	[4]	Snap Ring
