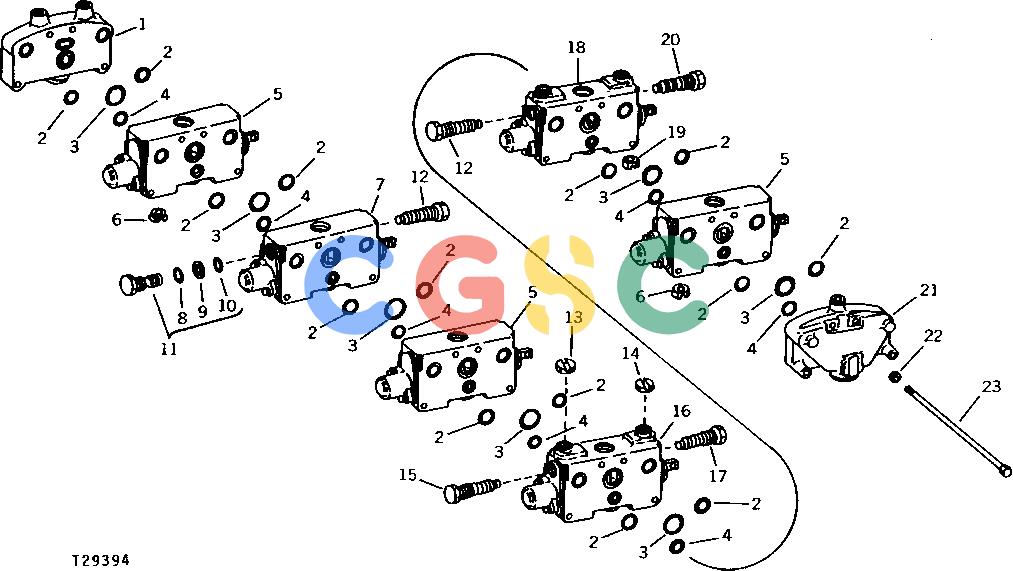

约翰迪尔零件查询9250 - BACKHOE CONTROL VALVES (JD350-B, JD450-B) [B14]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
281 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T34295
|
[1] |
Plate
|
|
| 2. |
U11326
|
[14] |
O-Ring
|
|
| 3. |
U15415
|
[7] |
O-Ring
|
|
| 4. |
W19755
|
[7] |
O-Ring
|
|
| 5. |
AT64308
|
[3] |
Valve
|
|
| 6. |
U44064
|
[2] |
Orifice
|
|
| 7. |
AT33326
|
[1] |
Valve
|
|
| 8. |
P47889
|
[1] |
O-Ring
|
|
| 9. |
W19734
|
[1] |
Ring
|
|
| 10. |
R459R
|
[1] |
O-Ring
|
|
| 11. |
AW15077
|
[1] |
Plug
|
|
| 12. |
AT39061
|
[2] |
Relief Valve
|
|
| 13. |
T40434
|
[1] |
Orifice
|
|
| 14. |
T40433
|
[1] |
Orifice
|
|
| 15. |
AT33323
|
[1] |
Pressure Relief Valve
|
|
| 16. |
AT33328
|
[1] |
Valve
|
|
| 17. |
AT39060
|
[1] |
Relief Valve
|
|
| 18. |
AT33327
|
[1] |
Valve
|
|
| 19. |
T34298
|
[1] |
Orifice
|
|
| 20. |
AT39062
|
[1] |
Pressure Relief Valve
|
|
| 21. |
T34296
|
[1] |
Plate
|
|
| 22. |
12H304
|
[4] |
Lock Washer
|
|
| 23. |
T34299
|
[4] |
Cap Screw
|
|
| ... |
AT39059
|
[1] |
Valve Stack
|
|
