约翰迪尔零件查询9250 - BACKHOE BOOM CYLINDER [B22]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 217 次

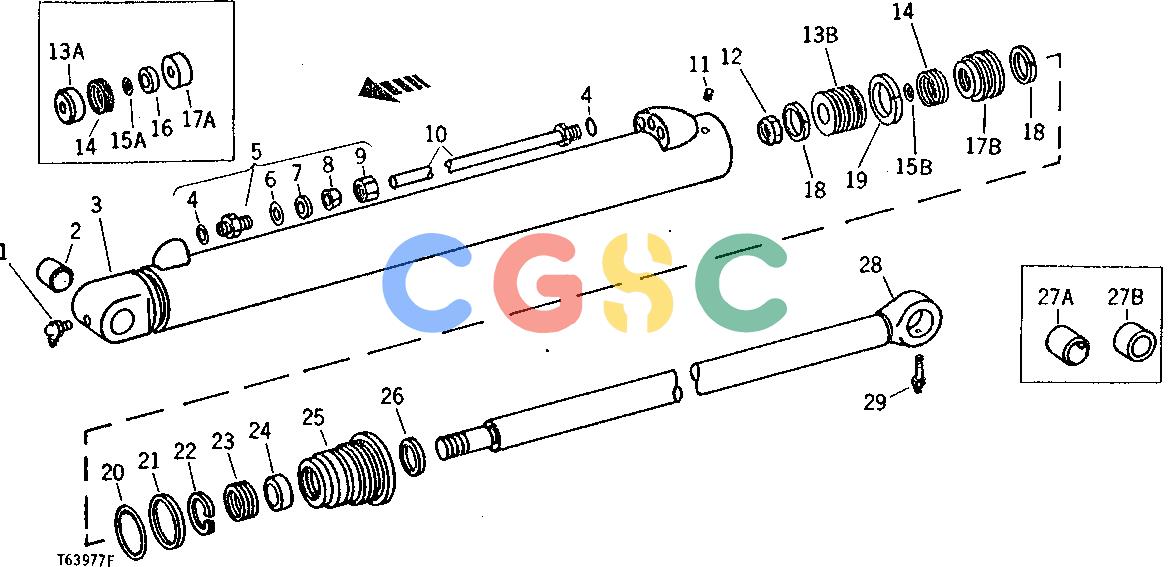

Pos.	Part No	Qty	Parts name	Comments
1.	JD7806	[1]	Lubrication Fitting	90°, 1/4"
2.	U10745	[2]	Bushing	HEAD AND BARREL
3.	AU42116	[1]	Hydraulic Cylinder Barrel
3.	AT38046	[1]	Hydraulic Cylinder Barrel
4.	R26906	[2]	O-Ring	(A)
5.	AU42120	[1]	Adapter
6.	R375R	[1]	O-Ring
7.	U42974	[1]	Back-Up Ring
8.	U42972	[1]	Sleeve
9.	........	[1]	Connector	(SUB AU42120)
10.	AU42121	[1]	Tube
10.	AT38049	[1]	Line
11.	22H842	[1]	Set Screw	1/4" X 5/16"
12.	L2235CU	[1]	Lock Nut
12.	U43861	[1]	Lock Nut
13A.	U43234	[1]	Piston	OUTER
13B.	T39038	[1]	Piston	OUTER
14.	T37381	[1]	Packing	(A) (B) (SUB FOR U12968, THIS APPLICATION) (SUB FOR R72830)
15A.	R29463	[1]	O-Ring	(A)
15B.	R1138R	[1]	O-Ring	(B)
16.	U43235	[1]	Piston	INNER
17A.	U43234	[1]	Piston	OUTER
17B.	T39037	[1]	Piston	OUTER
18.	U44491	[2]	Piston Ring
19.	U17337	[1]	Wear Ring	(B)
20.	L2301CU	[1]	O-Ring	(A) (B) EXTERNAL ROD GUIDE
20.	A5598R	[1]	O-Ring	(A) (B) (USED WHEN R80937 HAS BEEN INSTALLED AS A REPLACEMENT PART)
21.	L2309CU	[1]	Back-Up Ring	(A) (B)
21.	R79122	[1]	Back-Up Ring	(A) (B) (SUB FOR T42032, THIS APPLICATION) (USED WHEN R80937 HAS BEEN INSTALLED AS A REPLACEMENT PART)
22.	N10193	[1]	Snap Ring	INTERNAL ROD GUIDE
23.	T35850	[1]	Seal	(A) (B)
24.	U41578	[1]	Wear Ring	(A) (B)
25.	U43233	[1]	Tube	(ALSO ORDER R41578) (SUB FOR AU42391) (SUB A5598R, R79122 AND R80937)
25.	R80937	[1]	Hydr. Cylinder Rod Guide	(SUB FOR T57011)
25.	T39036	[1]	Guide
26.	L2029CU	[1]	Seal	(A) (B)
27A.	U43230	[1]	Bushing	(SUB (2) U42219)
27B.	U42219	[2]	Bushing
28.	AU42118	[1]	Rod	(INCLUDES (2) U42219 BUSHINGS)
28.	AT38048	[1]	Rod	(INCLUDES (2) U42219 BUSHINGS)
28.	AT38672	[1]	Rod
29.	JD7782	[1]	Lubrication Fitting	STRAIGHT, 1/8"
...	AU42115	[1]	Cylinder	BOOM, COMPLETE (INCLUDES RETURN TUBE)
...	AT38045	[1]	Cylinder	BOOM, COMPLETE (INCLUDES RETURN TUBE) (SUB AT38671 AND (2) U42219)
...	AT38671	[1]	Cylinder	BOOM, COMPLETE
...	AR96530	[1]	Kit	(SUB FOR AU41408, AT35938, AT36834)
...	AR96528	[1]	Kit	(SUB FOR AT38582) REPAIR CYLINDER
