约翰迪尔零件查询9250 - BACKHOE SWING CYLINDER [C02]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 518 次

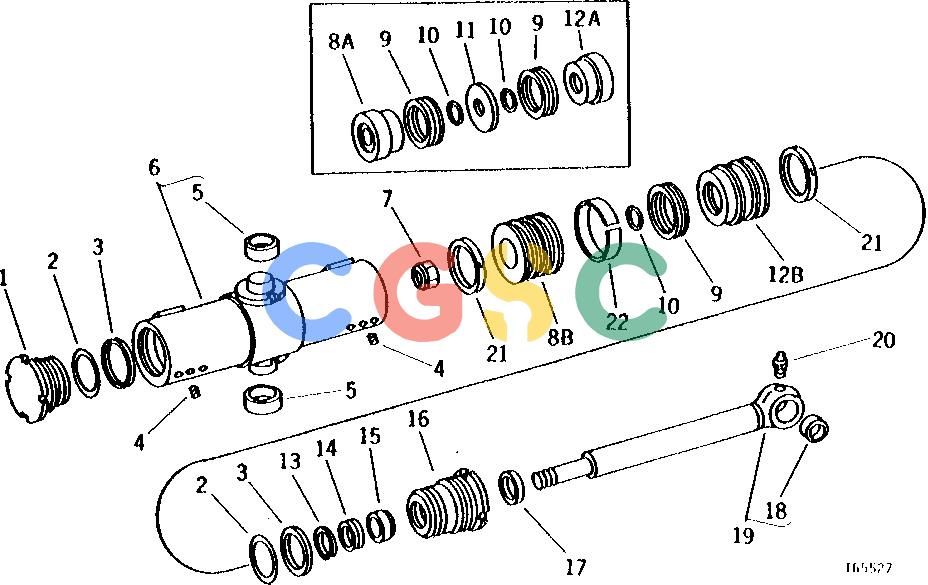

Pos.	Part No	Qty	Parts name	Comments
1.	U43249	[1]	Cylinder Head
2.	L2301CU	[1]	O-Ring	(A) (B) (1 USED WITH HEAD, 1 WITH ROD GUIDE)
3.	L2309CU	[1]	Back-Up Ring	(A) (B) (1 USED WITH HEAD, 1 WITH ROD GUIDE)
4.	22H842	[2]	Set Screw	1/4" X 5/16"
5.	U43246	[2]	Bushing
6.	........	[1]	Trunnion	AND BARREL ASSY ( AU42126 NO LONGER AVAILABLE)
6.	AT38043	[1]	Hydraulic Cylinder Barrel
7.	U43861	[1]	Lock Nut	(SUB FOR U13572)
8A.	U43250	[1]	Piston
8B.	T39038	[1]	Piston
9.	T37381	[2]	Packing	(A) (SUB FOR U12968, THIS APPLICATION) (SUB FOR R72830)
9.	T37381	[1]	Packing	(B) (SUB FOR R72830)
10.	R1138R	[2]	O-Ring	(A) (SUB FOR A3606R)
10.	R1138R	[1]	O-Ring	(B)
11.	U43252	[1]	Washer
12A.	U43251	[1]	Piston
12B.	T39037	[1]	Piston
13.	N10193	[1]	Snap Ring	(SUB FOR U14128)
14.	T35850	[1]	Seal	(A) (B) (SUB FOR T54809, THIS APPLICATION)
15.	U41578	[1]	Wear Ring	(A) (B) (SUB FOR U41823)
16.	R80936	[1]	Guide	(ALSO ORDER U41578) (SUB FOR AU42393, U43253 AND R68639)
16.	T39036	[1]	Guide
17.	L2029CU	[1]	Seal	(A) (B) (SUB FOR U16406)
18.	U43811	[1]	Bushing
19.	AU42464	[1]	Rod
20.	JD7797	[1]	Lubrication Fitting	STRAIGHT, 1/4"
21.	U44491	[2]	Piston Ring
22.	U17337	[1]	Wear Ring	(B)
...	AU42125	[1]	Cylinder	(SUB AT38042)
...	AT38042	[1]	Hydraulic Cylinder
...	AR99797	[1]	Kit	REPAIR CYLINDER, (SUB FOR AT32529)
...	AR96528	[1]	Kit	REPAIR CYLINDER, (SUB FOR AT38582)
