约翰迪尔零件查询93 - BACKHOE HIGH-CAPACITY BUCKETS ( -1968) [B05]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 631 次

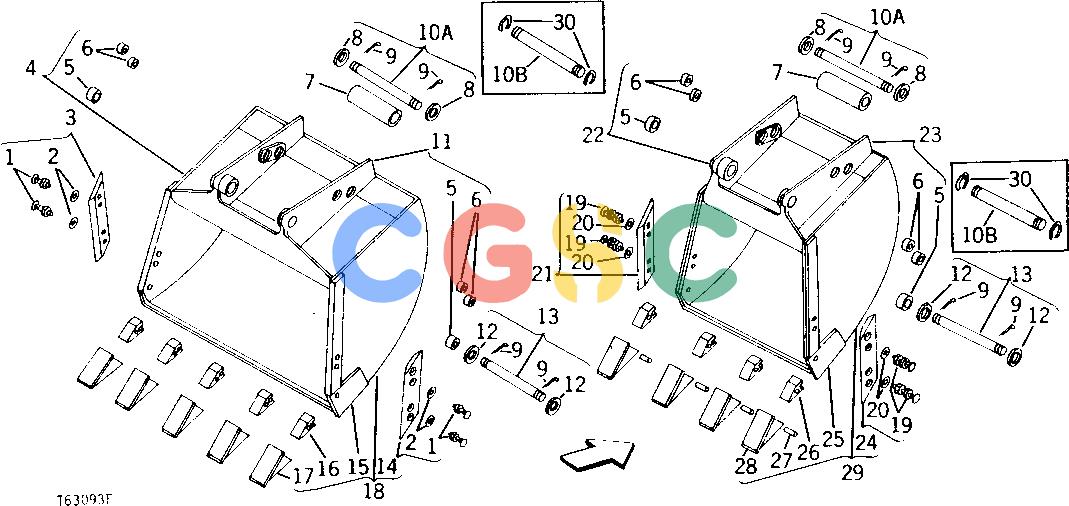

Pos.	Part No	Qty	Parts name	Comments
1.	10H1040	[6]	Bolt	5/8" X 2"
1.	U14555	[1]	Lock Nut	5/8"
2.	24H1368	[6]	Washer	21/32" X 1-5/16" X 0.090", FOR 30" BUCKET
3.	........	[1]	Cutting Edge	SIDE, L.H., FOR 762.0 MM (30") BUCKET ( AU13549 NO LONGER AVAILABLE)
4.	........	[1]	Plate	L.H, FOR 762.0 MM (30") ( AU13411 NO LONGER AVAILABLE)
5.	U16017	[2]	Bushing	DIPPER, PIVOT
6.	U11121	[4]	Bushing	BUCKET, PIVOT
7.	28H2240	[1]	Bushing	BUCKET LINKAGE, 1-1/2" X 7"
8.	U11649	[2]	Washer
9.	11H221	[4]	Cotter Pin	3/8" X 2-1/2"
10A.	AU11366	[1]	Pin Fastener	CONTROL LINK TO BUCKET, ASSEMBLY
10B.	T59458	[1]	Pin Fastener	CONTROL LINK TO BUCKET, (SUB AU11366)
11.	........	[1]	Plate	762.0 MM (30") (AU13410 NO LONGER AVAILABLE)
12.	24H1561	[2]	Washer	1-3/4" X 2-3/4" X 0.060"
13.	AU13559	[1]	Pin Fastener	DIPPERSTICK TO BUCKET, ASSEMBLY
14.	........	[1]	Cutting Edge	762.0 MM (30") (AU13548 NO LONGER AVAILABLE)
15.	........	[1]	Cutting Edge	762.0 MM (30") ( U16030 NO LONGER AVAILABLE)
16.	U14436	[1]	Shank	762.0 MM (30") BUCKET
17.	U14437	[1]	Point	FOR 762.0 MM (30") BUCKET
18.	........	[1]	Backhoe Bucket	762.0 MM (30")(INCLUDES BUSHINGS) (NO LONGER AVAILABLE) (SUB FOR BU10607)
19.	10H1034	[6]	Bolt	1/2" X 1-3/4"
19.	12H301	[6]	Lock Washer	1/2"
19.	14H826	[6]	Nut	1/2"
20.	24H1162	[6]	Washer	17/32" X 1-1/4" X 0.060"
21.	AU12235	[1]	Cutting Edge	SIDE, L.H.
22.	........	[1]	Plate	L.H. ( AU13647 NO LONGER AVAILABLE)
23.	........	[1]	Plate	R.H. ( AU13646 NO LONGER AVAILABLE)
24.	AU12234	[1]	Cutting Edge	SIDE, R.H.
25.	........	[1]	Cutting Edge	457.2 MM (18") ( U13926 NO LONGER AVAILABLE)
25.	........	[1]	Cutting Edge	508.0 MM (20") ( U16426 NO LONGER AVAILABLE)
25.	U13917	[1]	Cutting Edge	FRONT, FOR 609.6 MM (24") BUCKET
26.	U13928	[1]	Shank
27.	T40910	[1]	Pin	(SUB FOR U13927)
28.	U13929	[1]	Point
29.	........	[1]	Backhoe Bucket	HIGH CAPACITY, 457.2 MM (18") COMPLETE WITH BUSHINGS, CUTTING EDGES AND TEETH (NO LONGER FURNISHED) (SUB FOR BU10673)
29.	........	[1]	Backhoe Bucket	HIGH CAPACITY, 609.6 MM (24") COMPLETE WITH BUSHINGS, CUTTING EDGES AND TEETH (NO LONGER FURNISHED) (SUB FOR BU10672)
30.	T59452	[2]	Snap Ring
