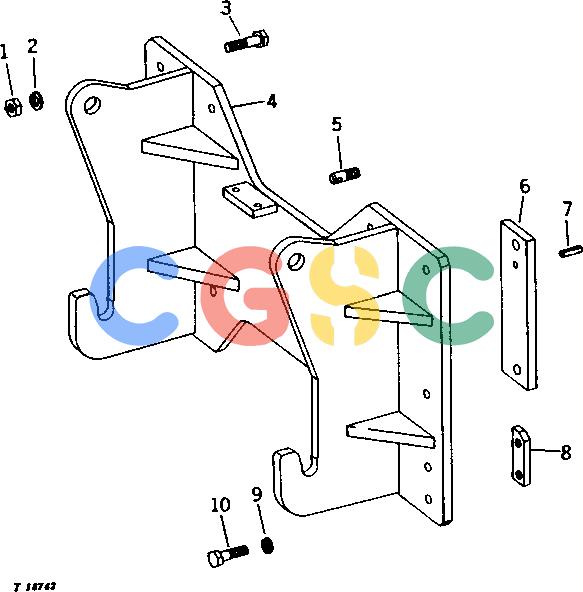

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 14H794 | [6] | Nut | 3/4" |
| 2. | 12H236 | [6] | Lock Washer | 3/4" |
| 3. | 19H2411 | [6] | Cap Screw | 3/4" X 2-1/2" |
| 4. | ........ | [1] | Backhoe | |
| 5. | ........ | [2] | Stud | |
| 6. | ........ | [1] | Plate | CHANNEL |
| 7. | 34H351 | [2] | Spring Pin | 3/8" X 1-1/2" |
| 8. | ........ | [2] | Strap | ( T33034 USE IF AVAILABLE) |
| 9. | 12H294 | [4] | Lock Washer | 5/8" |
| 10. | 19H2599 | [4] | Cap Screw | 5/8" X 2-1/2" |
