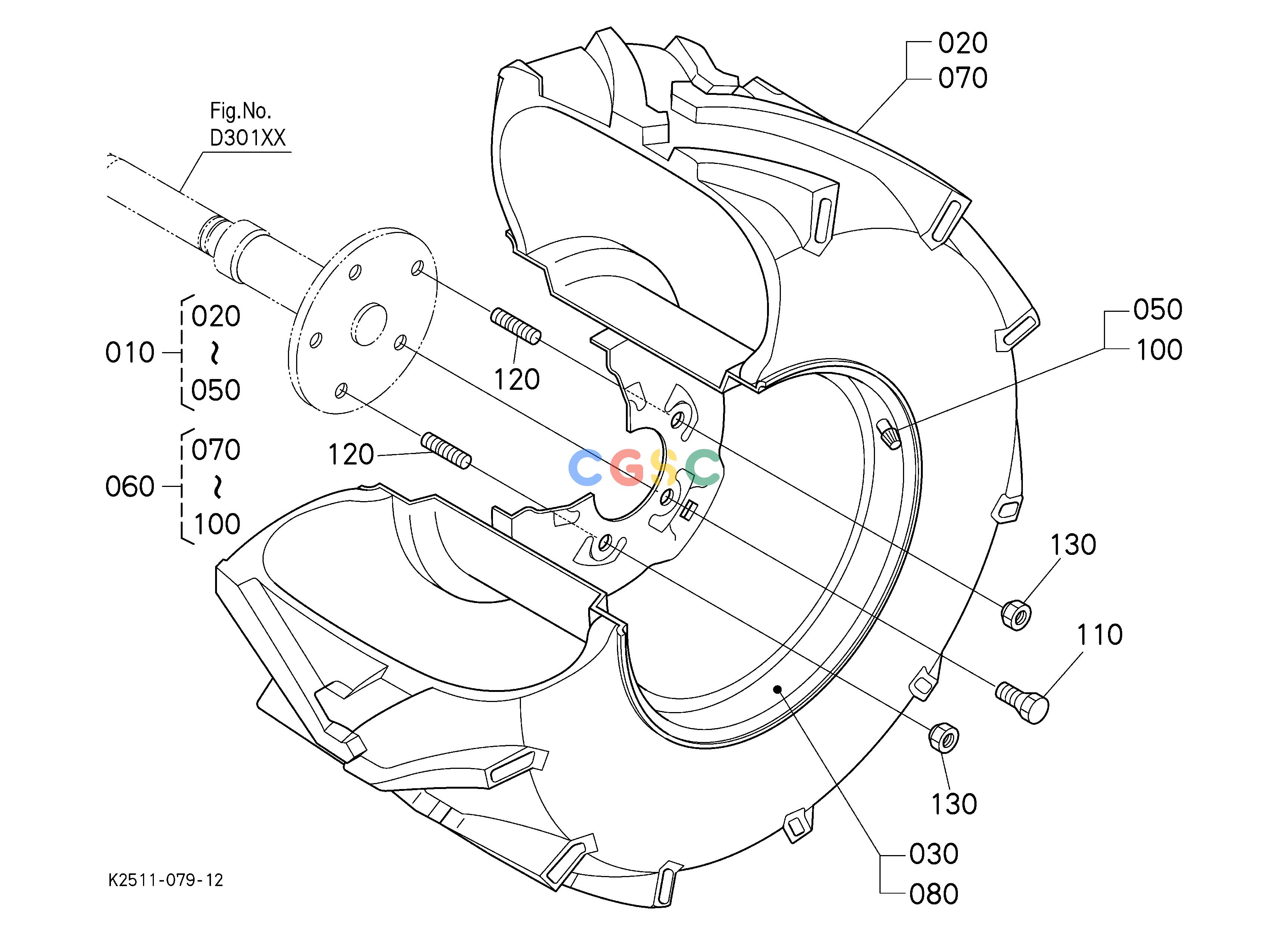

久保田零件查询R11002 REAR WHEEL (24 12-12) REAR WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
177 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K251117410
|
[1] |
TIRE,ASSY BL
|
42.2400(lbs); 19.200
|
| 020. |
K251117150
|
[1] |
TIRE,B,24X12-12
|
26.8400(lbs); 12.200
|
| 030. |
K256117180
|
[1] |
WHEEL,12X10.5
|
13.6400(lbs); 6.200
|
| 050. |
6612017190
|
[1] |
VALVE,TIRE
|
0.0264(lbs); 0.012
|
| 060. |
K251117420
|
[1] |
TIRE,ASSY BR
|
42.0200(lbs); 19.100
|
| 070. |
K251117150
|
[1] |
TIRE,B,24X12-12
|
26.8400(lbs); 12.200
|
| 080. |
K256117180
|
[1] |
WHEEL,12X10.5
|
13.6400(lbs); 6.200
|
| 100. |
6612017190
|
[1] |
VALVE,TIRE
|
0.0264(lbs); 0.012
|
| 110. |
K256117213
|
[6] |
BOLT(WHEEL,1/2)
|
0.1320(lbs); 0.060
|
| 120. |
K318117214
|
[4] |
STUD(WHEEL,1/2)
|
0.0814(lbs); 0.037
|
| 130. |
K318117222
|
[4] |
NUT(TAPER,1/2 -60)
|
0.0550(lbs); 0.025
|
