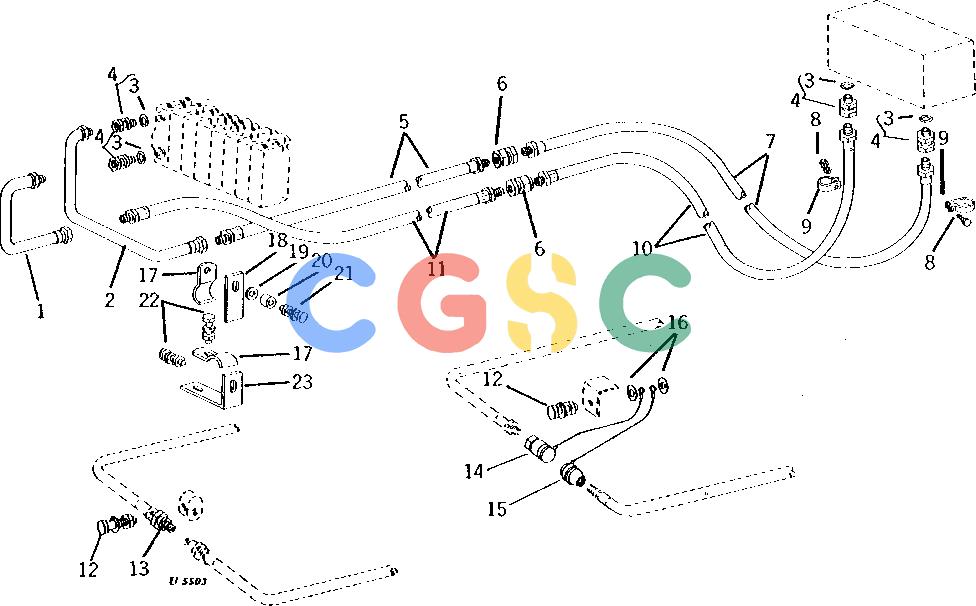

约翰迪尔零件查询93 - BACKHOE OIL LINES AND FITTINGS FOR 93, 93 SERIES A, 95 AND 95 SERIES A BACKHOES WITH JD440 TRACTOR [F16]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 662 次

Pos.	Part No	Qty	Parts name	Comments
1.	AU13396	[1]	Tube
2.	AU13623	[1]	Tube	RETURN (FOR 93 AND 95 BACKHOES)
2.	........	[1]	Tube	( AU41039 NO LONGER AVAILABLE) (FOR 93 SERIES A AND 95 SERIES A BACKHOES)
3.	U12547	[4]	O-Ring
4.	AU11654	[4]	Fitting
5.	AU11807	[1]	Hydraulic Hose	1 016 MM (3/4" X 40") 2 WIRE BRAID
6.	JD149	[2]	Adapter
7.	L2297CU	[1]	Hydraulic Hose	1 828.8 MM (3/4" X 72") 2 WIRE BRAID
8.	19H1916	[2]	Cap Screw	5/8" X 1"
8.	12H294	[2]	Lock Washer	5/8"
9.	........	[2]	Clamp	( W14698 NO LONGER AVAILABLE)
10.	AU40811	[1]	Hydraulic Hose	1 828.8 MM (3/4" X 72") 4 WIRE BRAID
11.	AU13636	[1]	Hydraulic Hose - Fabricate	1 016 MM (3/4" X 40") 4 WIRE BRAID
12.	19H2458	[1]	Cap Screw	3/8" X 3"
12.	12H304	[1]	Lock Washer	3/8"
12.	14H812	[1]	Nut	3/8"
13.	........	[1]	Fitting	( U15112 NO LONGER AVAILABLE) (FOR USE WITHOUT QUICK COUPLERS)
14.	........	[1]	Cap (Hat)	PROTECTIVE (FOR USE WITH QUICK COUPLERS)
15.	........	[1]	Plug	PROTECTIVE (FOR USE WITH QUICK COUPLERS)
16.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
17.	U13635	[2]	Clamp
18.	........	[2]	Strap	( U41556 NO LONGER AVAILABLE) (95 AND 95 SERIES A)
19.	24H1176	[2]	Washer	13/32" X 1-1/4" X 0.100"
20.	28H1892	[2]	Bushing	PIPE, 1/2" X 5/8" (95 AND 95 SERIES A)
21.	19H3065	[2]	Cap Screw	3/8" X 2", (95 AND 95 SERIES A)
21.	12H304	[2]	Lock Washer	3/8"
21.	14H812	[2]	Nut	3/8"
22.	19H2676	[2]	Cap Screw	HS, SAE 8, 3/8" X 1", (93 AND 93 SERIES A)
22.	12H304	[2]	Lock Washer	3/8"
22.	14H812	[2]	Nut	3/8"
23.	........	[2]	Clamp	( U16400 NO LONGER AVAILABLE) (93 AND 93 SERIES A)
