约翰迪尔零件查询93 - BACKHOE OIL LINES AND FITTINGS-LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (JD350 AND JD450 CRAWLER LOADEREPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 740 次

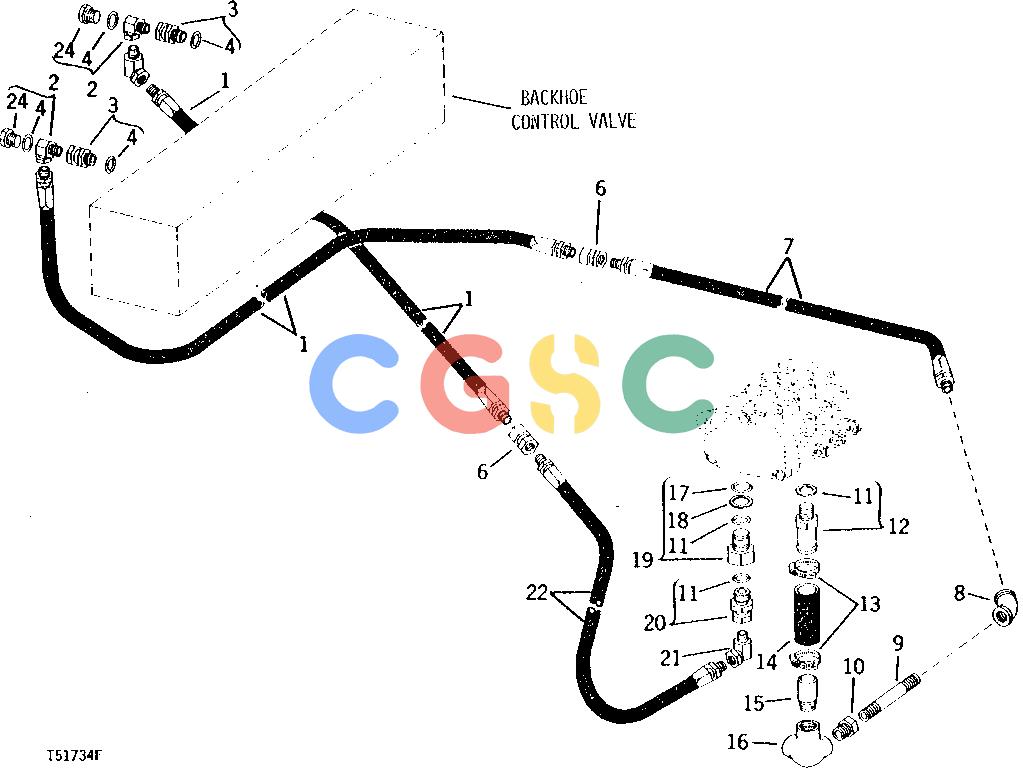

Pos.	Part No	Qty	Parts name	Comments
1.	AU11807	[2]	Hydraulic Hose	1 016 MM (3/4" X 40") TWO WIRE (WITH JD350 CRAWLER LOADER)
1.	AU13636	[2]	Hydraulic Hose - Fabricate	1 016 MM (3/4" X 40") FOUR-WIRE (WITH JD450 CRAWLER LOADER)
2.	AU41205	[2]	Elbow Fitting
3.	AU11654	[2]	Fitting
4.	U12547	[4]	O-Ring
5.	JD179	[1]	Union Fitting	45° (USED ON 95 BACKHOE ONLY)
6.	JD149	[2]	Adapter
7.	AU11920	[1]	Hydraulic Hose - Fabricate	762 MM (3/4" X 30")
8.	15H628	[1]	Elbow Fitting	3/4" X 45°
9.	29H271	[1]	Threaded Nipple	3/4" X 5-1/2"
10.	15H616	[1]	Pipe Bushing	REDUCING, 1" X 3/4"
11.	R29936	[3]	O-Ring
12.	AU14063	[1]	Hose Fitting
13.	AR21839	[2]	Clamp
14.	L2033CU	[1]	Hydraulic Hose
15.	29H747	[1]	Threaded Nipple	1" X 3", (SUB FOR U17026)
16.	U17033	[1]	Elbow Fitting	90°
17.	U15242	[1]	O-Ring
18.	U43313	[1]	Back-Up Ring	(SUB FOR U40277 AND U41571)
19.	AT63185	[1]	Plug	POWER BEYOND, (SUB FOR AU14307 AND AU14308) (SUB FOR AT32456, THIS APPLICATION)
20.	AU13375	[1]	Fitting
21.	U40182	[1]	Elbow Fitting	45°
22.	AU40117	[1]	Hydraulic Hose - Fabricate	1270 MM (3/4" X 50")
23.	U13982	[2]	Fitting
