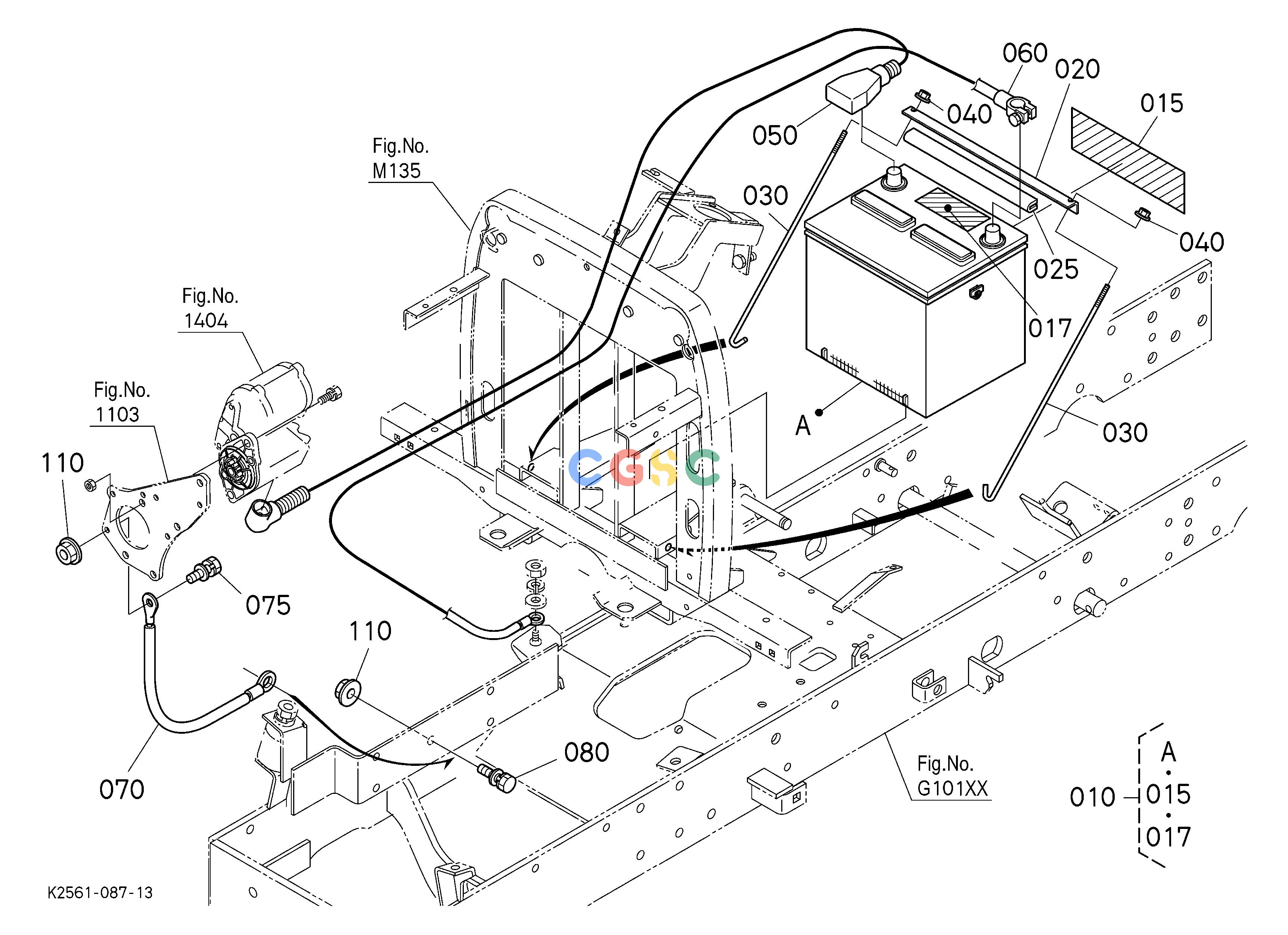

久保田零件查询A53502 BATTERY ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K256396610
|
[1] |
BATTERY DRY
|
0.0000(lbs); 0.000
|
| 015. |
K256396620
|
[1] |
LABEL BATTERY
|
0.0110(lbs); 0.005
|
| 017. |
K771196630
|
[1] |
LABEL BATTERY
|
0.0110(lbs); 0.005
|
| 020. |
K256161120
|
[1] |
HOLDER BATTERY
|
0.3784(lbs); 0.172
|
| 025. |
K256161160
|
[1] |
TRIM BATTERY
|
0.0660(lbs); 0.030
|
| 030. |
K256161130
|
[2] |
ROD BATTERY
|
0.1100(lbs); 0.050
|
| 040. |
0275150060
|
[2] |
NUT FLANGE
|
0.0110(lbs); 0.005
|
| 050. |
K256161310
|
[1] |
CABLE BATTERY(+)
|
0.7040(lbs); 0.320
|
| 060. |
K256161350
|
[1] |
CABLE BATTERY(-)
|
0.5962(lbs); 0.271
|
| 070. |
K121161360
|
[1] |
CABLE BATTERY(-)
|
0.1100(lbs); 0.050
|
| 075. |
0112560820
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 080. |
0105350825
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 080. |
0112550825
|
[1] |
BOLT
|
0.0396(lbs); 0.018
|
| 110. |
0205450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 110. |
0275150080
|
[2] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
