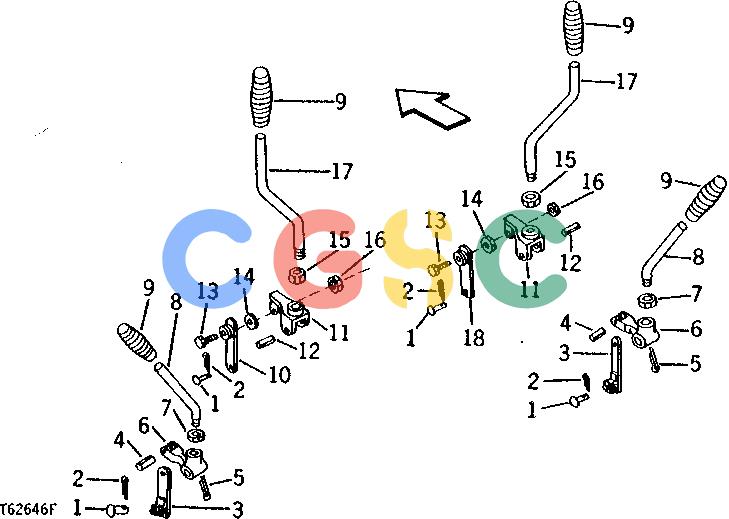

约翰迪尔零件查询9300 - BACKHOE BACKHOE CONTROL LEVERS AND LINKAGE (SERIAL NO. 044298- ) [C07]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
U11004
|
[4] |
Pin
|
|
| 2. |
11M7079
|
[4] |
Cotter Pin
|
|
| 3. |
AT59835
|
[2] |
Link
|
|
| 4. |
34H339
|
[2] |
Spring Pin
|
|
| 5. |
11M7083
|
[2] |
Cotter Pin
|
|
| 6. |
T53976
|
[2] |
Support
|
|
| 7. |
14H826
|
[2] |
Nut
|
|
| 8. |
U43216
|
[2] |
Lever
|
|
| 9. |
U43703
|
[4] |
Grip
|
|
| 10. |
AT59836
|
[2] |
Link
|
|
| 11. |
T53971
|
[2] |
Link
|
|
| 12. |
25H830
|
[2] |
Groove Pin
|
|
| 13. |
19H1849
|
[2] |
Cap Screw
|
|
| 14. |
U13489
|
[2] |
Washer
|
|
| 15. |
14H1039
|
[2] |
Nut
|
|
| 16. |
14H785
|
[2] |
Nut
|
|
| 17. |
U43214
|
[2] |
Lever
|
|
| 18. |
AT59837
|
[1] |
Link
|
|
