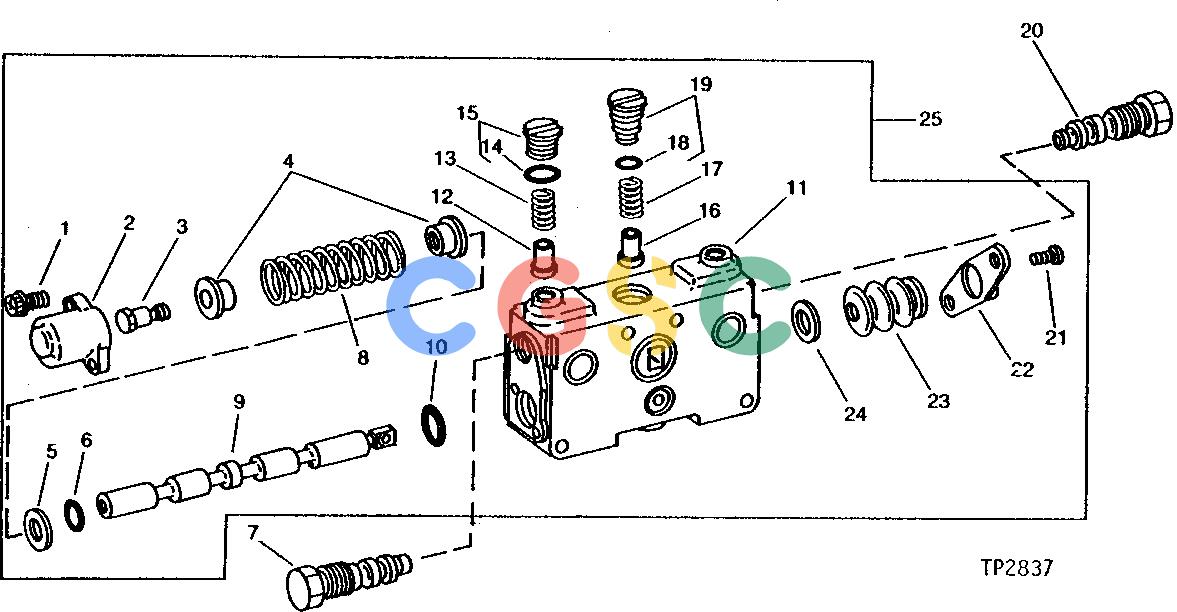

约翰迪尔零件查询9300 - BACKHOE BOOM VALVE [C15]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T31036
|
[2] |
Bolt
|
|
| 2. |
AW15079
|
[1] |
Cap
|
|
| 3. |
N140559
|
[1] |
Screw
|
|
| 4. |
W19736
|
[2] |
Washer
|
|
| 5. |
W19735
|
[1] |
Piston Ring
|
|
| 6. |
T13119
|
[1] |
O-Ring
|
|
| 7. |
AT33323
|
[1] |
Relief Valve
|
|
| 8. |
W19739
|
[1] |
Spring
|
|
| 9. |
........
|
[1] |
Spool
|
|
| 10. |
T57246
|
[1] |
O-Ring
|
|
| 11. |
........
|
[1] |
Housing
|
|
| 12. |
U41172
|
[1] |
Plunger
|
|
| 13. |
N85304
|
[1] |
Spring
|
|
| 14. |
R394R
|
[2] |
O-Ring
|
|
| 15. |
AN85149
|
[2] |
Fitting
|
|
| 16. |
N132188
|
[1] |
Plunger
|
|
| 17. |
N132189
|
[1] |
Spring
|
|
| 18. |
32240
|
[1] |
O-Ring
|
|
| 19. |
AW15080
|
[1] |
Fitting
|
|
| 20. |
AT35233
|
[1] |
Relief Valve
|
|
| 21. |
21H1140
|
[2] |
Screw
|
|
| 22. |
U42827
|
[1] |
Retainer
|
|
| 23. |
U42834
|
[1] |
Boot
|
|
| 24. |
U42835
|
[1] |
Washer
|
|
| 25. |
AT33327
|
[1] |
Valve
|
|
