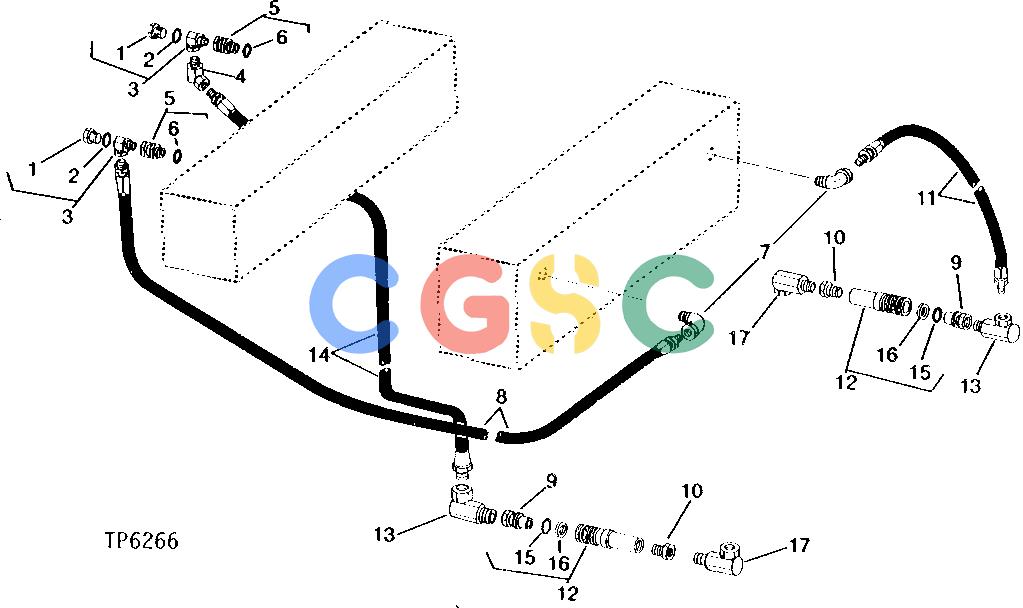

约翰迪尔零件查询9300 - BACKHOE OIL LINES AND FITTINGS-BULLDOZER SELECTOR VALVE TO BACKHOE CONTROL VALVE (SERIAL NO. 016386-716590) EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
381 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
U13982
|
[2] |
Fitting
|
|
| 2. |
U12547
|
[2] |
O-Ring
|
|
| 3. |
AT33316
|
[2] |
Adapter
|
|
| 4. |
U11754
|
[1] |
Elbow Fitting
|
|
| 5. |
AT33315
|
[2] |
Union Fitting
|
|
| 6. |
R29936
|
[2] |
O-Ring
|
|
| 7. |
15H213
|
[2] |
Elbow Fitting
|
|
| 8. |
AT33318
|
[2] |
Hydraulic Hose - Fabricate
|
|
| 9. |
AT33970
|
[2] |
HYD. INTERNAL HALF COUPLER
|
|
| 10. |
15H616
|
[2] |
Pipe Bushing
|
|
| 11. |
AT40853
|
[1] |
Hydraulic Hose
|
|
| 11. |
AT62493
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 12. |
AT39581
|
[2] |
HYD. EXTERNAL HALF COUPLER
|
|
| 13. |
AR29459
|
[2] |
Union Fitting
|
|
| 14. |
AT40854
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 15. |
U12037
|
[2] |
O-Ring
|
|
| 16. |
U40471
|
[2] |
Back-Up Ring
|
|
| 17. |
AP23222
|
[2] |
Elbow Fitting
|
|
