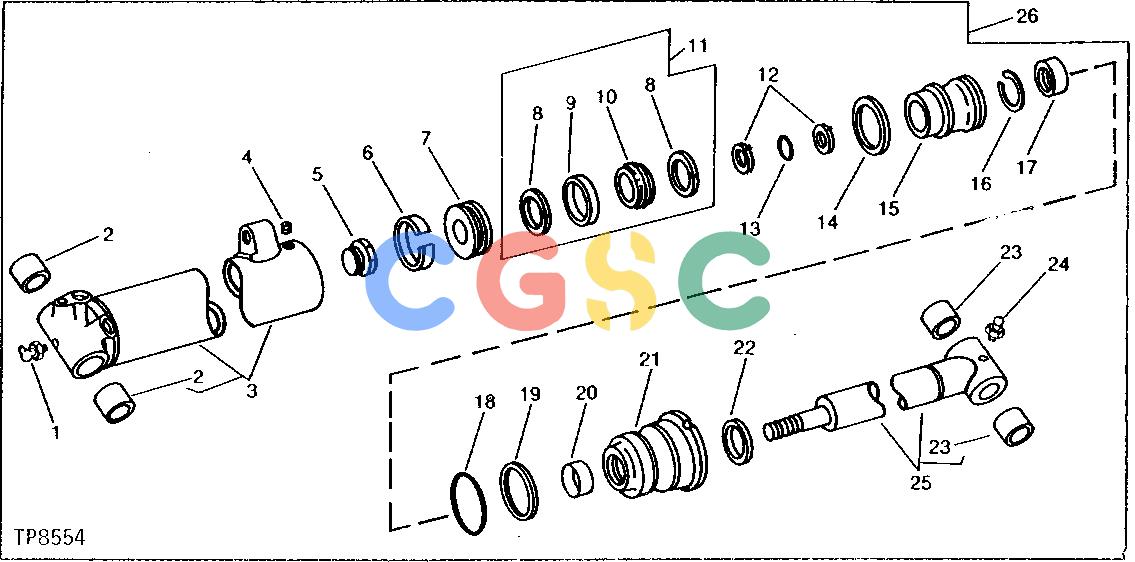

约翰迪尔零件查询9300 - BACKHOE CROWD CYLINDER (SERIAL NO. 700718- ) [D12]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
850 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
JD7788
|
[1] |
Lubrication Fitting
|
|
| 2. |
U10745
|
[2] |
Bushing
|
|
| 3. |
AT45783
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 4. |
22H1077
|
[1] |
Set Screw
|
|
| 5. |
L2235CU
|
[1] |
Lock Nut
|
|
| 6. |
U17337
|
[1] |
Wear Ring
|
|
| 7. |
U44578
|
[1] |
Piston
|
|
| 8. |
R77819
|
[2] |
Back-Up Ring
|
|
| 9. |
R77820
|
[1] |
Seal
|
|
| 10. |
R77818
|
[1] |
Seal
|
|
| 11. |
RE11904
|
[1] |
Seal
|
|
| 12. |
R78389
|
[2] |
Washer
|
|
| 13. |
R29463
|
[1] |
O-Ring
|
|
| 14. |
U44491
|
[1] |
Piston Ring
|
|
| 15. |
R78223
|
[1] |
Piston
|
|
| 16. |
N10193
|
[1] |
Snap Ring
|
|
| 17. |
R76801
|
[1] |
Packing
|
|
| 18. |
A5598R
|
[1] |
O-Ring
|
|
| 19. |
R79122
|
[1] |
Back-Up Ring
|
|
| 20. |
U41578
|
[1] |
Wear Ring
|
|
| 21. |
R80937
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 22. |
L2029CU
|
[1] |
Seal
|
|
| 23. |
U11121
|
[2] |
Bushing
|
|
| 24. |
JD7759
|
[1] |
Lubrication Fitting
|
|
| 25. |
AT32767
|
[1] |
Rod
|
|
| 26. |
RE12721
|
[2] |
Hydraulic Cylinder
|
|
