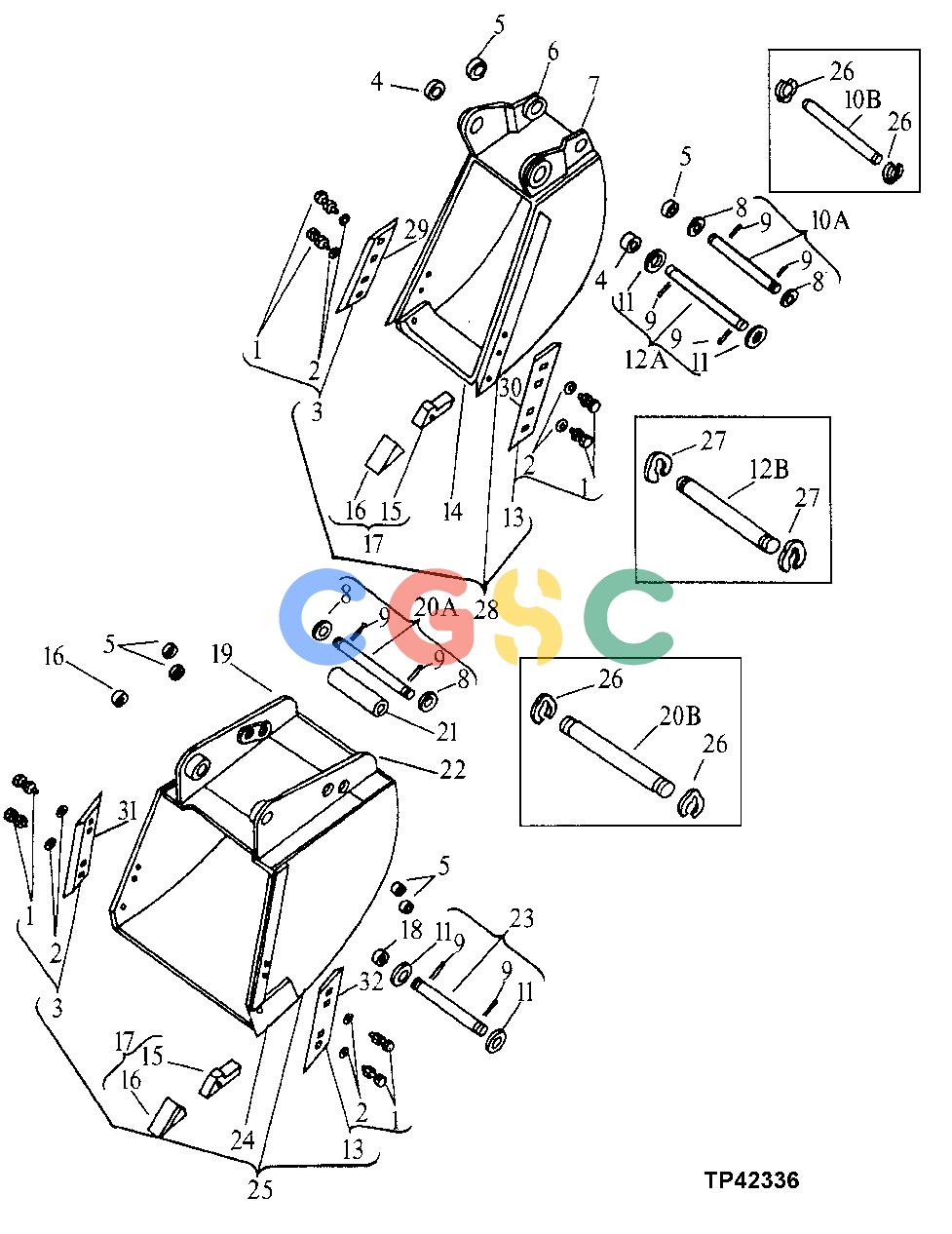

约翰迪尔零件查询9400 - BACKHOE STANDARD BUCKETS (WITH STRAIGHT PIVOT PLATES) [B01]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
860 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
03H1439
|
[6] |
Bolt
|
|
| 1. |
12H301
|
[6] |
Lock Washer
|
|
| 1. |
14H826
|
[6] |
Nut
|
|
| 2. |
24H1162
|
[6] |
Washer
|
|
| 3. |
........
|
[1] |
Cutting Edge
|
|
| 4. |
U10481
|
[2] |
Bushing
|
|
| 5. |
U11121
|
[2] |
Bushing
|
|
| 6. |
AU13425
|
[1] |
Plate
|
|
| 7. |
AU13424
|
[1] |
Plate
|
|
| 8. |
U11649
|
[2] |
Washer
|
|
| 9. |
11H221
|
[4] |
Cotter Pin
|
|
| 10A. |
AU13550
|
[1] |
Pin Fastener
|
|
| 10B. |
T59454
|
[1] |
Pin Fastener
|
|
| 11. |
U11650
|
[2] |
Washer
|
|
| 12A. |
AU13551
|
[1] |
Pin Fastener
|
|
| 12B. |
T59455
|
[1] |
Pin Fastener
|
|
| 13. |
........
|
[1] |
Cutting Edge
|
|
| 14. |
U15995
|
[1] |
Cutting Edge
|
|
| 14. |
U16079
|
[1] |
Cutting Edge
|
|
| 15. |
U14436
|
[1] |
Shank
|
|
| 16. |
U14437
|
[1] |
Point
|
|
| 17. |
........
|
[AR] |
Tooth
|
|
| 18. |
U16017
|
[2] |
Bushing
|
|
| 19. |
AU13415
|
[1] |
Plate
|
|
| 20A. |
AU42334
|
[1] |
Pin Fastener
|
|
| 20A. |
T125931
|
[1] |
Pin Fastener
|
|
| 20B. |
T59458
|
[1] |
Pin Fastener
|
|
| 21. |
28H2240
|
[1] |
Bushing
|
|
| 22. |
AU13414
|
[1] |
Plate
|
|
| 23. |
AU42333
|
[1] |
Pin Fastener
|
|
| 23. |
T125926
|
[1] |
Pin Fastener
|
|
| 24. |
U13957
|
[1] |
"DURA-MAX" CUTTING EDGE
|
|
| 25. |
........
|
[1] |
Backhoe Bucket
|
|
| 26. |
T59452
|
[4] |
Snap Ring
|
|
| 27. |
T59445
|
[2] |
Snap Ring
|
|
| 28. |
........
|
[1] |
Backhoe Bucket
|
|
| 28. |
BU10618
|
[1] |
Backhoe Bucket
|
|
| 29. |
U13953
|
[1] |
Cutting Edge
|
|
| 30. |
U13952
|
[1] |
Cutting Edge
|
|
| 31. |
U13953
|
[1] |
Cutting Edge
|
|
| 32. |
U13952
|
[1] |
Cutting Edge
|
|
