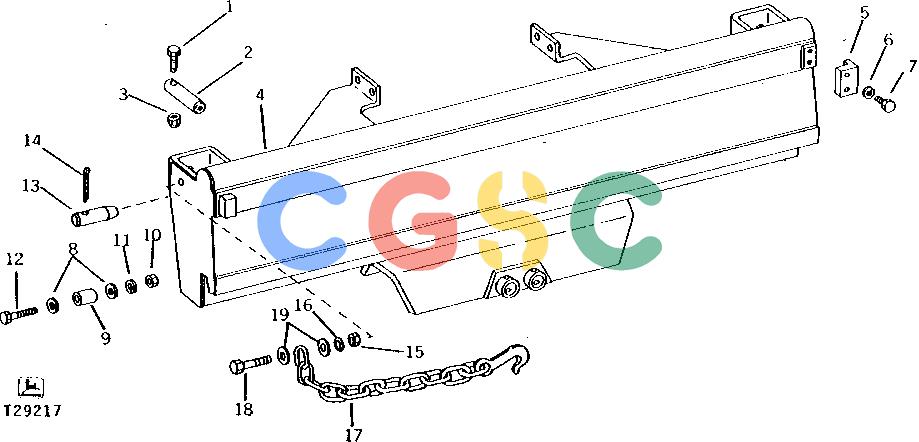

约翰迪尔零件查询9500 - BACKHOE MAIN FRAME [A11]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19H2732
|
[2] |
Cap Screw
|
|
| 2. |
U40779
|
[2] |
Pin
|
|
| 3. |
T11234
|
[2] |
Lock Nut
|
|
| 4. |
........
|
[1] |
Main Frame
|
|
| 5. |
........
|
[1] |
Plate
|
|
| 6. |
12H301
|
[2] |
Lock Washer
|
|
| 7. |
19H2473
|
[2] |
Cap Screw
|
|
| 8. |
24H1236
|
[4] |
Washer
|
|
| 9. |
U16401
|
[2] |
Bushing
|
|
| 10. |
14H794
|
[2] |
Nut
|
|
| 11. |
12H236
|
[2] |
Lock Washer
|
|
| 12. |
19H3196
|
[2] |
Cap Screw
|
|
| 13. |
U16055
|
[2] |
Pin
|
|
| 14. |
11H277
|
[2] |
Cotter Pin
|
|
| 15. |
14H1040
|
[1] |
Nut
|
|
| 16. |
12H304
|
[1] |
Lock Washer
|
|
| 17. |
........
|
[1] |
Chain Link
|
|
| 18. |
19H1820
|
[1] |
Cap Screw
|
|
| 19. |
24H1341
|
[5] |
Washer
|
|
