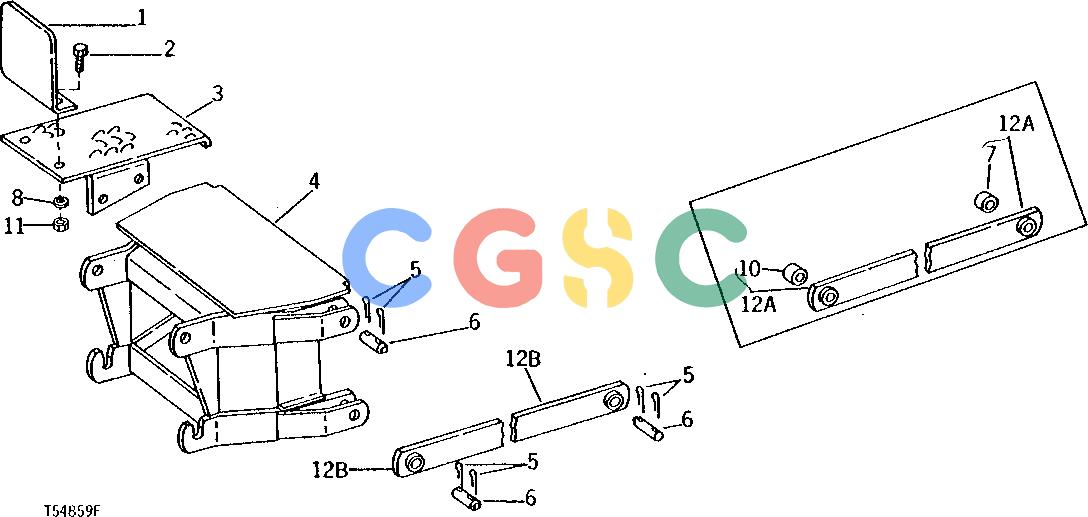

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | T37486 | [2] | Angle | (SUB FOR T37501, THIS APPLICATION) |
| 2. | 19H2676 | [4] | Cap Screw | 3/8" X 1" |
| 3. | AT36263 | [1] | Footrest | R.H. (SUB FOR AT36270, THIS APPLICATION) |
| 3. | AT36264 | [1] | Footrest | L.H. (SUB FOR AT36269, THIS APPLICATION) |
| 4. | AT36265 | [1] | Frame | SUB FRAME, (SUB FOR AT54442) |
| 4. | ........ | [1] | Frame | ( AT54442 USE IF AVAILABLE) |
| 5. | 11H221 | [10] | Cotter Pin | 3/8" X 2-1/2" |
| 6. | U41337 | [4] | Pin | SUB FRAME TO TRACTOR AND TIE BAR |
| 7. | U40150 | [2] | Bushing | TIE BAR, (SUB FOR U41605) |
| 8. | 12H304 | [4] | Lock Washer | 3/8" |
| 9. | U43490 | [2] | Pin | TIE BAR TO LOADER |
| 10. | U41604 | [2] | Bushing | TIE BAR |
| 11. | 14H812 | [4] | Nut | 3/8" |
| 12A. | AU41077 | [2] | Tie Bar | (SUB AU41076) |
| 12B. | AU41076 | [2] | Tie Bar |
