约翰迪尔零件查询9500 - BACKHOE STANDARD BUCKETS (WITH STRAIGHT PIVOT PLATES) [B01]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 230 次

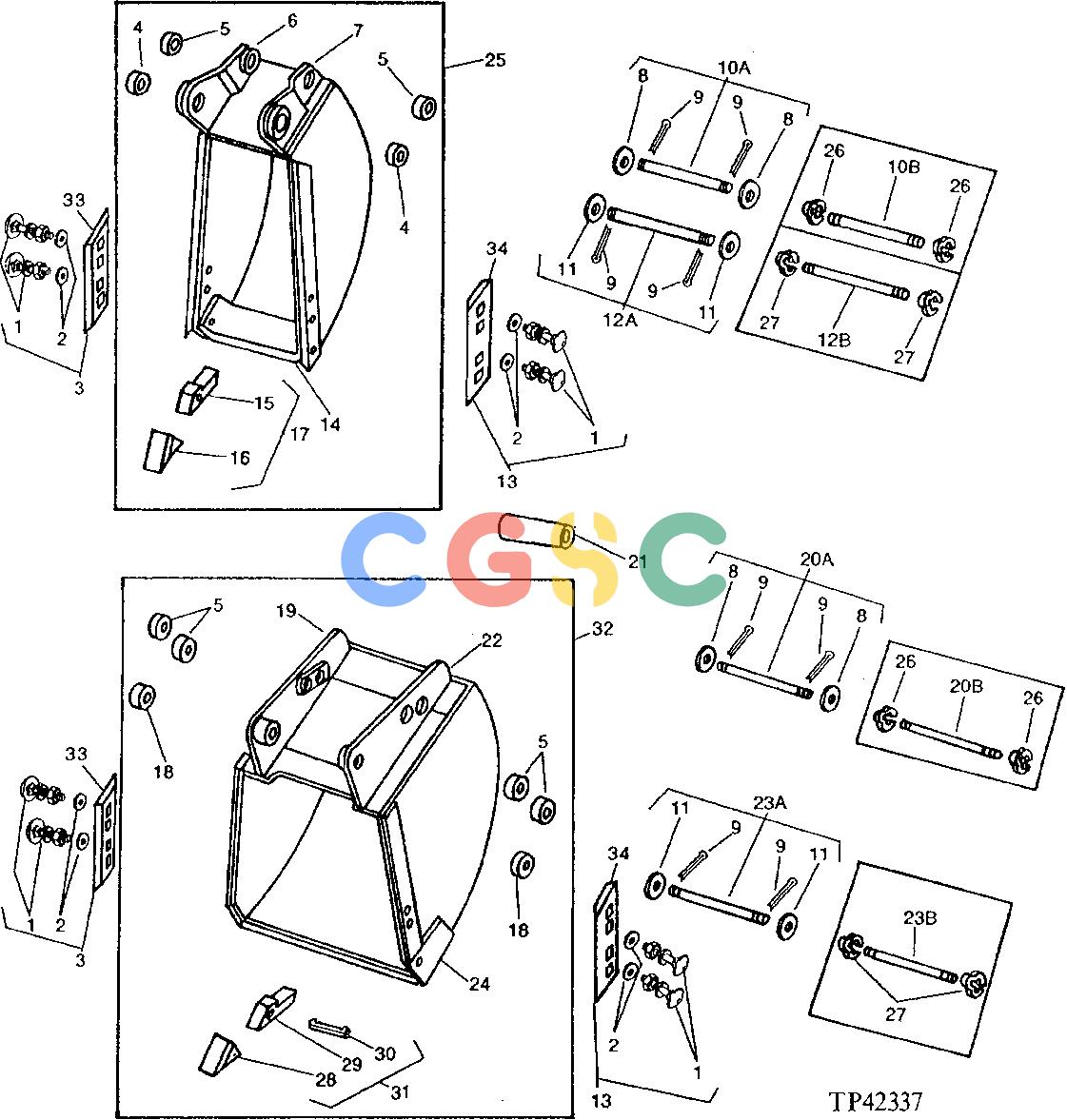

Pos.	Part No	Qty	Parts name	Comments
1.	03H1439	[6]	Bolt	CGE., HS, SAE 8, 1/2" X 1-3/4"
1.	12H301	[6]	Lock Washer	1/2"
1.	14H826	[6]	Nut	1/2"
2.	24H1162	[6]	Washer	17/32" X 1-1/4" X 0.060"
3.	........	[1]	Cutting Edge	L.H. ( AU12225 NO LONGER AVAILABLE)
4.	U10481	[2]	Bushing
5.	T105988	[AR]	Bushing	(2 USED WITH 12" AND 16" BUCKETS, 4 USED WITH 36" BUCKETS) (SUB FOR U42739)
6.	AU13425	[1]	Plate	L.H., WITH BUSHING
7.	AU13424	[1]	Plate	R.H., WITH BUSHING
8.	U11649	[4]	Washer
8.	U11649	[4]	Washer
9.	11H221	[8]	Cotter Pin	3/8" X 2-1/2"
9.	11H221	[8]	Cotter Pin	3/8" X 2-1/2"
10A.	AU13550	[1]	Pin Fastener
10A.	AU13550	[1]	Pin Fastener
10B.	T59454	[1]	Pin Fastener	(SUB AU13550)
11.	U11650	[4]	Washer
11.	U11650	[4]	Washer
12A.	AU13551	[1]	Pin Fastener
12A.	AU13551	[1]	Pin Fastener
12B.	T59455	[1]	Pin Fastener	(SUB AU13551)
13.	........	[1]	Cutting Edge	R.H. ( AU12224 NO LONGER AVAILABLE)
14.	U15995	[1]	Cutting Edge	(FOR 305 MM (12") BUCKET)
14.	U16079	[1]	Cutting Edge	(FOR 406 MM (16") BUCKET)
15.	U14436	[1]	Shank
16.	U14437	[1]	Point
17.	........	[1]	Tooth	(SUB U14436 ALONG WITH U14437) ( AU12534 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
18.	U16017	[2]	Bushing
19.	AU13415	[1]	Plate
20A.	AU42334	[1]	Pin Fastener	(SUB (2) U11649, (2) 11H221 AND T125931)
20A.	AU42334	[1]	Pin Fastener	(SUB (2) U11649, (2) 11H221 AND T125931)
20A.	T125931	[1]	Pin Fastener	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
20B.	T59451	[1]	Pin Fastener	(SUB (2) U11649, (2) 11H221 AND T125931)
21.	28H2240	[1]	Bushing	1-1/2" X 7"
22.	AU13414	[1]	Plate
23A.	AU42333	[1]	Pin Fastener	(SUB (2) U11650, (2) 11H221 AND T125926)
23A.	AU42333	[1]	Pin Fastener	(SUB (2) U11650, (2) 11H221 AND T125926)
23A.	T125926	[1]	Pin Fastener	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
23B.	T59450	[1]	Pin Fastener	(SUB (2) U11650, (2) 11H221 AND T125926)
24.	T38869	[1]	Cutting Edge	(FOR 36" BUCKET)
25.	........	[1]	Backhoe Bucket	AT83702 NO LONGER AVAILABLE, (MARKED AT83704) (SUB FOR BU10614) 305 MM (12") COMPLETE WITH BUSHINGS
25.	BU10618	[1]	Backhoe Bucket	406 MM (16") COMPLETE WITH BUSHINGS
26.	T59452	[4]	Snap Ring
27.	T59445	[4]	Snap Ring
28.	U42751	[AR]	Point
29.	U43792	[AR]	Bucket Tooth Adapter	(SUB FOR (AR) U42750)
30.	T40910	[AR]	Pin
31.	........	[AR]	Tooth	( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792 AND U42751)
32.	AT37725	[1]	Backhoe Bucket	914 MM (36")
33.	U13953	[1]	Cutting Edge	L.H.
34.	U13952	[1]	Cutting Edge	R.H.
