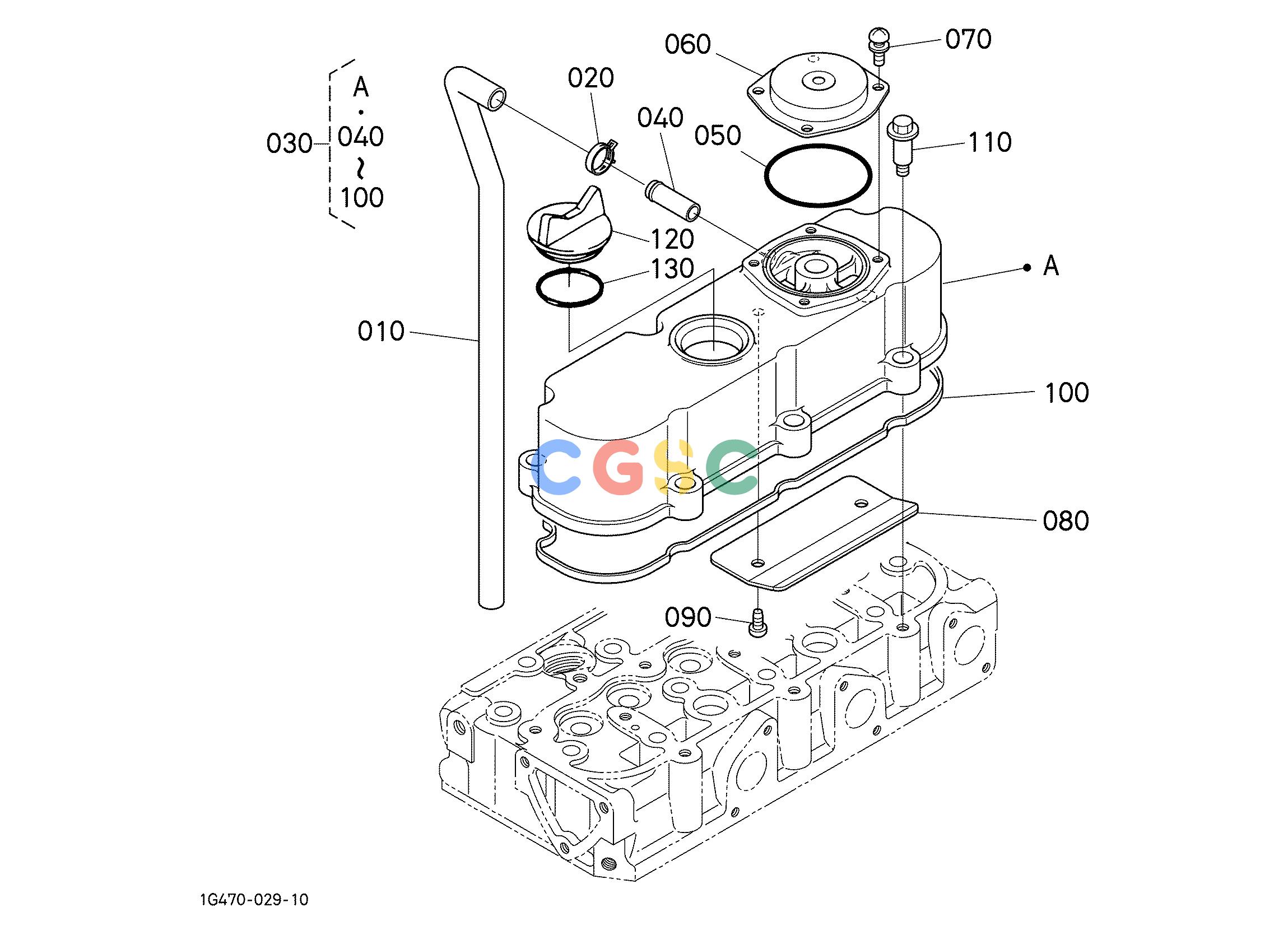

久保田零件查询100501 HEAD COVER ## S.No.<=4Z4612 ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G46005510
|
[1] |
TUBE BREATHER
|
0.0880(lbs); 0.040
|
| 020. |
0931888125
|
[1] |
CLAMP HOSE
|
0.0022(lbs); 0.001
|
| 030. |
1G96214500
|
[1] |
ASSY COVER CYL.HEAD
|
1.4300(lbs); 0.650
|
| 040. |
1624173370
|
[1] |
PIPE WATER RETURN
|
0.0154(lbs); 0.007
|
| 050. |
1A02105430
|
[1] |
O RING BREATHER
|
0.0022(lbs); 0.001
|
| 060. |
1A02105120
|
[1] |
COVER BREATHER
|
0.0858(lbs); 0.039
|
| 070. |
0302450510
|
[4] |
SCREW WITH WASHER
|
0.0044(lbs); 0.002
|
| 080. |
1G46005370
|
[1] |
SHIELD BREATHER
|
0.0440(lbs); 0.020
|
| 090. |
1686193310
|
[2] |
SCREW
|
0.0022(lbs); 0.001
|
| 100. |
1G96214520
|
[1] |
GASKET HEAD COVER
|
0.0154(lbs); 0.007
|
| 110. |
1G91191022
|
[6] |
BOLT
|
0.0330(lbs); 0.015
|
| 120. |
E915133140
|
[1] |
PLUG OIL FILLER
|
0.0374(lbs); 0.017
|
| 130. |
0481450300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
