约翰迪尔零件查询9500 - BACKHOE OIL LINES AND FITTINGS - BOOM, CROWD AND BUCKET CYLINDERS [C16]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 731 次

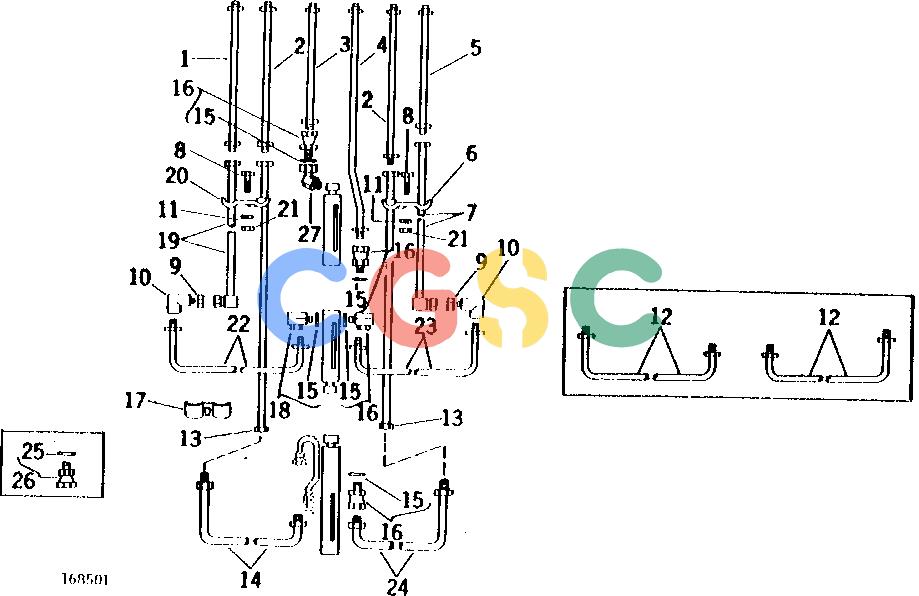

Pos.	Part No	Qty	Parts name	Comments
1.	AU40429	[1]	Hose	R.H. CROWD CYLINDER TUBE, 1 397 MM (1/2" X 55")
2.	TY3010	[2]	Hose	BUCKET TUBE, 1 168 MM (1/2" X 46") (SUB FOR AU13295)
3.	AT34934	[1]	Hose	BOOM CYLINDER, 2 159 MM LONG (1/2" X 85") (USE WITH AT32997)
3.	AU13294	[1]	Hose	BOOM CYLINDER ROD, 1 270 MM LONG (1/2" X 50") (USE WITH AR90447)
4.	TY3013	[1]	Hose	BOOM CYLINDER, 2 235 MM (1/2" X 88") (SUB FOR AU10852)
5.	AT33004	[1]	Hose	MANIFOLD BLOCK TO CROWD CYLINDER, 1 359 MM (1/2" X 53-1/2")
6.	U10737	[1]	Clamp	L.H.
7.	AU11679	[1]	Tube	(A) CROWD CYLINDER, L.H.
7.	AT64862	[1]	Oil Line	(B) CROWD CYLINDER, L.H.
8.	19H2633	[2]	Cap Screw	HS, SAE 8, 3/8" X 1-1/2"
9.	14H873	[2]	Nut	1-1/4"
10.	U16163	[2]	Elbow Fitting
11.	12H304	[2]	Lock Washer	3/8"
12.	AU10862	[2]	Hydraulic Hose - Fabricate	TUBES TO CROWD CYLINDER, 572 MM (1/2" X 22-1/2") (SUB AU10862 AND AU10861, THIS APPLICATION)
13.	AT33003	[2]	Oil Line	(A) BUCKET CYLINDER
13.	AT64860	[1]	Oil Line	(B) BUCKET, L.H.
13.	AT64861	[1]	Oil Line	(B) BUCKET, R.H.
14.	AU10810	[1]	Hose	TUBE TO BUCKET CYLINDER, 775 MM (1/2" X 30-1/2")
15.	R26906	[5]	O-Ring
16.	AU11753	[4]	Union Fitting	STRAIGHT
17.	U13055	[2]	Clamp
17.	28H2481	[2]	Spacer	3/8" X 1/2"
17.	19H3065	[2]	Cap Screw	3/8" X 2"
17.	12H304	[2]	Lock Washer	3/8"
18.	AU11752	[1]	Fitting	90°
19.	AU11678	[1]	Tube	(A) CROWD CYLINDER, R.H.
19.	AT64862	[1]	Oil Line	(B) CROWD CYLINDER, R.H.
20.	U10736	[1]	Clamp	R.H.
21.	14H812	[2]	Nut	3/8"
22.	AU10862	[1]	Hydraulic Hose - Fabricate	572 MM LONG (1/2" X 22-1/2")
23.	AU10861	[1]	Hose	864 MM LONG (1/2" X 34")
24.	AU10810	[1]	Hose	775 MM LONG (1/2" X 30-1/2") (USE WITH AT32774)
24.	AU13294	[1]	Hose	1 270 MM LONG (1/2" X 50") (USE WITH AR90635)
25.	R26906	[1]	O-Ring	(USED WITH AT32774)
26.	AU11753	[1]	Union Fitting	STRAIGHT (USE WITH AT32774)
27.	JD184	[1]	Elbow Fitting	45°, (USE WITH AR90447)
