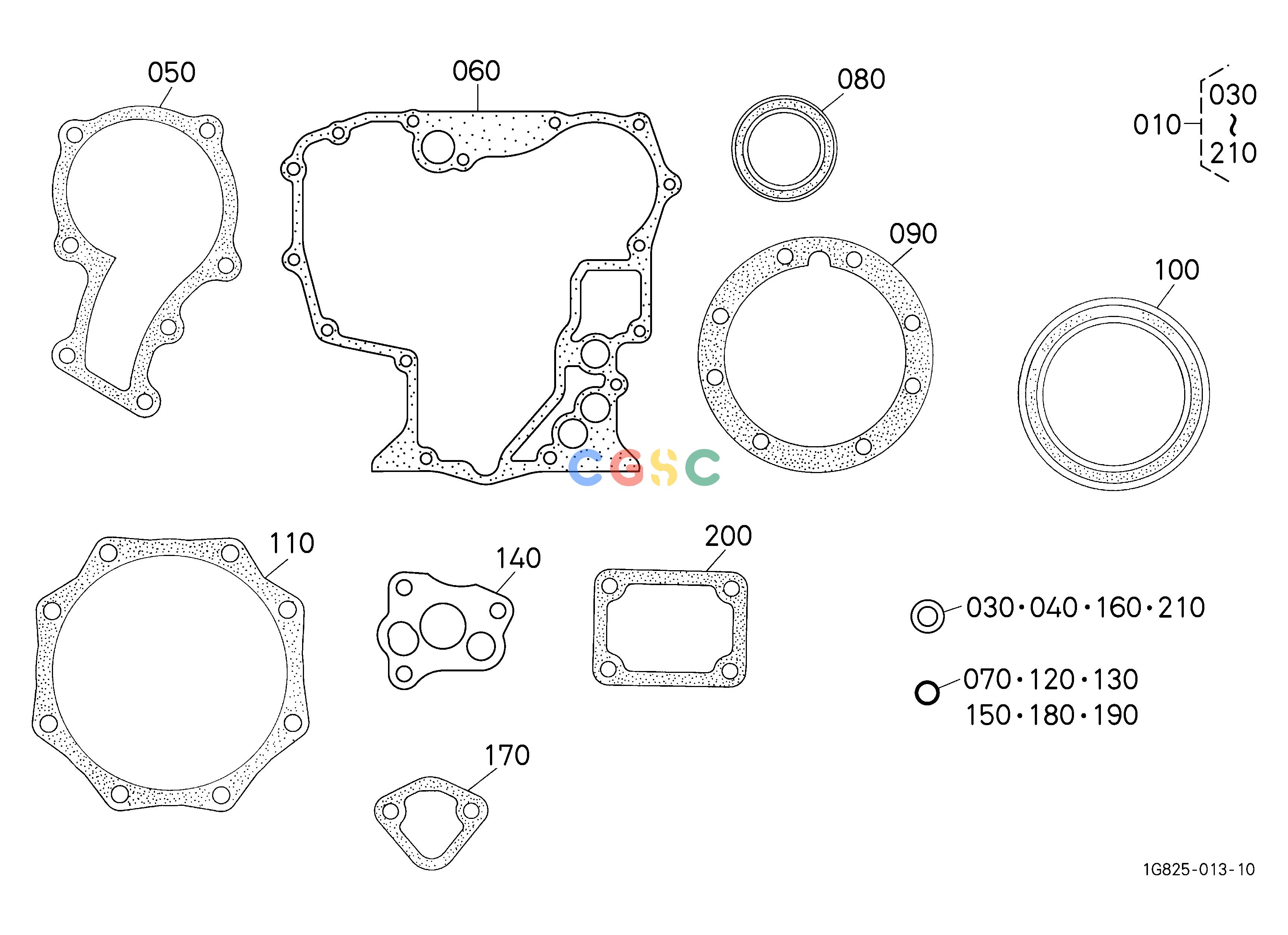

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 1G47099360 | [1] | KIT GASKET LOWER | ; <=4X4026 0.3872(lbs); 0.176 |
| 010. | 1G47099362 | [1] | KIT GASKET LOWER | ; =>4Y0001 3.3000(lbs); 1.500 |
| 010. | 1G47099363 | [1] | KIT GASKET LOWER | ; =>5N0653 3.3000(lbs); 1.500 |
| 010. | 1G47099364 | [1] | KIT GASKET LOWER | ; =>5W0751 3.3000(lbs); 1.500 |
| 030. | 0472400130 | [1] | GASKET | 0.0066(lbs); 0.003 |
| 040. | 6C09058960 | [1] | GASKET | 0.0110(lbs); 0.005 |
| 050. | 1588173432 | [1] | GASKET WATER PUMP NA | 0.0044(lbs); 0.002 |
| 060. | 1G46004132 | [1] | GASKET GEAR CASE | ; <=4X4026 0.0220(lbs); 0.010 |
| 060. | 1E12504130 | [1] | GASKET GEAR CASE | ; =>4Y0001 0.0198(lbs); 0.009 |
| 070. | 0481406130 | [3] | O RING | 0.0022(lbs); 0.001 |
| 080. | 1587704140 | [1] | SEAL OIL | 0.0242(lbs); 0.011 |
| 090. | 1585204360 | [1] | GASKET BRG.CASE | ; =>4Y0001 0.0110(lbs); 0.005 |
| 090. | 1G96004360 | [1] | GASKET BEARING CASE | ; =>4N0001 0.0220(lbs); 0.010 |
| 100. | 1G46004460 | [1] | SEAL OIL | 0.0704(lbs); 0.032 |
| 110. | 1584104822 | [1] | GASKET | 0.0088(lbs); 0.004 |
| 120. | 0481416220 | [1] | O RING | 0.0022(lbs); 0.001 |
| 130. | 0481400160 | [1] | O RING | 0.0022(lbs); 0.001 |
| 140. | 1685135152 | [1] | GASKET OIL PUMP NA | 0.0022(lbs); 0.001 |
| 150. | 0481400090 | [1] | O RING | ; =>5N0653 0.0022(lbs); 0.001 |
| 160. | 1560196650 | [1] | GASKET | 0.0022(lbs); 0.001 |
| 170. | 1626452140 | [1] | GASKET FUEL PUMP | 0.0022(lbs); 0.001 |
| 180. | 0481410160 | [1] | O RING | 0.0022(lbs); 0.001 |
| 190. | 0481410070 | [1] | O RING | 0.0022(lbs); 0.001 |
| 200. | 1584157212 | [1] | GASKET CONTROL PLATE | 0.0022(lbs); 0.001 |
| 210. | 1560196650 | [2] | GASKET | 0.0022(lbs); 0.001 |
