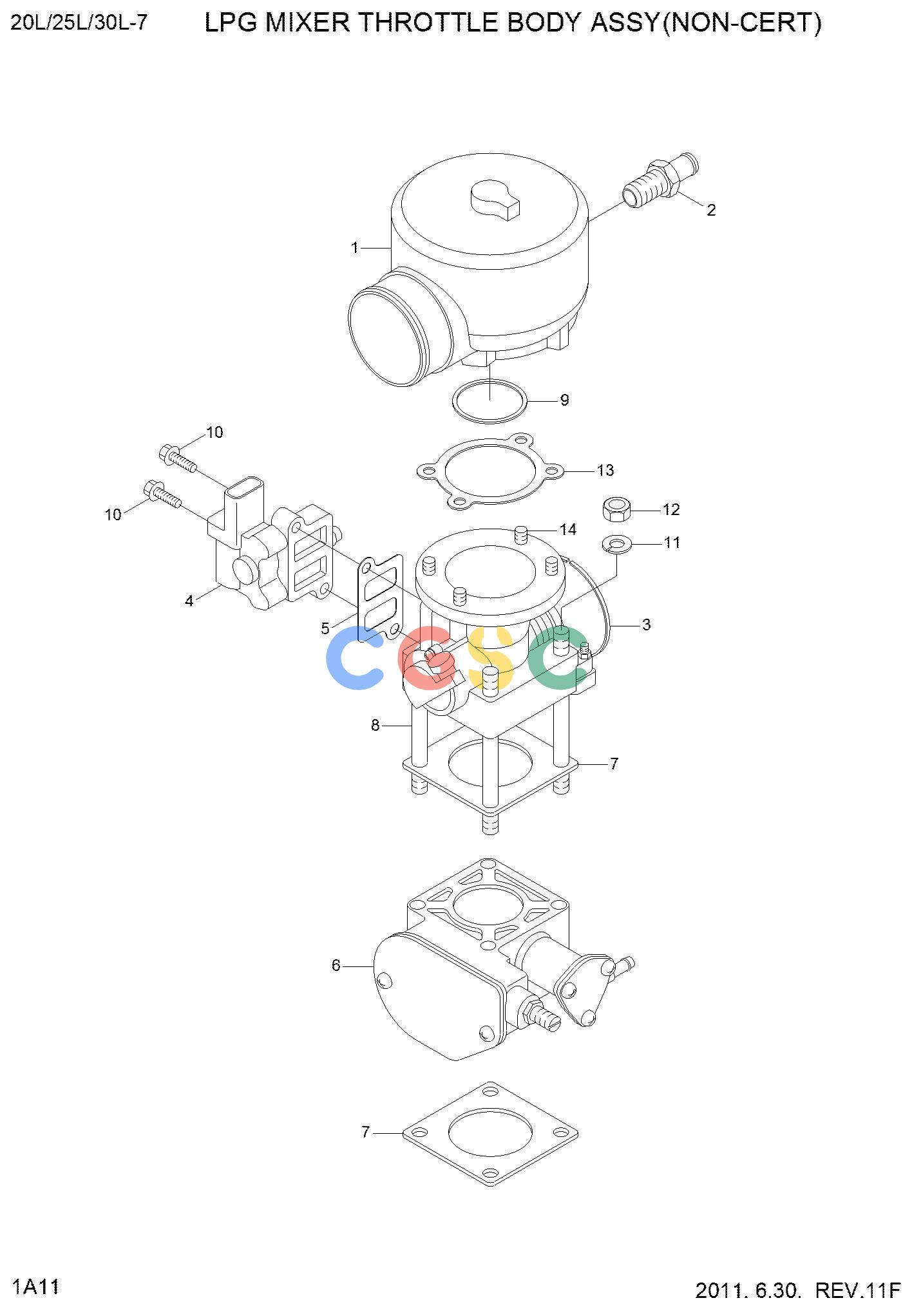

现代零件查询20/25/30G-7 LPG MIXER THROTTLE BODY ASSY(NON-CERT)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
251 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
CA-100M-3
|
[1] |
MIXER CA-100M-3 ASSY
|
|
| 1-1. |
D1-17
|
[1] |
DIAPHRAGM
|
|
| 1-2. |
AV1-14-2
|
[1] |
REPAIR KIT-CA100M
|
|
| 2. |
54SB
|
[2] |
FITTING STRAIGHT
|
|
| 3. |
E7220100
|
[1] |
THROTTLE BODY
|
|
| 4. |
35150-25700
|
[1] |
ISCA
|
|
| 5. |
35156-23700
|
[1] |
GASCKET
|
|
| 6. |
E7230100
|
[1] |
AIR GOVERNOR
|
|
| 6-1. |
11HF-50690
|
[1] |
PLATE-SPRING ASSEMBLY
|
|
| 7. |
32500782
|
[4] |
GASKET-AIR GOVERNOR
|
|
| 8. |
ST0685
|
[4] |
STUD BOLT
|
|
| 9. |
R1-29
|
[1] |
RING-AIR VALVE SPACER
|
|
| 10. |
M0615
|
[1] |
BOLT
|
|
| 11. |
SW06
|
[1] |
WASHER-SPRING
|
|
| 12. |
NT06
|
[1] |
NUT
|
|
| 13. |
G1-11
|
[1] |
GASKET-MIXER/ADAP
|
|
| 14. |
S1-19
|
[AR] |
SCREW
|
|
