约翰迪尔零件查询110 - BACKHOE, LOADER Swing Cylinder (108575 - )EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 465 次

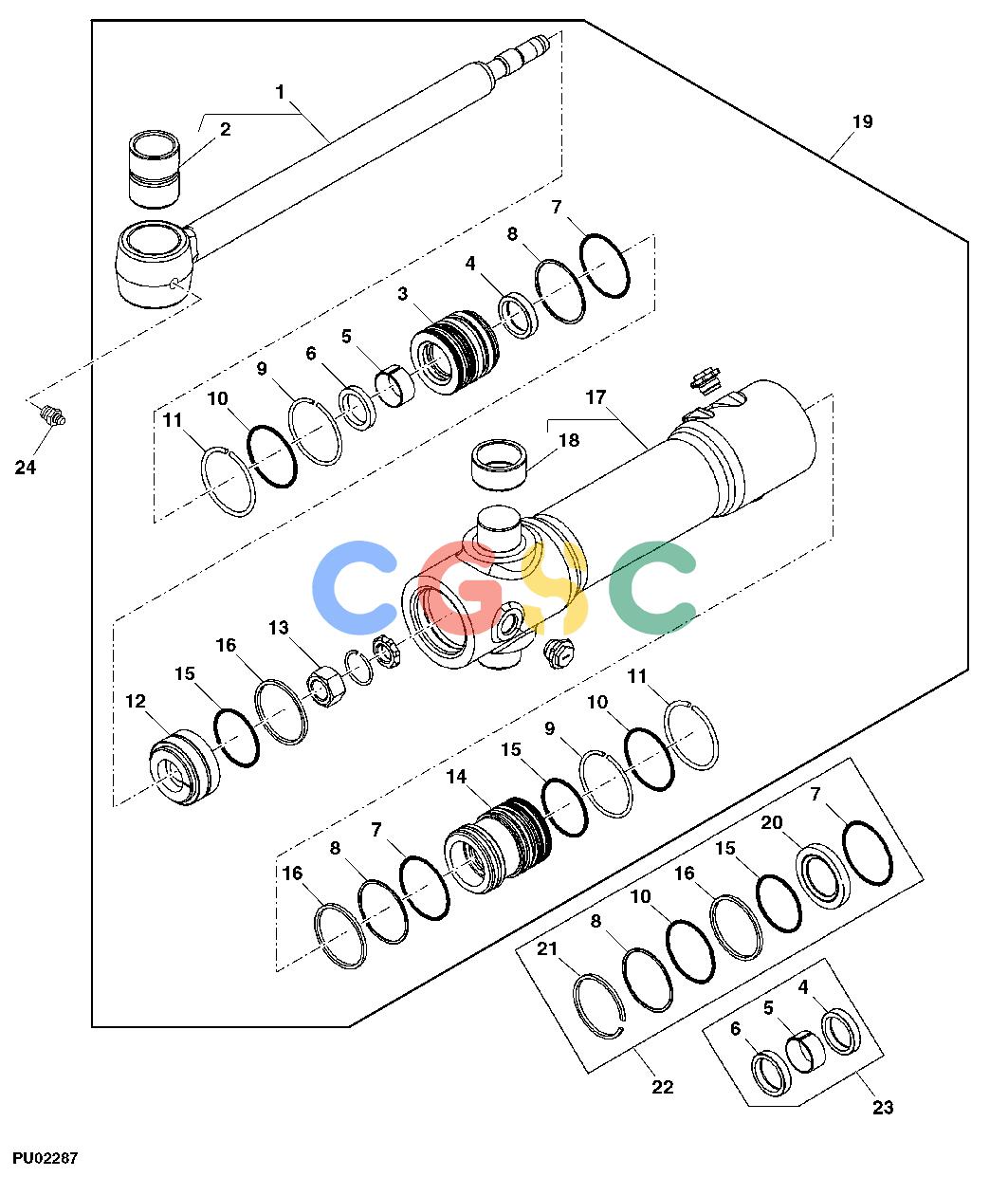

Pos.	Part No	Qty	Parts name	Comments
1.	AH175433	[1]	Hydraulic Cylinder Rod
2.	R89938	[1]	Bushing
3.	H210874	[1]	Hydr. Cylinder Rod Guide
4.	H154514	[1]	Seal	(B)
5.	H156058	[1]	Wear Ring	(B)
6.	H156586	[1]	Seal	(B)
7.	R93633	[2]	O-Ring	(A)
8.	U13461	[2]	Back-Up Ring	(A)
9.	H164982	[2]	Snap Ring
10.	H63262	[2]	O-Ring	(A)
11.	H211156	[2]	Snap Ring
12.	AH142159	[1]	Piston
13.	H170535	[1]	Nut
14.	H215492	[1]	Hydraulic Cylinder Cap
15.	U40708	[2]	O-Ring	(A)
16.	R90237	[2]	Ring	(A)
17.	........	[1]	Hydraulic Cylinder Barrel	(ORDER AH233983 ) (SUB FOR AH215008 OR AH214451)
17.	........	[1]	Hydraulic Cylinder Barrel	(ORDER AH233984 ) (SUB FOR AH216868 OR AH214937)
18.	H180309	[2]	Bushing
19.	AH233983	[1]	Hydraulic Cylinder	(LH) (SUB FOR AH214451)
19.	AH233984	[1]	Hydraulic Cylinder	(RH) (SUB FOR AH214937)
20.	N260556	[1]	O-Ring	(A)
21.	R91727	[1]	Ring	(A)
22.	AH212088	[1]	Hydraulic Cylinder Kit	SEAL (INCLUDES PARTS MARKED (A))
23.	AH149817	[1]	Hydraulic Cylinder Kit	ROD SEAL (INCLUDES PARTS MARKED (B))
24.	T162396	[1]	Lubrication Fitting
